About Your Monitor | 21

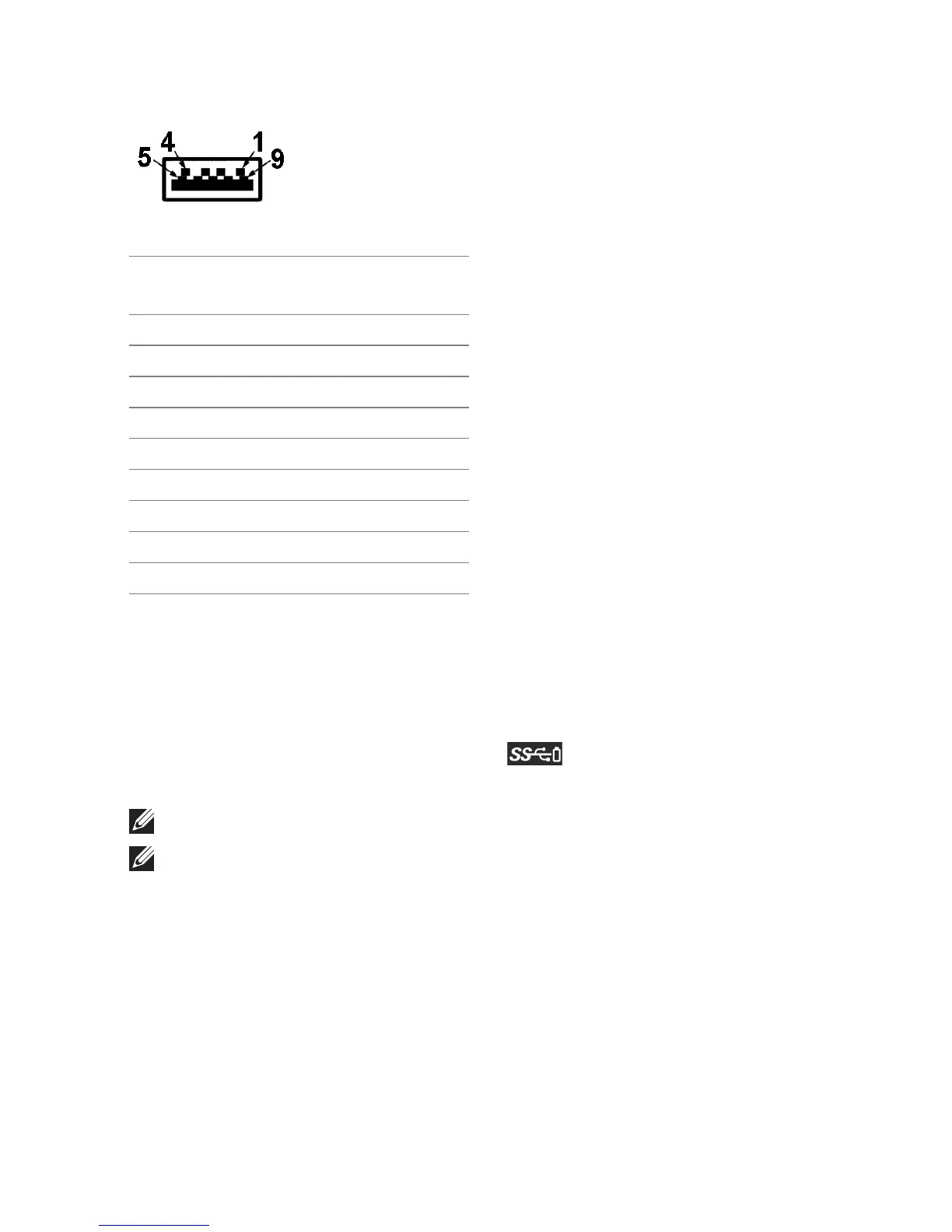

USB Downstream Connector
Pin
Number
9-pin Side of the
Connector
1 VCC
2 D-
3 D+
4 GND
5 SSRX-
6 SSRX+
7 GND
8 SSTX-
9 SSTX+
USB Ports
•1 upstream - rear
• 2 downstream - rear
• 2 downstream - bottom
• Power Charging Port- the port with
battery icon; supports fast
current charging capability if the device is BC1.2 compatible.
NOTE: USB 3.0 functionality requires a USB 3.0-capable computer.
NOTE: The monitor's USB interface works only when the monitor is On or
in the power save mode. If you turn Off the monitor and then turn it On,
the attached peripherals may take a few seconds to resume normal
functionality.
