Alienware m15 R7

● NVIDIA GeForce 3070 Ti
● NVIDIA GeForce 3080 Ti

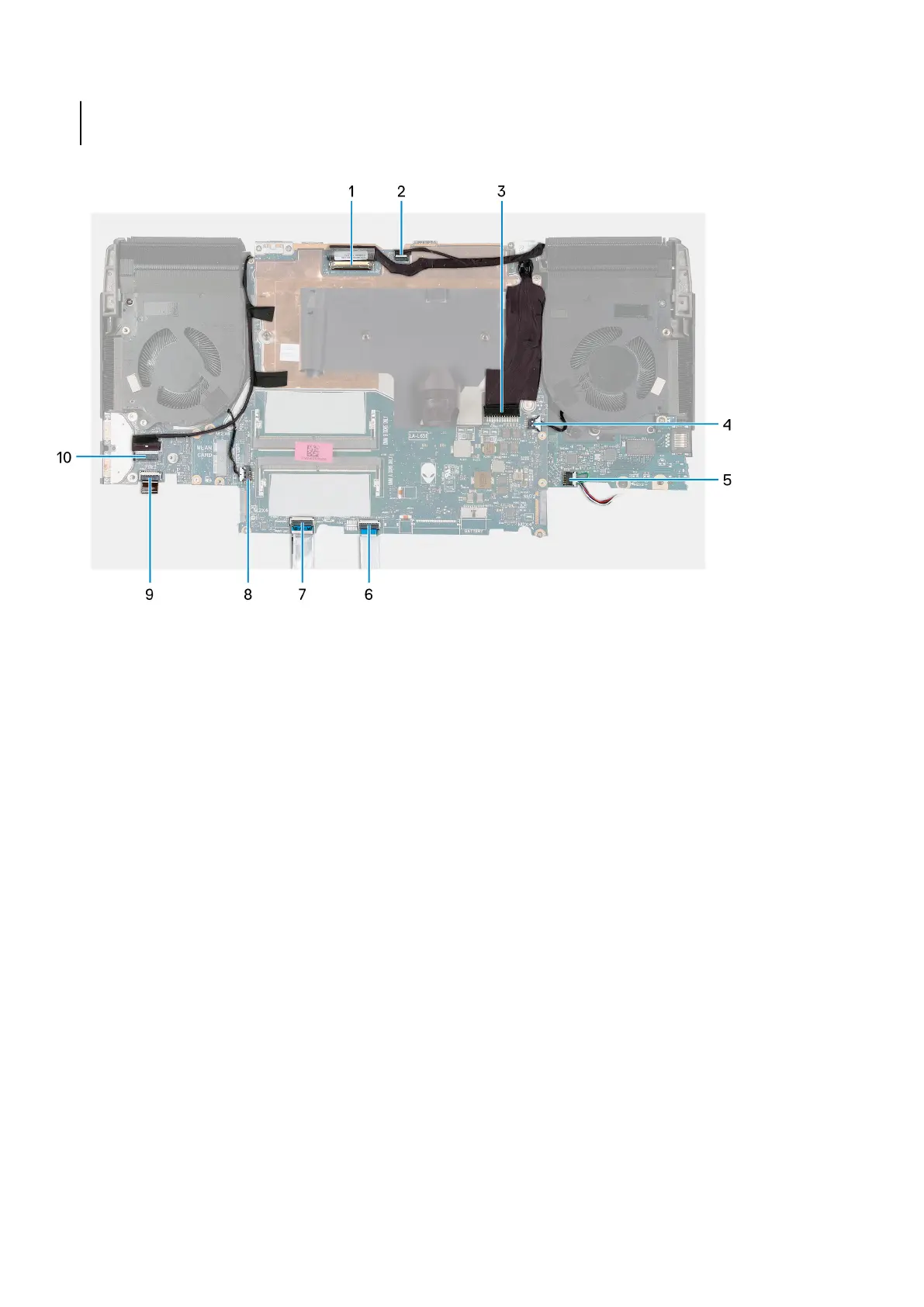

The following image indicates the connectors on your system board.
1. Display cable
2. Alien head LED-cable
3. Power-adapter cable
4. Right-fan cable
5. Speaker cable
6. Touchpad cable
7. Keyboard-controller board cable
8. Left-fan cable
9. Power-button cable
10.Camera cable
The following image(s) indicate the location of the system board and provides a visual representation of the installation procedure.
