Alienware x15 R1 User Manual

Steps
1. Remove the four screws (M2.5x7) that secure the base cover to the palm-rest and keyboard assembly.
2. Loosen the two captive screws (M2.5x7) that secure the base cover to the palm-rest and keyboard assembly.
3. Using a plastic scribe, pry the base cover from the gap created after loosening the captive screws in the bottom left or right and
continue to work on the sides to open the base cover.
4. Lift and slide the base cover off the palm-rest and keyboard assembly.
5. Disconnect the battery cable from the system board.

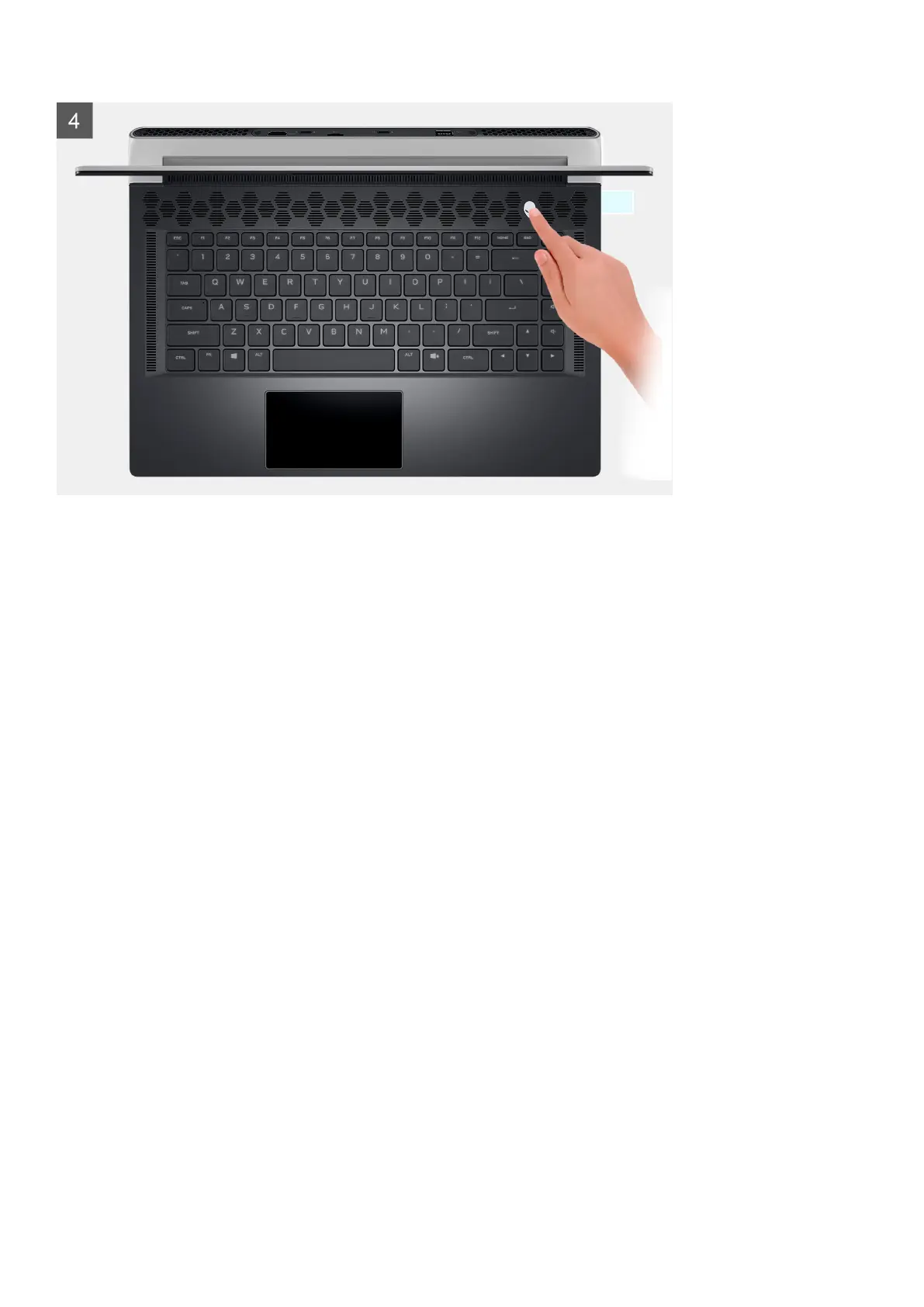

6. Press and hold the power button for 20 seconds to ground the computer and drain the flea power.
Installing the base cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the base cover and provides a visual representation of the installation procedure.
14

Alienware x15 R1 Specifications

General

Processor	Up to 11th Gen Intel Core i9-11900H
Graphics	Up to NVIDIA GeForce RTX 3080 8GB GDDR6
Display	15.6-inch FHD (1920 x 1080) 165Hz
RAM	Up to 32GB DDR4 3200MHz
Storage	Up to 2TB PCIe M.2 SSD
Operating System	Windows 10 Home, Windows 10 Pro
Battery	6-Cell, 87 WHr Lithium Ion
Weight	2.36 kg (5.2 lbs)
Ports	1 x HDMI 2.1, 3 x USB 3.2 Gen 1 Type-A, 1 x Thunderbolt 4, 1 x MicroSD card reader
Wireless	Killer Wi-Fi 6 AX1650 and Bluetooth 5.2
