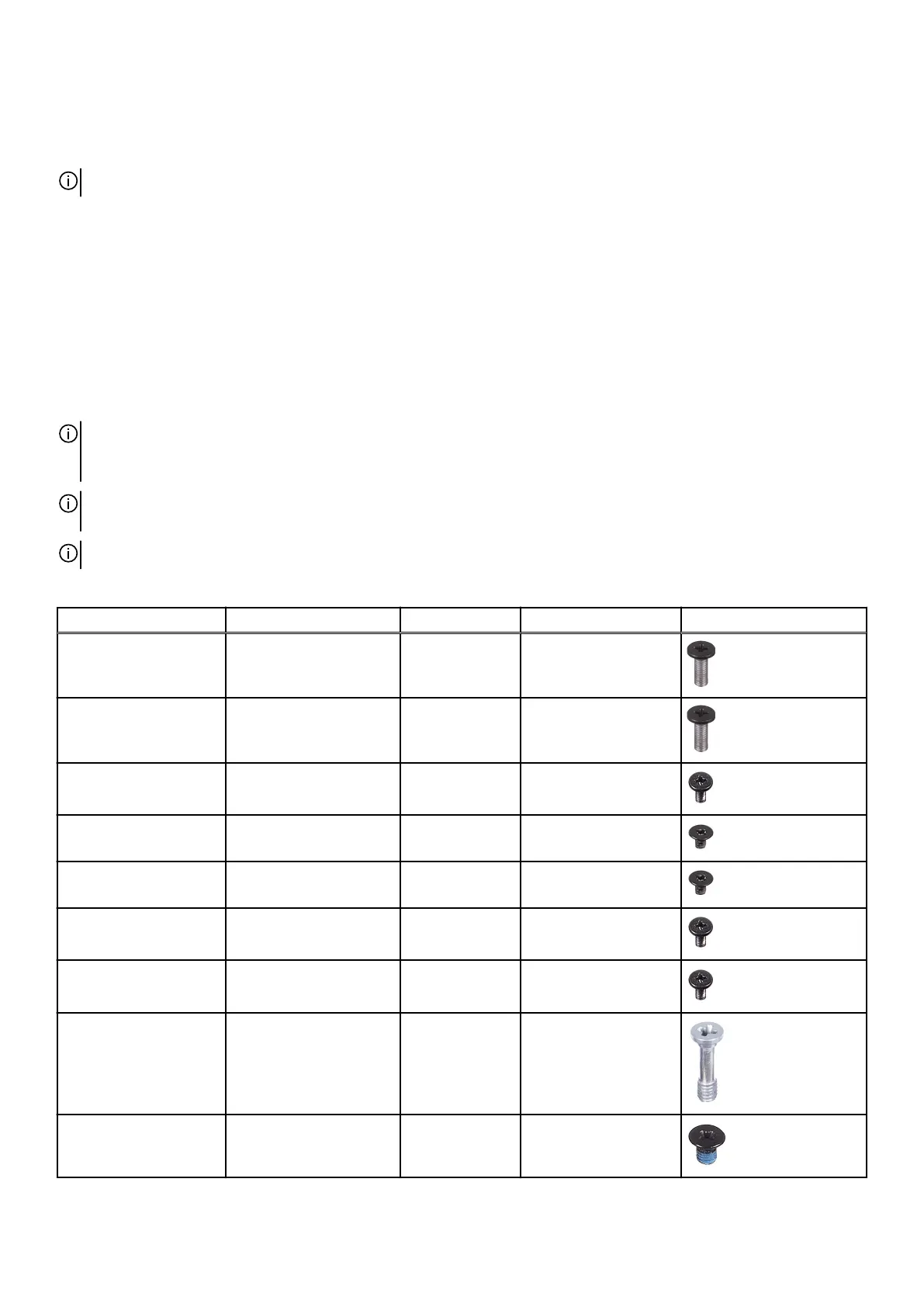

Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
Phillips screwdriver #0
Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then
place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is restored when
the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when replacing a
component.
NOTE: Screw color may vary with the configuration ordered.
Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Base cover Palm-rest and antenna
assembly
M2.5x7 4
Base cover Palm-rest and antenna
assembly
M2.5x7 (Captive
screw)
2
Battery Palm-rest and antenna
assembly
M2x4 4
Wireless-card bracket Wireless card and palm-
rest and antenna assembly
M2x3 1
Solid-state drive thermal
shield
Palm-rest and antenna
assembly
M2x3 1
Solid-state drive bracket Palm-rest and antenna
assembly
M2x4 1
Fan Palm-rest and antenna
assembly
M2x4 6
Rear I/O cover Palm-rest and antenna
assembly
M2.5x9 2
Power-adapter port
bracket
Palm-rest and antenna
assembly
M2.5x3.5 2
9
