Alienware x15 R1

Steps

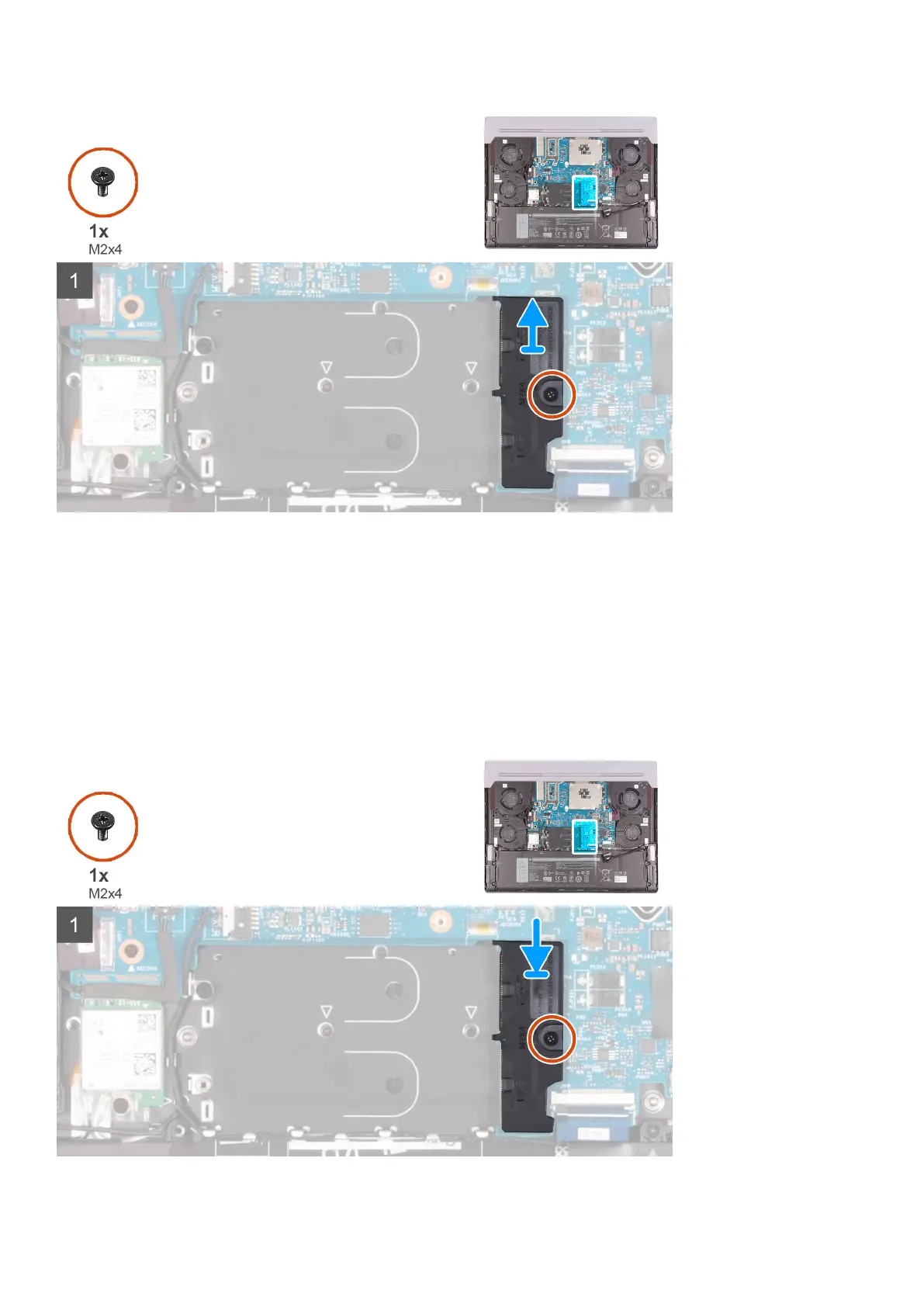

1. Remove the screw (M2x4) that secures the solid-state drive bracket to the palm-rest and keyboard assembly.
2. Lift the solid-state drive bracket off the palm-rest and keyboard assembly.
Installing the solid-state drive bracket
About this task
The following image(s) indicate the location of the solid-state drive bracket and provides a visual representation of the installation
procedure.
25
