Alienware x15 R1 User Manual

Steps

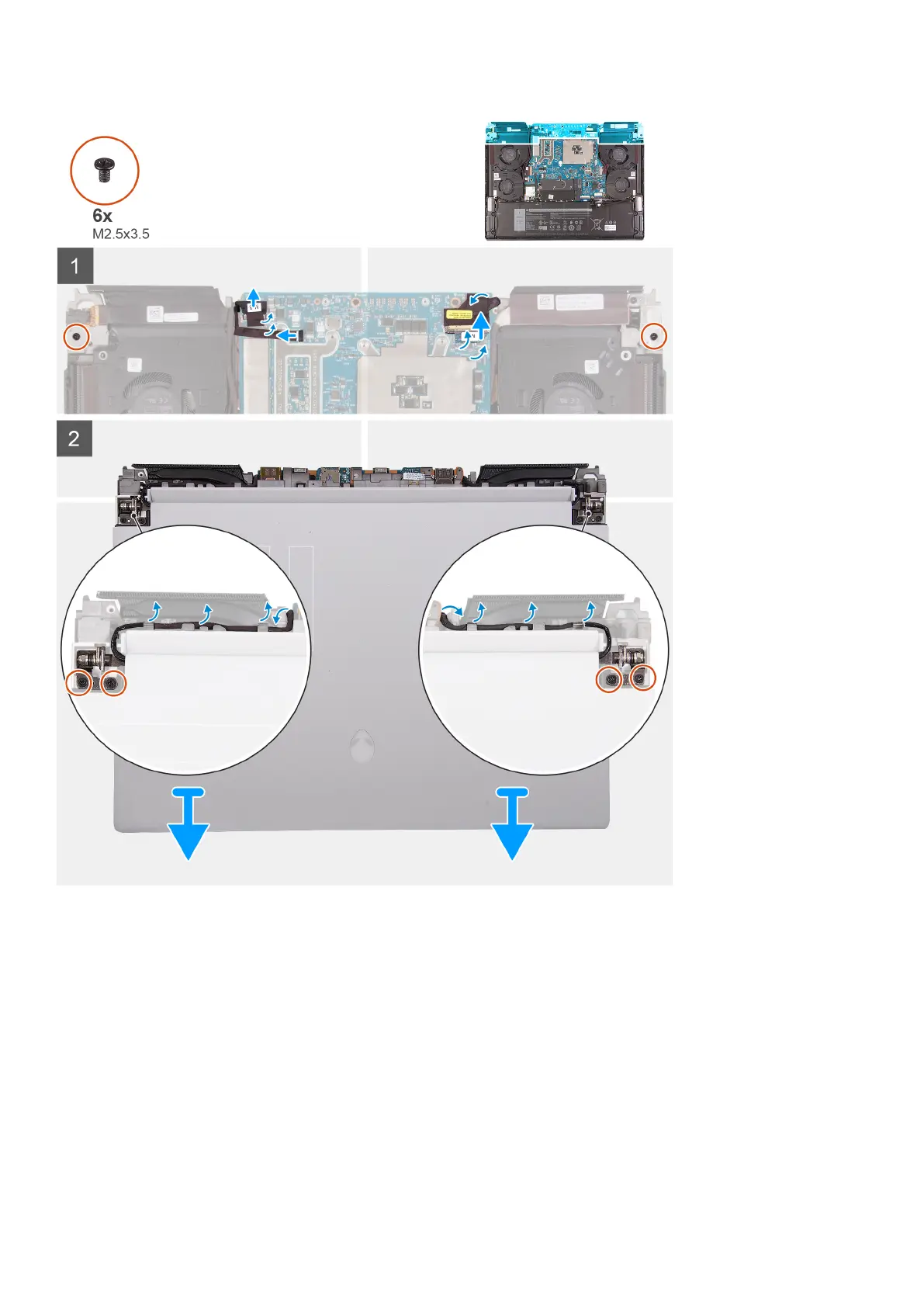

1. Peel the tape that secures the camera cable to the system board and disconnect the camera cable from the system board.
2. Disconnect the Alien head LED cable from the system board and peel the Alien head LED cable from the system board.
3. Peel the tape that secures the display cable to the system board.
4. Open the latch and disconnect the display cable from the system board and peel the display cable off the system board.
5. Turn the computer over.
6. Remove the six screws (M2.5x3.5) that secure the display assembly to the palm-rest and keyboard assembly.
7. Remove the display cable from the slot on the palm-rest and keyboard assembly and remove it from the routing guides on the
palm-rest and keyboard assembly.
8. Remove the camera cable and the Alien head LED cable from the slot on the palm-rest and keyboard assembly and remove it
from the routing guides on the palm-rest and keyboard assembly.
9. Slide the display assembly off the palm-rest and keyboard assembly.
10.After performing the steps above, you are left with the display assembly.
37

Alienware x15 R1 Specifications

General

Processor	Up to 11th Gen Intel Core i9-11900H
Graphics	Up to NVIDIA GeForce RTX 3080 8GB GDDR6
Display	15.6-inch FHD (1920 x 1080) 165Hz
RAM	Up to 32GB DDR4 3200MHz
Storage	Up to 2TB PCIe M.2 SSD
Operating System	Windows 10 Home, Windows 10 Pro
Battery	6-Cell, 87 WHr Lithium Ion
Weight	2.36 kg (5.2 lbs)
Ports	1 x HDMI 2.1, 3 x USB 3.2 Gen 1 Type-A, 1 x Thunderbolt 4, 1 x MicroSD card reader
Wireless	Killer Wi-Fi 6 AX1650 and Bluetooth 5.2
