Alienware x15 R1 User Manual

Steps

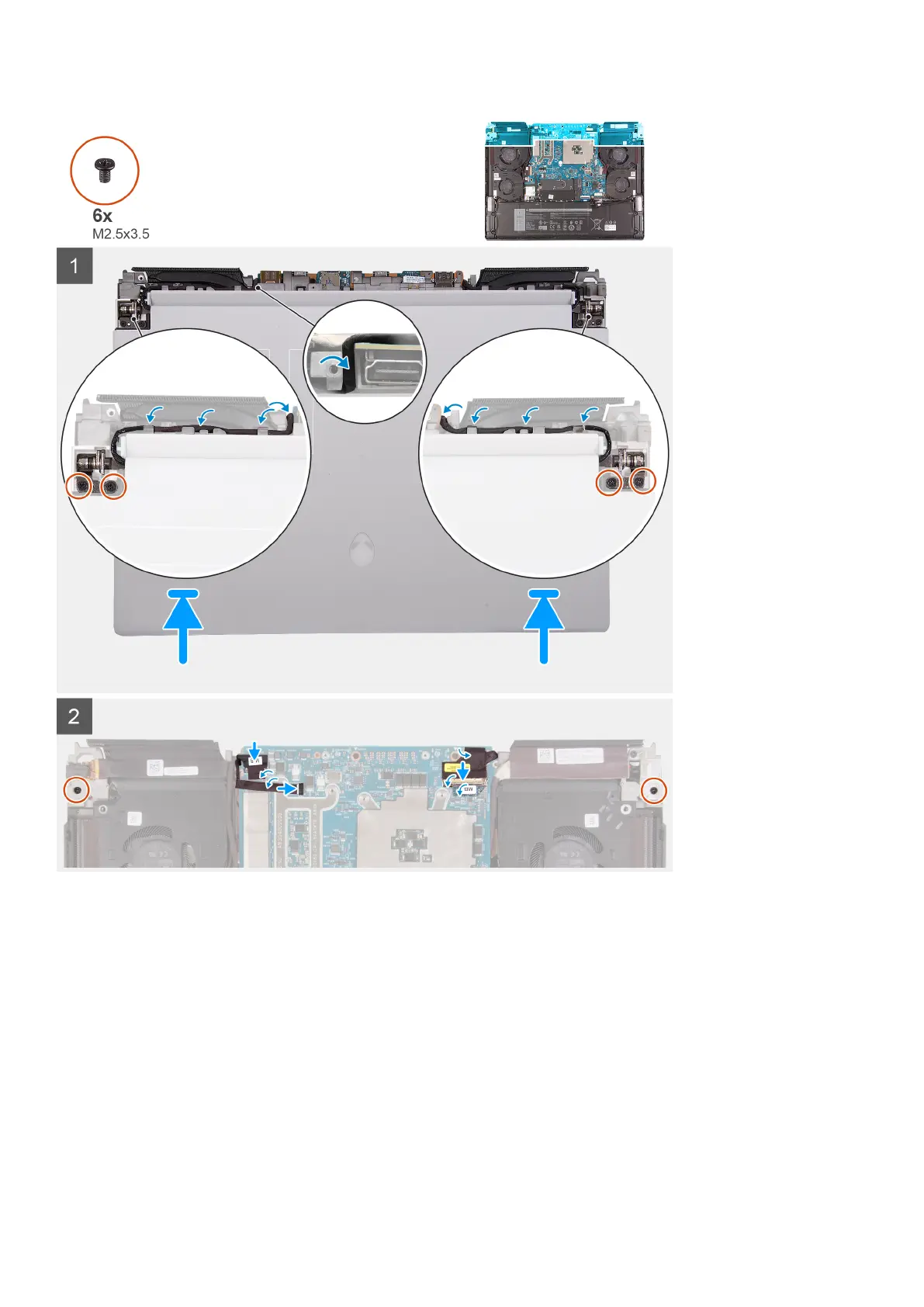

1. Gently slide and place the display assembly on the palm-rest and keyboard assembly.
2. Align the screw holes on the display assembly with the screw holes on the palm-rest and keyboard assembly.
3. Replace the six screws (M2.5x3.5) that secure the display assembly to the palm-rest and keyboard assembly.
4. Route the camera cable and the Alien head LED cable through the routing guides on the palm-rest and keyboard assembly and
route it through the slot on the palm-rest and keyboard assembly.
5. Route the display cable through the routing guides on the palm-rest and keyboard assembly and route it through the slot on the
palm-rest and keyboard assembly.
6. Turn the computer over.
7. Adhere the display cable to the system board.
8. Connect the display cable to the connector on the system board and close the latch to secure the cable.
9. Adhere the tape that secures the display cable to the system board.
10.Adhere the Alien head LED cable to the system board and connect the Alien head LED cable to the system board.
11. Connect the camera cable to the system board and adhere the tape that secures the camera cable to the system board.
39

Alienware x15 R1 Specifications

General

Processor	Up to 11th Gen Intel Core i9-11900H
Graphics	Up to NVIDIA GeForce RTX 3080 8GB GDDR6
Display	15.6-inch FHD (1920 x 1080) 165Hz
RAM	Up to 32GB DDR4 3200MHz
Storage	Up to 2TB PCIe M.2 SSD
Operating System	Windows 10 Home, Windows 10 Pro
Battery	6-Cell, 87 WHr Lithium Ion
Weight	2.36 kg (5.2 lbs)
Ports	1 x HDMI 2.1, 3 x USB 3.2 Gen 1 Type-A, 1 x Thunderbolt 4, 1 x MicroSD card reader
Wireless	Killer Wi-Fi 6 AX1650 and Bluetooth 5.2
