Alienware x15 R1 User Manual

Installing the touchpad
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

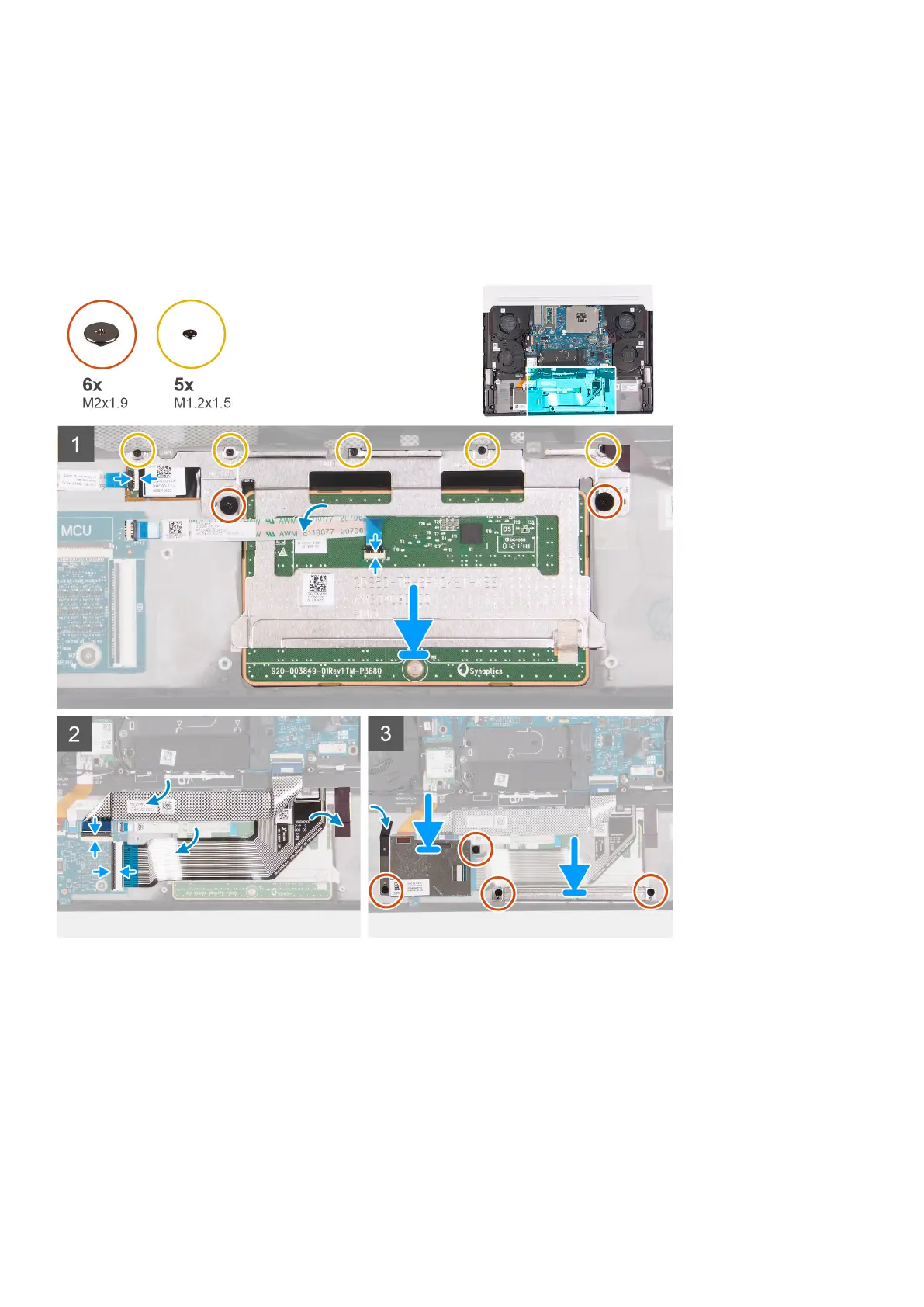

The following image(s) indicate the location of the touchpad and provides a visual representation of the installation procedure.
Steps
1. Align and place the touchpad into the slot on the palm-rest and keyboard assembly.
43

Alienware x15 R1 Specifications

General

Processor	Up to 11th Gen Intel Core i9-11900H
Graphics	Up to NVIDIA GeForce RTX 3080 8GB GDDR6
Display	15.6-inch FHD (1920 x 1080) 165Hz
RAM	Up to 32GB DDR4 3200MHz
Storage	Up to 2TB PCIe M.2 SSD
Operating System	Windows 10 Home, Windows 10 Pro
Battery	6-Cell, 87 WHr Lithium Ion
Weight	2.36 kg (5.2 lbs)
Ports	1 x HDMI 2.1, 3 x USB 3.2 Gen 1 Type-A, 1 x Thunderbolt 4, 1 x MicroSD card reader
Wireless	Killer Wi-Fi 6 AX1650 and Bluetooth 5.2
