Steps

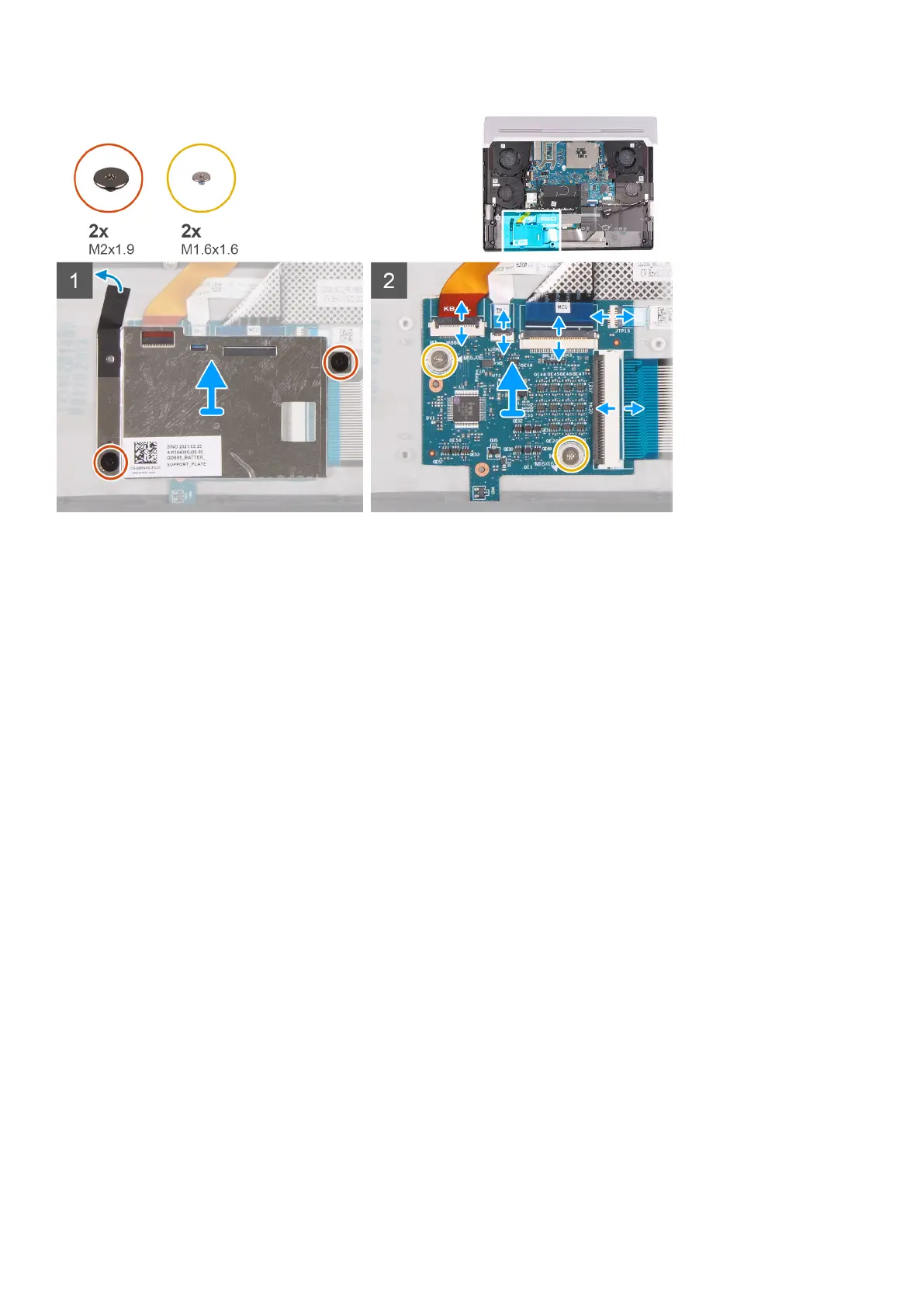

1. Remove the two screws (M2x1.9) that secure the keyboard-controller board bracket to the palm-rest and keyboard assembly.
2. Peel the tape that secures the keyboard-controller board bracket to the palm-rest and keyboard assembly.
3. Lift the keyboard-controller board bracket off the keyboard-controller board.
4. Open the latch and disconnect the keyboard-backlight cable from the keyboard-controller board.
5. Open the latch and disconnect the touchpad light cable from the keyboard-controller board.
6. Open the latch and disconnect the keyboard-controller board cable from the keyboard-controller board.
7. Open the latch and disconnect the touchpad cable from the keyboard-controller board.
8. Open the latch and disconnect the keyboard cable from the keyboard-controller board.
9. Remove the two screws (M1.6x1.6) that secure the keyboard-controller board to the palm-rest and keyboard assembly.
10.Lift the keyboard-controller board off the palm-rest and keyboard assembly.
Installing the keyboard-controller board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the keyboard-controller board and provides a visual representation of the installation
procedure.
45
