Alienware x15 R1

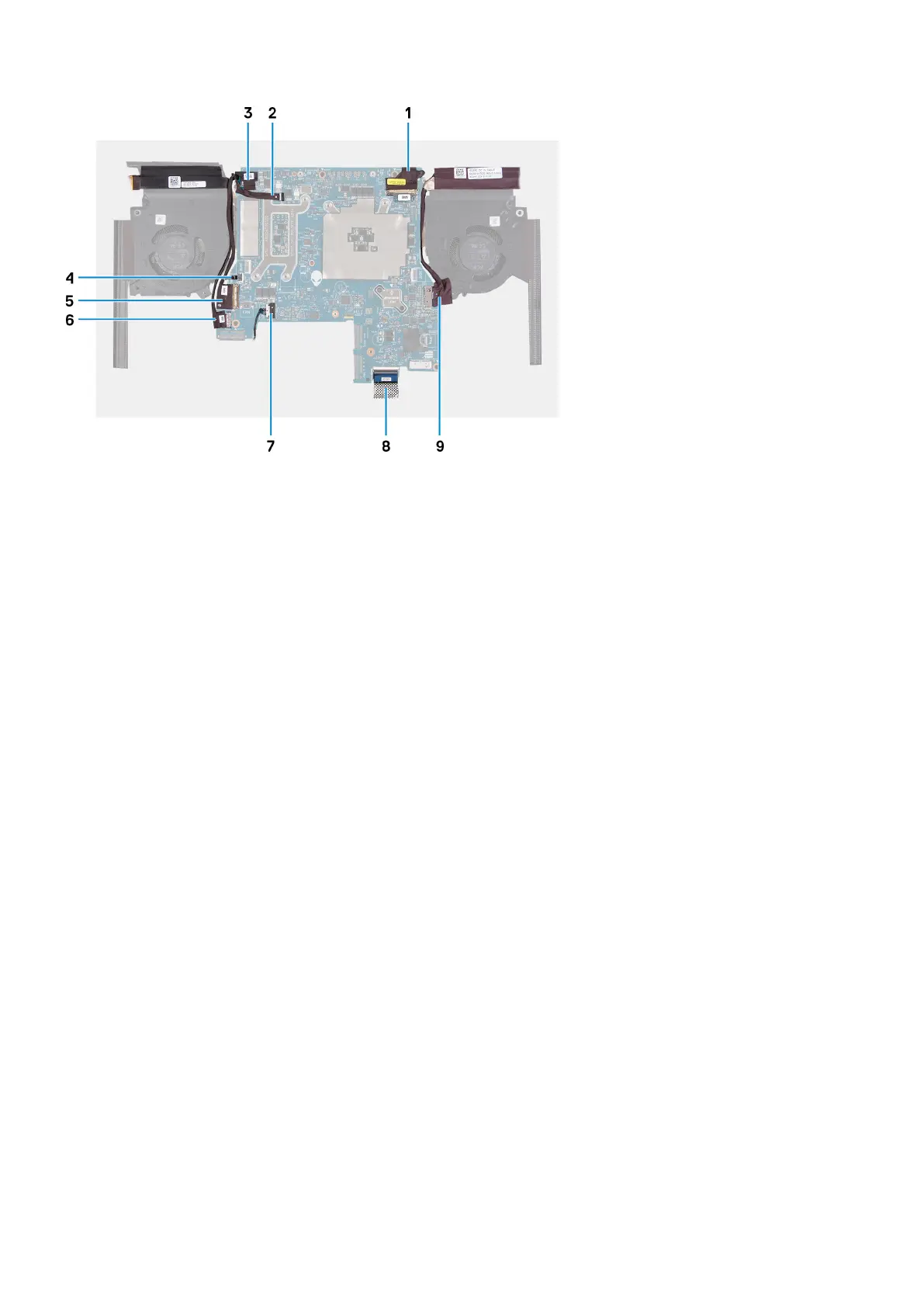

1. Display cable 2. Alien head LED cable
3. Camera cable 4. Power-button cable
5. I/O-board cable 6. Headset port cable
7. Speaker cable 8. Keyboard-controller board cable
9. Power-adapter port cable
The following image(s) indicate the location of the system board and provides a visual representation of the installation procedure.
50
