ALLEN & HEATH 14:4:2 MixWizard WZ3

Kernick Industrial Estate,
Penryn, Cornwall,
England. TR10 9LU
+44 (0)8707 556250
+44 (0)8707 556251
1

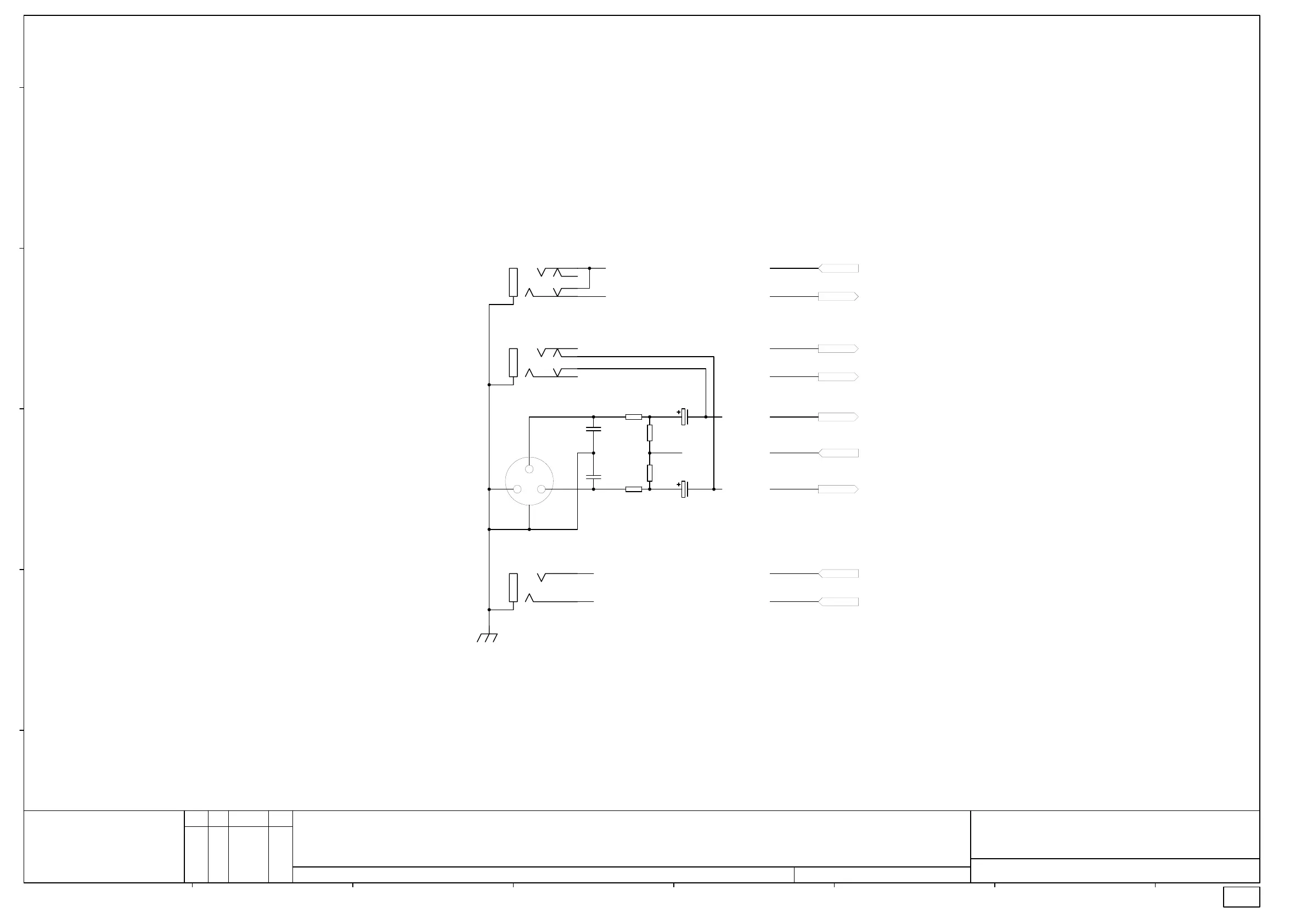

WZ³14:4:2 CONNECTOR
C5399 2 14
PAGE:
TITLE:
DRG No: ISSUE: SHEET: OF
ISSUE BY DATE
FILE: C5399_1 CH1.Sch 16:55:33 5-Nov-2004
ALLEN&HEATH
Tel:
Fax:
PRINTED:
ABCDEFGH
a
b
c
d
e
CHK
BY
3
1 2
0
CN103
XLR NC3FAV20
T
R
CN102
JACK V3M
T
R
CN101
JACK V5M
C103
47/63
C102
47/63
R100
6K8 1%
R101
6K8 1%
LINE+
LINE-
MIC+
MIC-
+48V_SW
DIR_OUT+
DIR_OUT-
T
R
CN100
JACK V5M
INSEND
INSRET
L100
TCW
L101
TCW
C100
15P/DISK
C101
15P/DISK
MIC-
+48V_SW
MIC+
DIR_OUT+
DIR_OUT-
LINE-
LINE+
INSRET
INSEND
LINE+
LINE-
MIC+
MIC-
+48V_SW
DIR_OUT+
DIR_OUT-
INSEND
INSRET
A AAT XXX
CH1 CONNS
26-09-03
1 AAT XXX28-01-04
003-209 iss.1
