WZ
3
14:4:2 V2, V1 SYSLINK Cross talk
ECN No: 1066
Assembly No(s): 003-261 iss.1
Date: September 7
th
2004
Reason: When connecting SYSLINK V2 to SYSLINK V1 cross talk is
being picked up on the group inputs.
Details of change:
Assy 003-261, PCB AG5619 iss.1
Hand mod for existing PCBs: Pins 13 and 14 on CN3 need to be taken to GND
with wire link
Hand mod for existing PCBs: Pins 5 and 24 on CN2 need to be taken to GND
Issue 2 PCB to incorporate these changes with no modification needed.

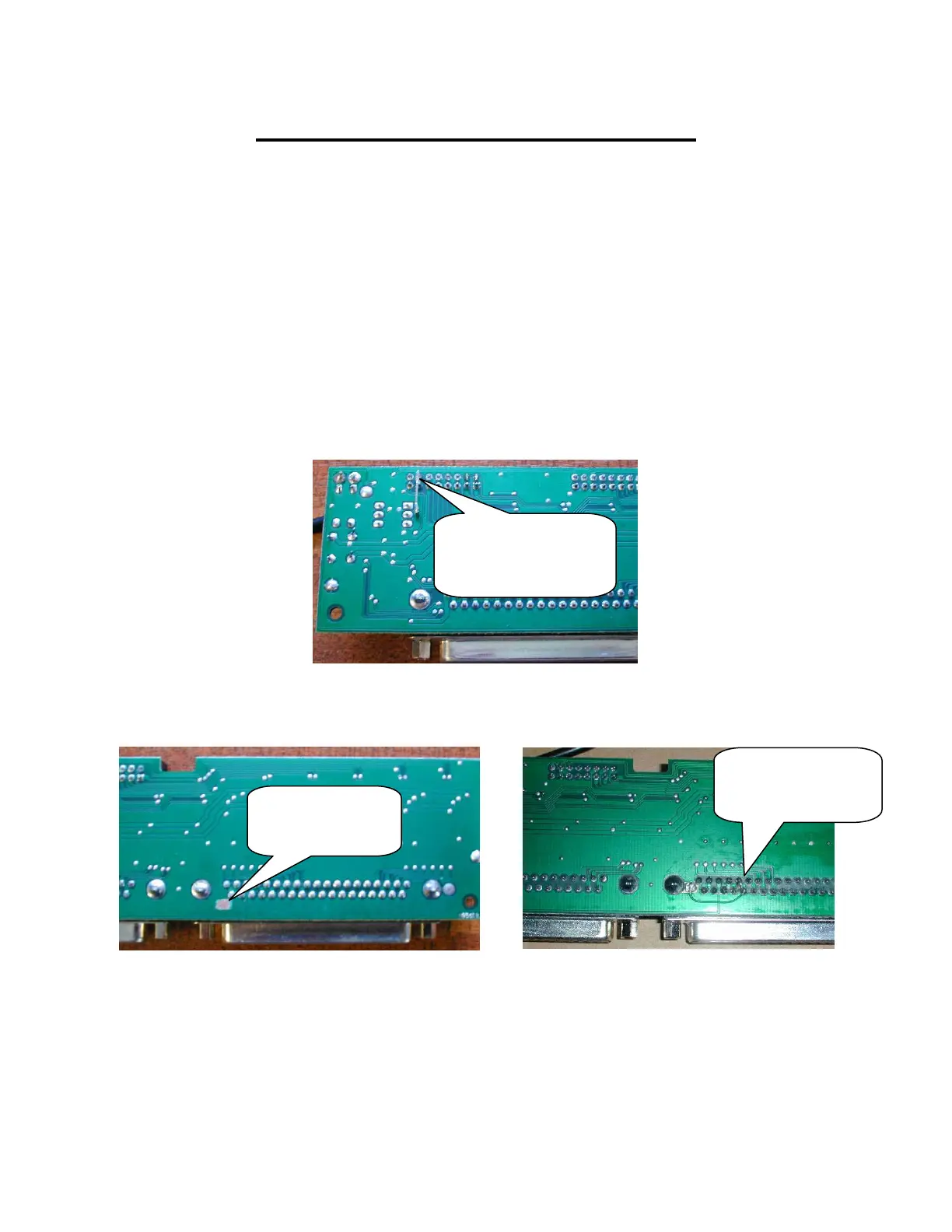

SOLDER WIRE LINK
TO PINS 13,14 CN3
TO AGND
SCRAPE AWAY
SOLDER RESIST
FROM GND
SOLDER REPAIR
WIRE TO PINS
5, 24 TO GND
