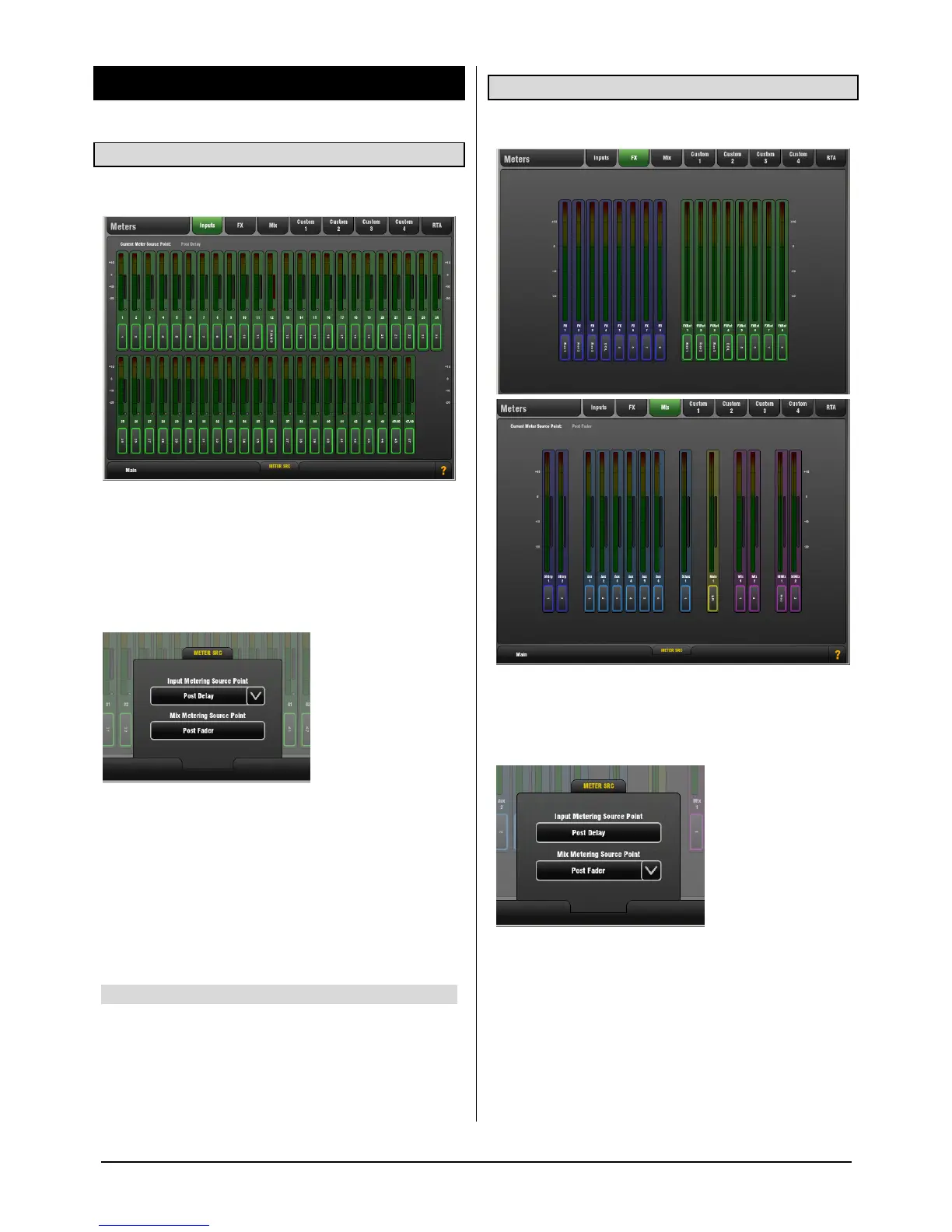

4. Meters Screen
4.1 Input Meters page
Meters for all 48 Input Channels are displayed on this page.
Channel Name and Colour is shown below each meter.
The Compressor Gain Reduction meter is shown to the
right with the Gate Active indicator below it. These show
activity in red when switched In, and in grey when switched
out of circuit.
METER SRC pull-up window
The Input meter source point can be globally set for all
meters in the Inputs page. This does not affect the fader
strip or other screen metering.
The following options are available (all Pre-Fader):
Post-Trim
Post-Gate/PEQ
Post-Compressor
Post-Delay (Default)
4.2 FX and Mix Meters pages
These pages show meters for all FX and Mixes available.
The Compressor Gain Reduction meter is shown to the
right with the Gate Active indicator below it.
METER SRC pull-up window
The meter source point can be globally set for all meters in
the Mix page. This does not affect the fader strip or other
screen metering.
The following options are available:
Pre-Insert
Post-Insert Return
Post-PEQ
Post-GEQ
Post-Compressor
Post-Fader (Default)
