ALLEN & HEATH dLive C1500 - Dimensions and Weights

Surface Getting Started Guide
18
AP10826 Issue 3

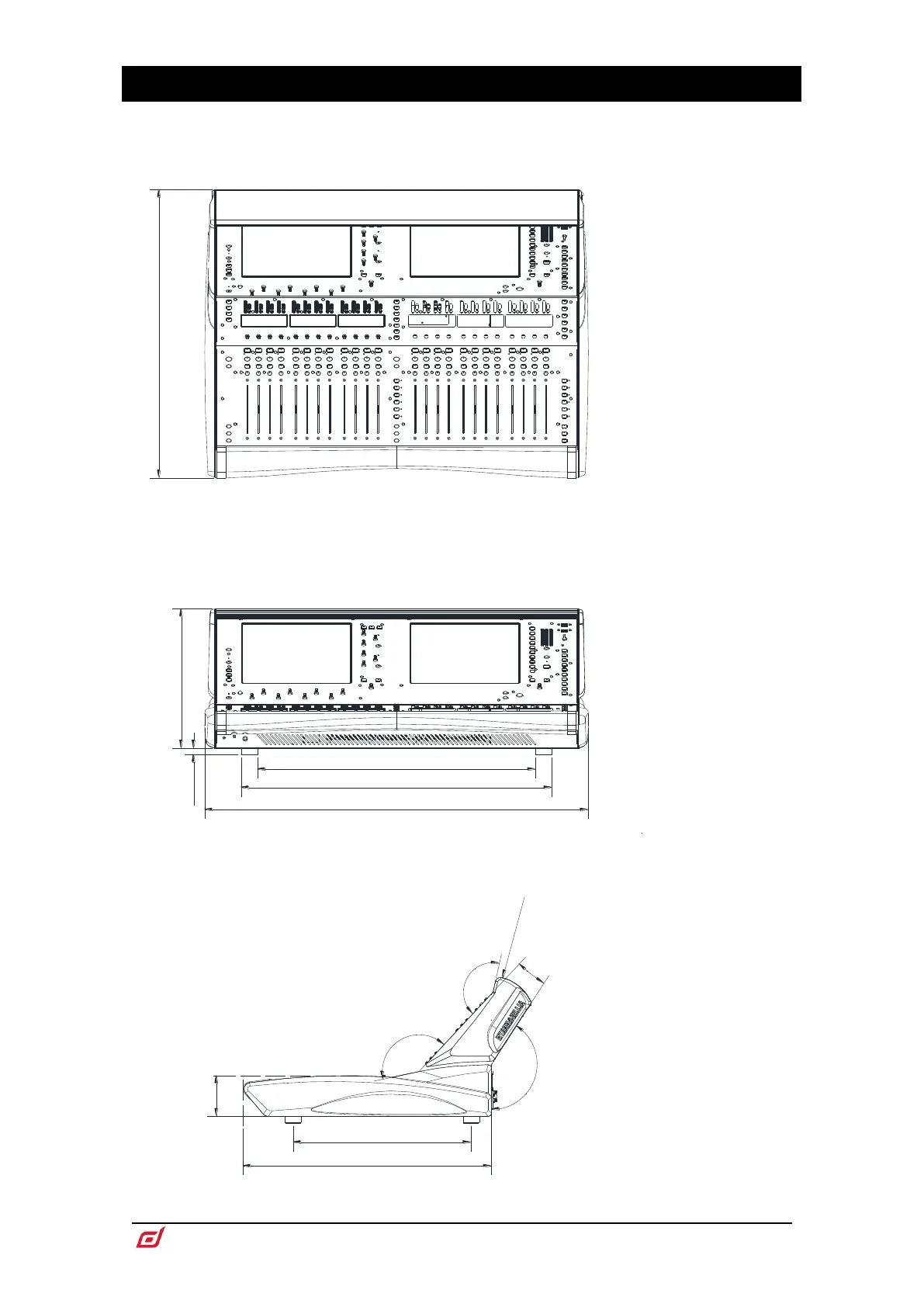

5. Dimensions
573.3
410.70
R100.00
147.00°
94.3
664.6
10.0°
149.50°
145.0°
321.1
15.00
B
A
C1500 - 480.6mm/18.9"
C2500 - 774mm/30.5"
C3500 - 885mm/34.8"
B
C1500 - 377.5mm/14.9"
C2500 - 657.5mm/25.9"
C3500 - 717.5mm/28.2"
C
A
C
C1500 - 302.5mm/11.9"
C2500 - 582.5mm/22.9"
C3500 - 642.5mm/25.3"
