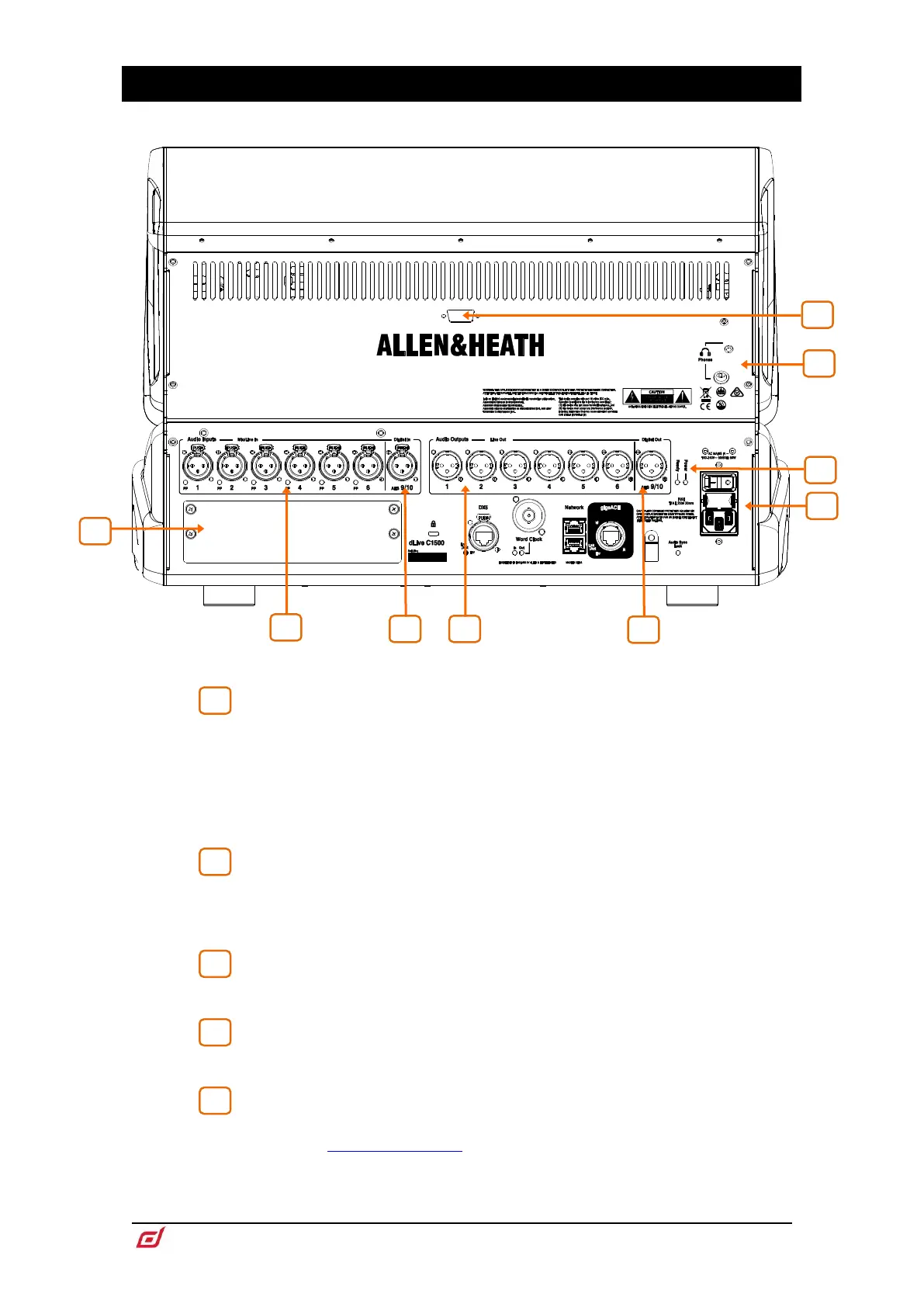

2. Rear Panel
Mic/Line inputs – 6x recallable preamps for balanced or unbalanced
microphone and line level signals. Gain, Pad and 48V are digitally controlled within
the preamp.
The PP indicator lights up when phantom power voltage is detected at the socket,
whether internally or externally sourced.
Any socket can be patched to any Input Channel using the I/O or Processing /
Preamp screen.
Digital inputs – Stereo AES3 input (32kHz – 96kHz sampling rate). Sample
Rate Conversion can be bypassed.
Any socket can be patched to any Input Channel using the I/O or Processing /
Preamp screen.
Line outputs – 6x line level, balanced XLR outputs. Nominal level +4dBu.
Signals can be patched to any output socket using the I/O screen.
Digital outputs – Stereo AES3 output (48kHz or 96kHz switchable).
Signals can be patched to any output socket using the I/O screen.
I/O Port – Audio interface port, 128x128 channels. Fit one of the option cards
available for system expansion, digital mic splitting, recording or distributed audio
networking. Refer to www.allen-heath.com for a list of available option cards.
iLive / GLD option cards (M-Dante, M-Waves, M-ES-V2, M-ACE, M-MADI) can be
used with dLive when fitted with the M-DL-ADAPT ‘letter-box’ adapter. This
provides a 64x64 48kHz interface with built-in Sample Rate Conversion.
