GLD User Guide 21 AP8561 iss.3

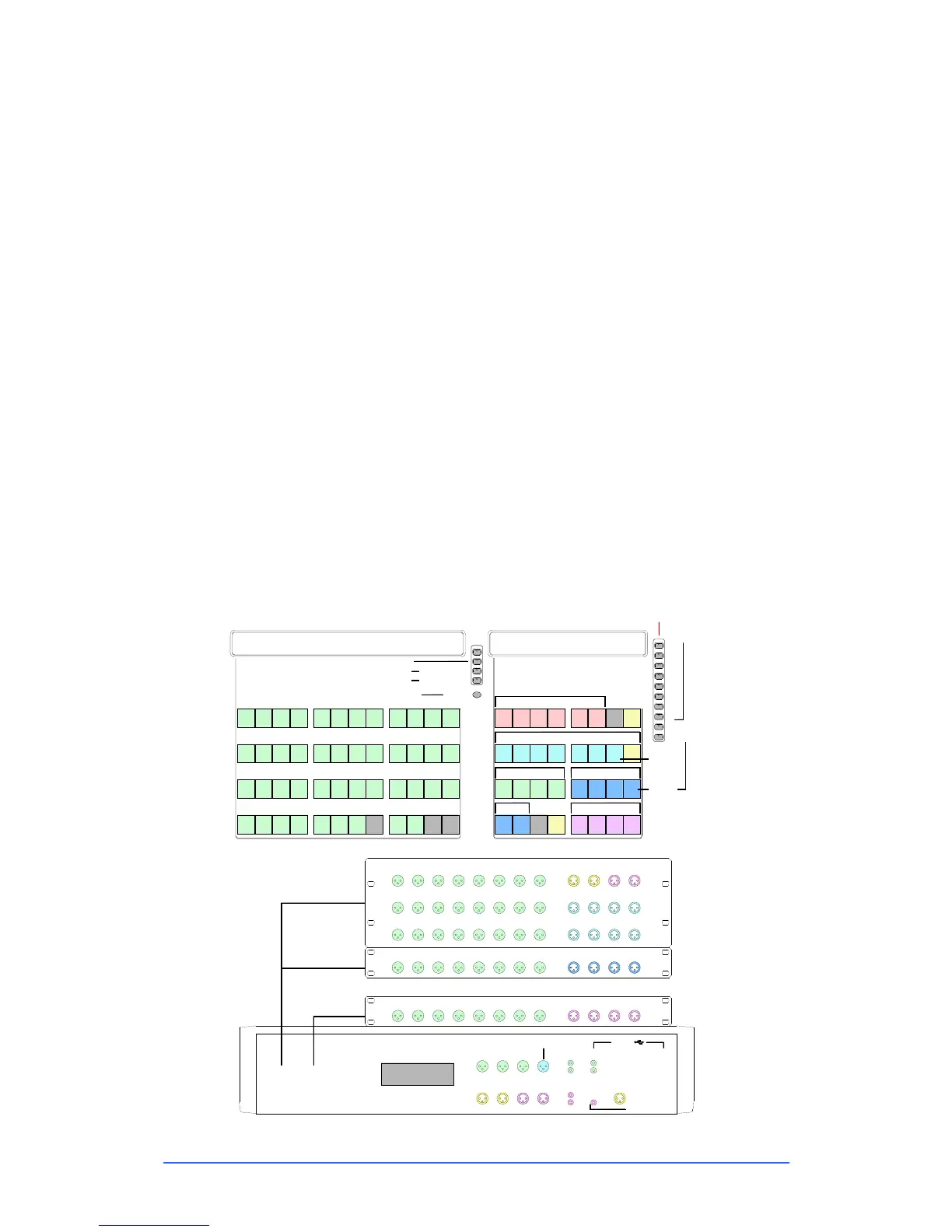

Template1 LR
This Template configures a traditional architecture and layout with stereo LR main mix for mixing
FOH and Monitors from FOH. This is the factory default Show loaded.
LR stereo main mix The Front-of-House main mix using a single master fader.
4 Groups (2 stereo) For example, use these to EQ or compress groups of inputs
such as drums, backing vocal or radio mics, or to send to a
Matrix to create a different balance in fill speakers, or to group
several inputs to record to mono or stereo tracks.
8 Auxes (6 mono, 1 stereo) Typically used for monitor sends such as wedge speakers and
stereo in-ear systems.
8 FX (4 assigned to strips) 3 reverb and a delay effect are assigned to the faders. 4 more
effects send and returns can be assigned or inserted into
channels or mixes.
6 Matrix (2 mono, 2 stereo) Ready for use as additional speaker sends such as delay fills
and remote zones, or for separately controlled recording,
broadcast and video feeds.
Recording from stereo Matrix 1 Set up ready to feed a stereo recording sourced from the main
LR mix. Its send and master are turned up. Its output is patched
to analogue and Spdif connections on the rear panel. It is also
patched as the source to the USB stereo recorder.
16 DCA / Mute groups Use these for muting and controlling the levels of groups of
signals such as drums, vocals and effects. 6 DCA masters are
assigned to the faders. You can assign more as required.
Talkback using mic socket 44 Rear panel mic input 44 is patched as the Talkback source. For
this reason CH44 is not assigned to a fader strip. You can
assign it to a strip if you are not using talkback.
USB playback to CH47/48 Playback from the USB key is patched to a stereo channel.
1
9
17
L
A1
A5
R
A2
A6
A3
A1
A4
A1
2
10
18
3
11
19
4
12
20
5
13
21
6
14
22
7
15
23
8
16
24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
G1 G1
LRG2 G2
M1 M1 M2 M2
41 42 43
Talkback
L
RM2 LR
45/6
M1
M1
ss
LRss
LRss LRss
L
ss
LR
R
GLD-80
AR84
AR84
AR2412
dSNAKE EXPANDER I/O Port
In = not patched
Out = IP Skt 1-48
2 3 4 9 10 11 12
14 15 16 21 22 23 24
5678
17 18 19 20
1234 56 LR
1234 561
1234 1234
M2
S
DCA
Aux
FX return FX send
LR 1212
Grp Mtx
SS
1
13
26 27 28 33 34 35 3629 30 31 3225
38 39 40 45/6USB41 42 4337
Alt View
Fader Bank 1 Fader Bank 2
Custom Rotary 2
Custom Rotary 1
not assigned
not assigned
Channel number
1
2
3
4
5
PAFL Clear
Tap tempo
DCA mute
A
B
C
D
A
B
C
D
all Pre-fade
4= Delay
for digital mic split
Direct Out = Post-Delay, Pre-fade, Post-Mute
Talkback from Input 44 and assigned to all Aux sends
M1
M1
LRss
LR
12
6
7
8
USB Playback assigned to Channel 47/48
USB Recording from LR via stereo Mtx 1
DIGITAL
USB
Playback Record
M1
s
Rec
Rec
SS
Default = Pan
Monitor Out = ME-1 mode
PEQ = 20-20kHz, Curve Fill = On
Scene Edit Confirmation = On
SoftKeys are Scene Safe
