Surface Audio connections

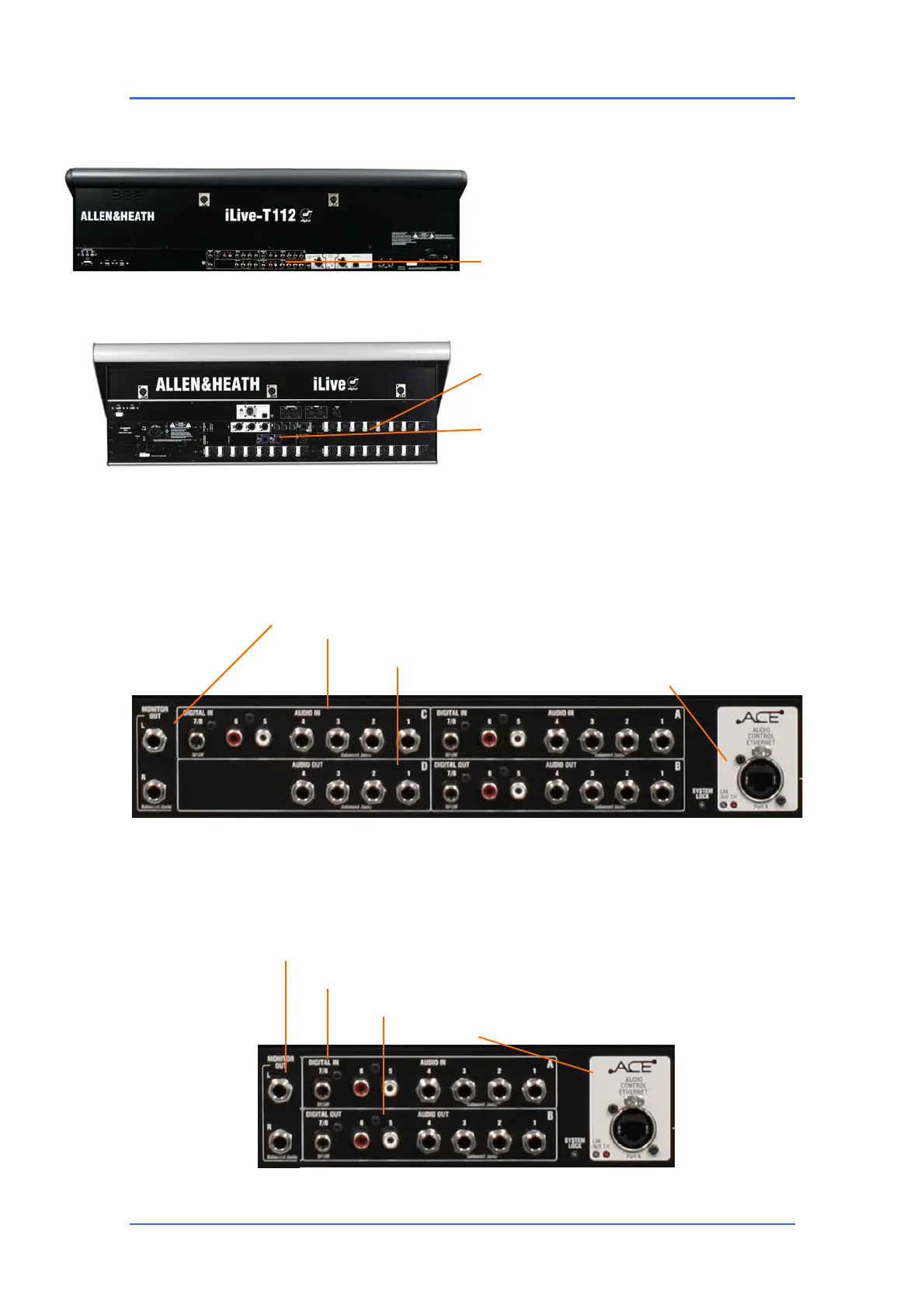

T Series Surface audio connections
While the iLive surfaces feature a built-in modular audio
card frame, the lower cost T Series presents a fixed
format audio interface for input and output connections.
This matches the typical requirement for audio local to
the surface.
iLive surface
4 slots for audio modules. 8 inputs or outputs per card.
Up to 32 connections. Capable of mic, line or digital
signals.
Port A - Surface to MixRack audio link. Choose option.
Port B - Option for recording.
Local monitor output Headphones and Talkback on front of Surface
16 local inputs = 8 balanced line TRS jack, 4 RCA phono, 2 stereo Spdif digital
12 local outputs = 8 balanced line TRS jack, 2 RCA phono, 1 Spdif digital
Audio link = Port A Surface to MixRack link - ACE
iLive-T112 Surface
Fixed 16 in, 12 out
Local monitor output Headphones and Talkback on front of Surface
8 local inputs = 4 balanced line TRS jack, 2 RCA phono, 1 stereo Spdif digital
8 local outputs = 4 balanced line TRS jack, 2 RCA phono, 1 Spdif digital
Audio link = Port A Surface to MixRack link - ACE
iLive-T80 and R72 Surface
Fixed 8 in, 8 out
