8 WZ
3
12M User Guide
Dimensions
Free Standing
Width 507 mm (20”)
Depth 530 mm (21”)
Height 194 mm (7.7”)
Rack Mount
Top Connectors
11.2U
Width 483 mm (19”)
Depth 195 mm (1.7”)
Height 497 mm (19.6”)
Rack Mount
Rear Connectors
10U
Width 483 mm (19”)
Depth 125mm (5.1”)
Height 444 mm (17.5”)
Weights
12kg (27 lbs)

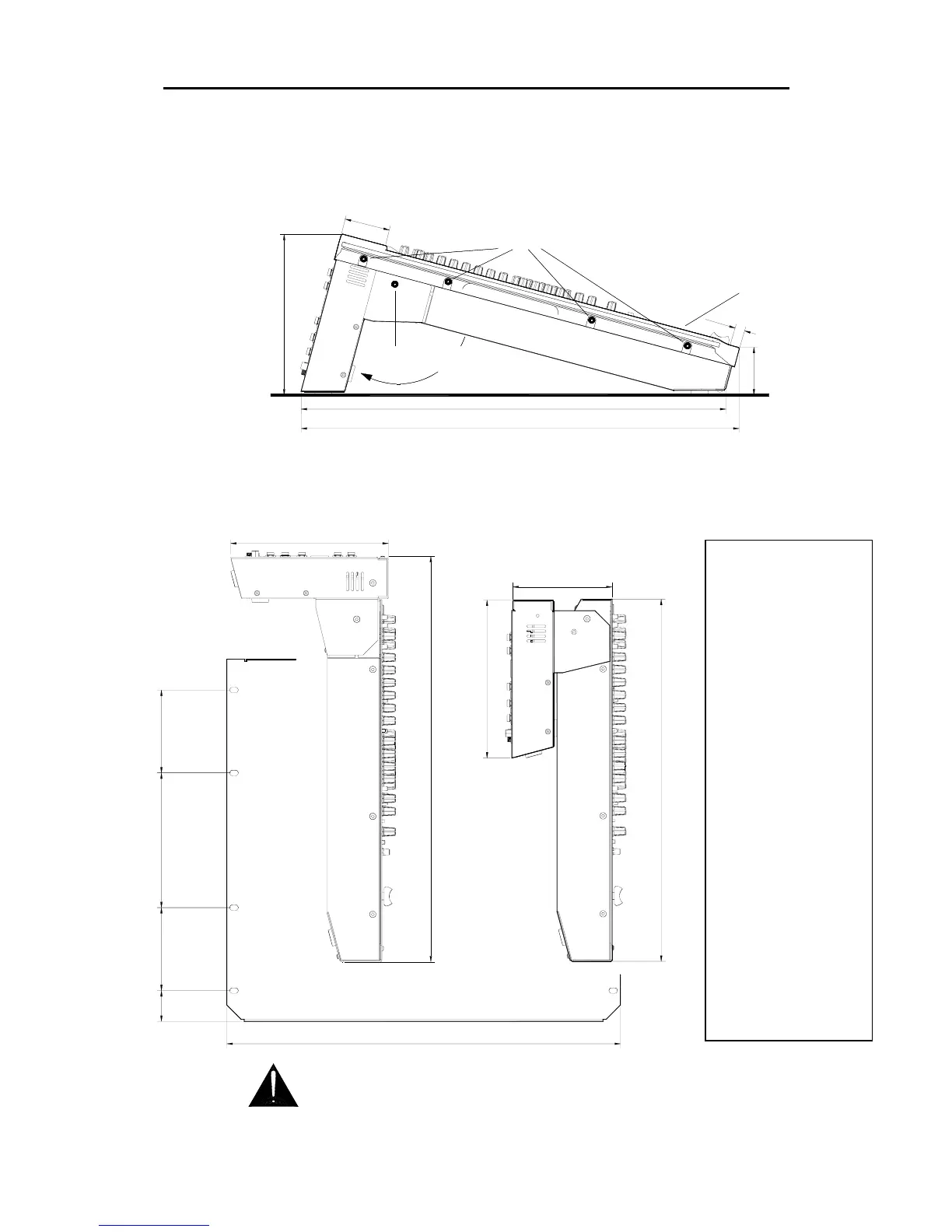

Installing the Console
Free Standing
The console is supplied ready for free standing operation with its side trims fitted and
connector pod positioned for rear access. If you are converting from rack to free standing
then make sure the pod is correctly rotated and secured, and the side trims fitted as shown:
19” Rack Mount
For rack mounting, remove the two side trims and rotate the pod into the connector position
preferred. Allow enough space for the cables and connectors behind the console.
Do not transport the console with its connector pod securing screws removed.
Do not attempt to remove the connector pod from the console. Do not obstruct
the ventilation slots. Allow adequate space around the console for air flow. If the
side trims are to be removed, do not refit their fixing screws to the unit. Retain
and store these in case the trims need to be refitted in the future.
194
5
5
1
2
58
514
530
ROTATE POD AND REFIT SECURING SCREWS
RELEASE M4 POZI SCREW EACH SIDE
FIT SIDE TRIMS - 4x M4 POZI SCREWS PER SIDE
CONSOLE WIDTH = 507mm
101.6165.1101.637.7
482.6 (19" RACK)
444
(10U)
193
497
(11.2U)
SECURE IN RACK USING 8x M6 BOLTS
USE PLASTIC CUP WASHERS TO PROTECT THE PANEL
122
193
