ALLEN & HEATH Qu-32 Getting Started Guide

Qu Mixer Getting Started Guide 19 AP10025 iss1

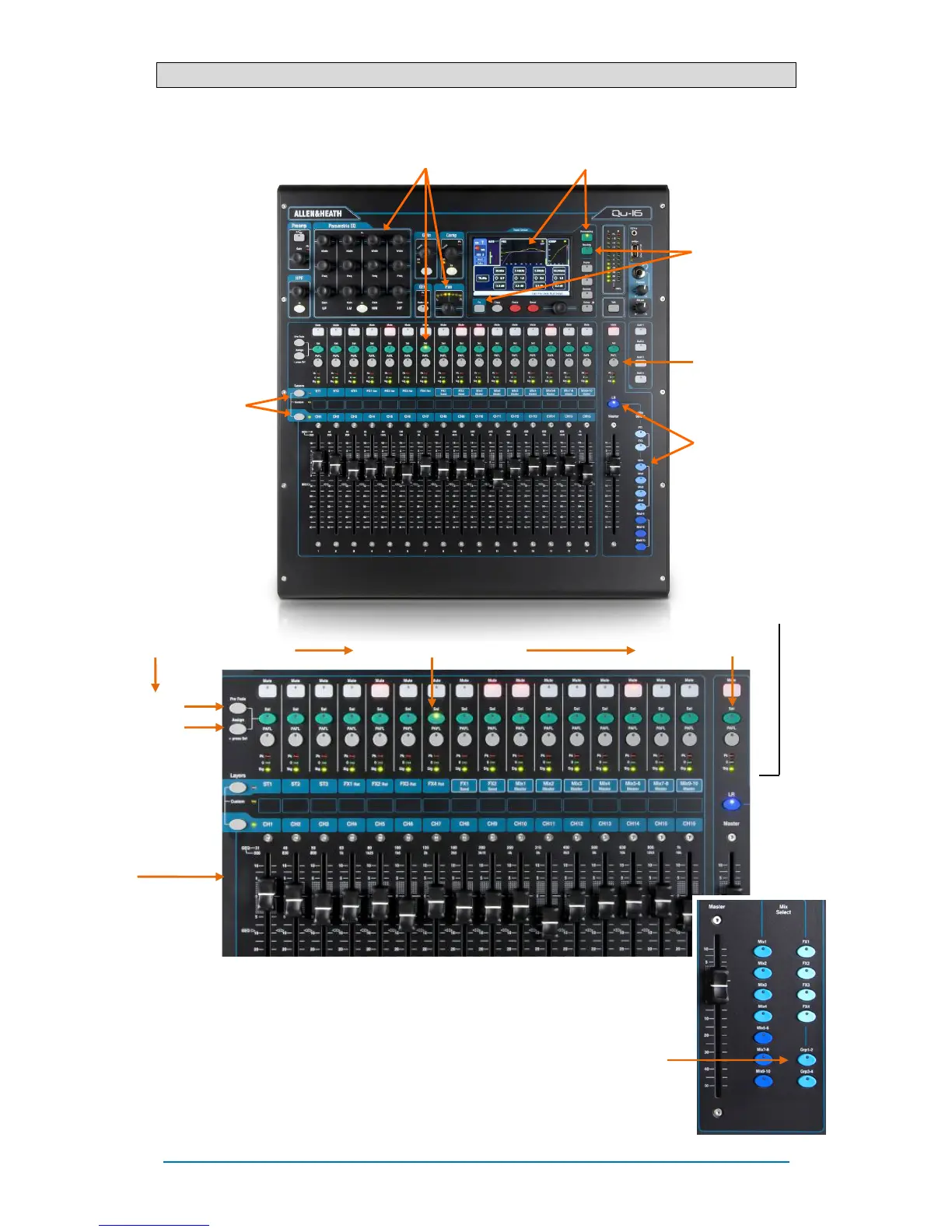

9.6 Mixing with Qu-16, Qu-24 and Qu-32
Press the Processing key and touch the top part of
the screen to access preamp and processing
parameters for the selected channel using the screen.
Press a green Sel key to work with channel processing
and pan using the SuperStrip controls. Press Fader Flip
to work with the mix GEQ using the faders.
Press a layer key to
access inputs, FX and
master fader strips.
Press both for the
Custom Layer. Any
combination of inputs,
FX, masters, DCAs and
MIDI strips can be
assigned here. Use the
space provided to label
the strips.
Press the Routing key to
access routing parameters
for the selected channel.
Press the Fn key to work
with DCA and Mute Group
assignments and masters.
Press a blue Mix key to
work with mix sends,
routing and pre/post
fade settings.
The Master strip follows
the selected Mix.
 Remember to return
to the main LR mix once
you have finished
adjusting monitor or
effects levels.
Press PAFL to listen to
individual signals using
headphones and view
their levels on the main
meters.
Pre/Post
Assign
Toggle individual sources Toggle all sources Hold and then press Sel
Sends on faders
Press a Group Mix key to assign its routing
and access its master fader and processing.
The channel faders remain active. Groups are
not available on the Qu-16.
The Grp key lights purple if it is set to Group
mode. It li
g
hts blue if set to Mix mode.

ALLEN & HEATH Qu-32 Specifications

General

Sample rate	48 kHz
Channels quantity	32 channels
Digital sound processing	- bit
DJ mixer	-
USB port	Yes
Product color	Black
USB connector type	USB Type-B
XLR out	2
Master (XLR) out	24
RJ-45 ports quantity	1
Power consumption (typical)	- W
Output impedance	75 Ω

Weight and Dimensions

Depth	471 mm
Width	849 mm
Height	190 mm
Weight	20000 g
Package type	Box
Package depth	680 mm
Package width	1000 mm
Package height	350 mm
Package weight	24000 g
