3. Introduction to the Qu Series
Building on the heritage of the GLD and flagship iLive digital consoles, the Qu Series presents exceptional
performance together with an intuitive analogue style user interface with a motorised fader per channel,
knobs and touch screen, total recall of all settings, full input, output and FX processing and patching,
built-in automatic mic mixer, USB streaming and direct to hard drive multitrack recording, digital snake
capability and remote wireless control using an iPad.

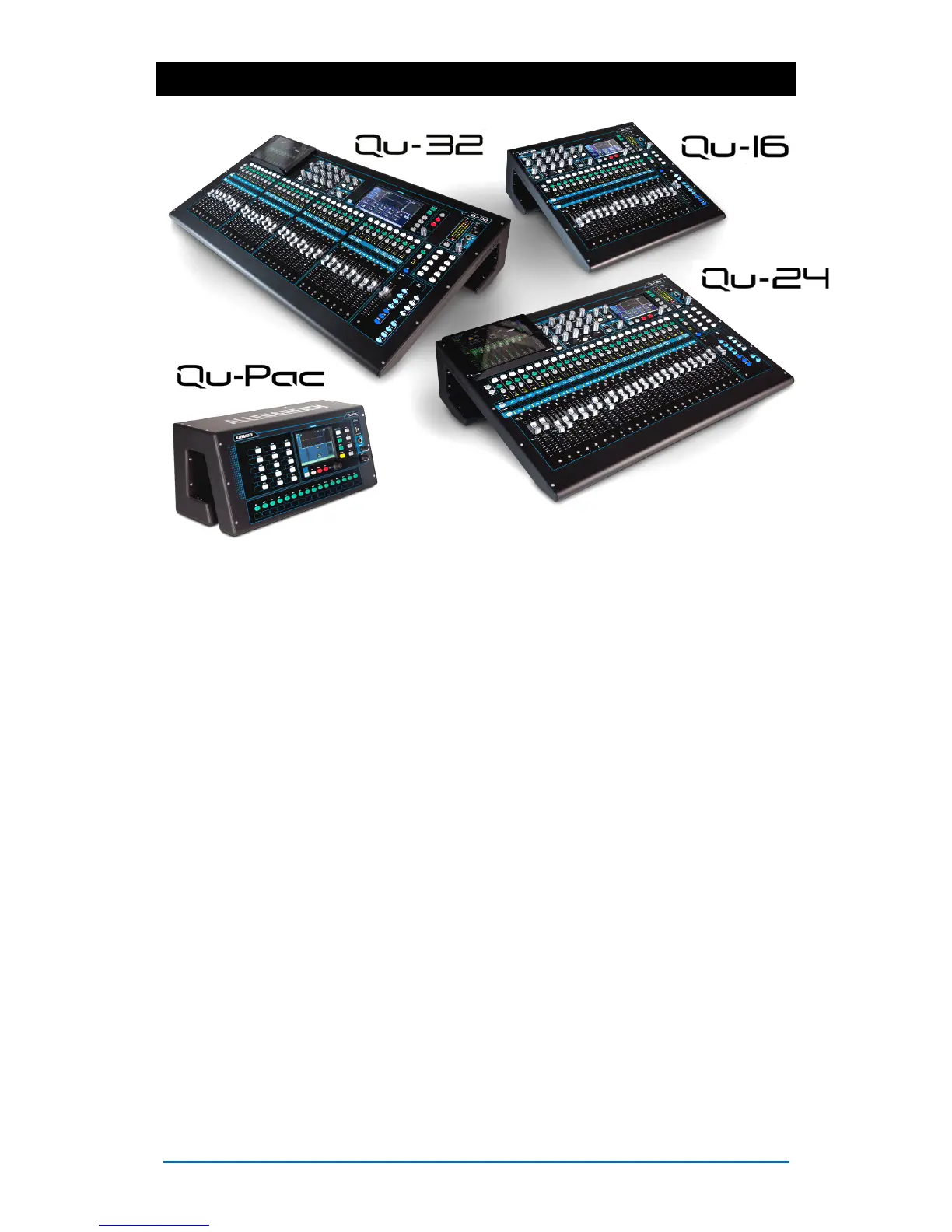

There are four models in the Qu Digital Audio Mixer Series:
Qu-16 – Compact, rack mountable mixer with 16 mic and 3 stereo line input channels.
Qu-24 – Larger model with 24 mic and 3 stereo inputs. Adds stereo Groups, Matrix and more SoftKeys.
Qu-32 – Largest model with 32 mic and 3 stereo inputs. Adds 2 more stereo Groups.
Qu-Pac – Rack mountable version of the Qu-32 without faders, for iPad and front panel control.
Qu-16 Qu-24 Qu-32
 16 Mic/Line channels  24 Mic/Line channels  32 Mic/Line channels
 3 stereo Line channels  3 stereo Line channels  3 stereo Line channels
 24 sources to the mix  32 sources to the mix  40 sources to the mix
 12 mixes (4 mono, 3 stereo, LR)  12 mixes (4m, 3(5)st, LR)  12 mixes (4m, 3(7)st, LR)
 4 FX (2 send buses)  4 FX (4 send buses)  4 FX (4 send buses)
 4 SoftKeys  10 SoftKeys  10 SoftKeys
 24 out, 22 in USB streaming  32 out, 30 in USB  32 out, 32 in USB
 2 stereo Groups (mix mode)  4 stereo Groups (mix mode)
 2 stereo Matrix  2 stereo Matrix
All models
 AES digital, Alt Out and 2TRK outputs
 Talkback mic input
 dSNAKE Cat5 snake to connect optional AudioRacks or ME-1 personal monitor mixers
 4 Mute Groups, 4 DCA Groups
 4 built-in FX (effects units)
 100 Scene memories with channel safes and recall filters
 Automatic mic mixing (AMM)
 Channel ducking

ALLEN & HEATH Qu-32 Specifications

General

Sample rate	48 kHz
Channels quantity	32 channels
Digital sound processing	- bit
DJ mixer	-
USB port	Yes
Product color	Black
USB connector type	USB Type-B
XLR out	2
Master (XLR) out	24
RJ-45 ports quantity	1
Power consumption (typical)	- W
Output impedance	75 Ω

Weight and Dimensions

Depth	471 mm
Width	849 mm
Height	190 mm
Weight	20000 g
Package type	Box
Package depth	680 mm
Package width	1000 mm
Package height	350 mm
Package weight	24000 g
