PREAMP (DUAL MIC/LINE IN) If the dual input
module is detected then the screen includes a
touch button to select between the A an B input
connections.
PREAMP (DIGITAL IN) If a DIGITAL IN source is
selected then a +/-24dB level trim control, polarity
and source selection for one of AES, SPDIF, optical
inputs are provided. If Port A or Port B digital audio
network source is selected then a trim and polarity
switch are provided.
EXT. INPUT (Mix only)
You can patch a source as a mix master External
Input. To open up the view touch the EXT INPUT
section in the top level ‘thumbnails’ view for the
master.

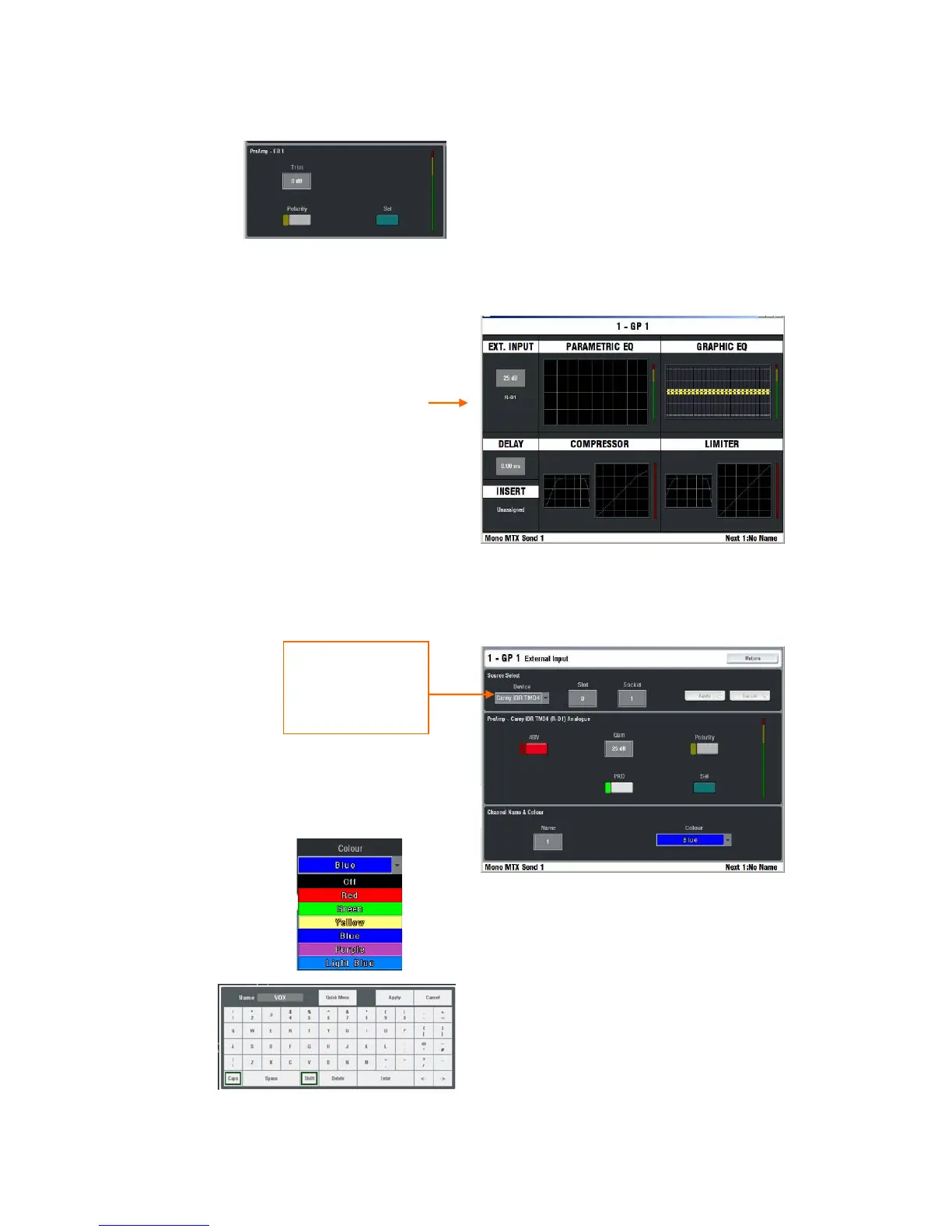

Ext Input patch bay Select the input source from
the Device drop down menu and press Apply to
confirm.
Name and Colour The mix master name and
colour can also be set from within this view. Touch
the Name box to access a touch keypad to enter a
5 character name. Use the ‘Quick Menu’ view to
store and recall commonly used names. Touch the
Colour box to access a drop down menu to select
the (LCD backlight) colour (6 colours and off).
Mix Master name and colour
MixRack
Surface
Port A
Port B
Surface Talkback
To Next Page
