Using TEMPLATE Shows
The iLive has a fully configurable audio architecture, control layout and socket patching letting you
customise the way you work. It would be a daunting task for the new user if we gave them a ‘blank
canvas’ to start from scratch. Instead we have provided a set of ‘Template’ Show memories which give
you a choice of classic console format to load in as a quick starting point. These emulate the familiar
architecture and logical layout of well equipped analogue consoles. Once you are comfortable working
with iLive you can make changes to your set up and save these as your own ‘User’ Shows.
A default show is already loaded when the iLive is shipped from the factory. This is FOH_LRSub.
Note: Recalling a Show overwrites all the
system settings including the DSP mix
architecture, Surface configuration, current
parameters, all the Scene and Library memories.
If you want to keep the current configuration make
sure you archive it as a User Show before recalling
the new Show.
Template Shows available:
FOH These make a good starting point for general
purpose live mixing whether FOH only or mixing
monitors from FOH. They provide a classic Group /
Aux / Mains / Matrix bus architecture and differ only
in the type of main mix configured.
MON These recall a format and layout suitable for
dedicated monitor mixing, with a combination of
mono and stereo auxes and engineer’s dual
Wedge/IEM monitor.
SLAVE Use these when the system gets its inputs
from a ‘master’ console via a digital mic split such
as Ace or EtherSound.

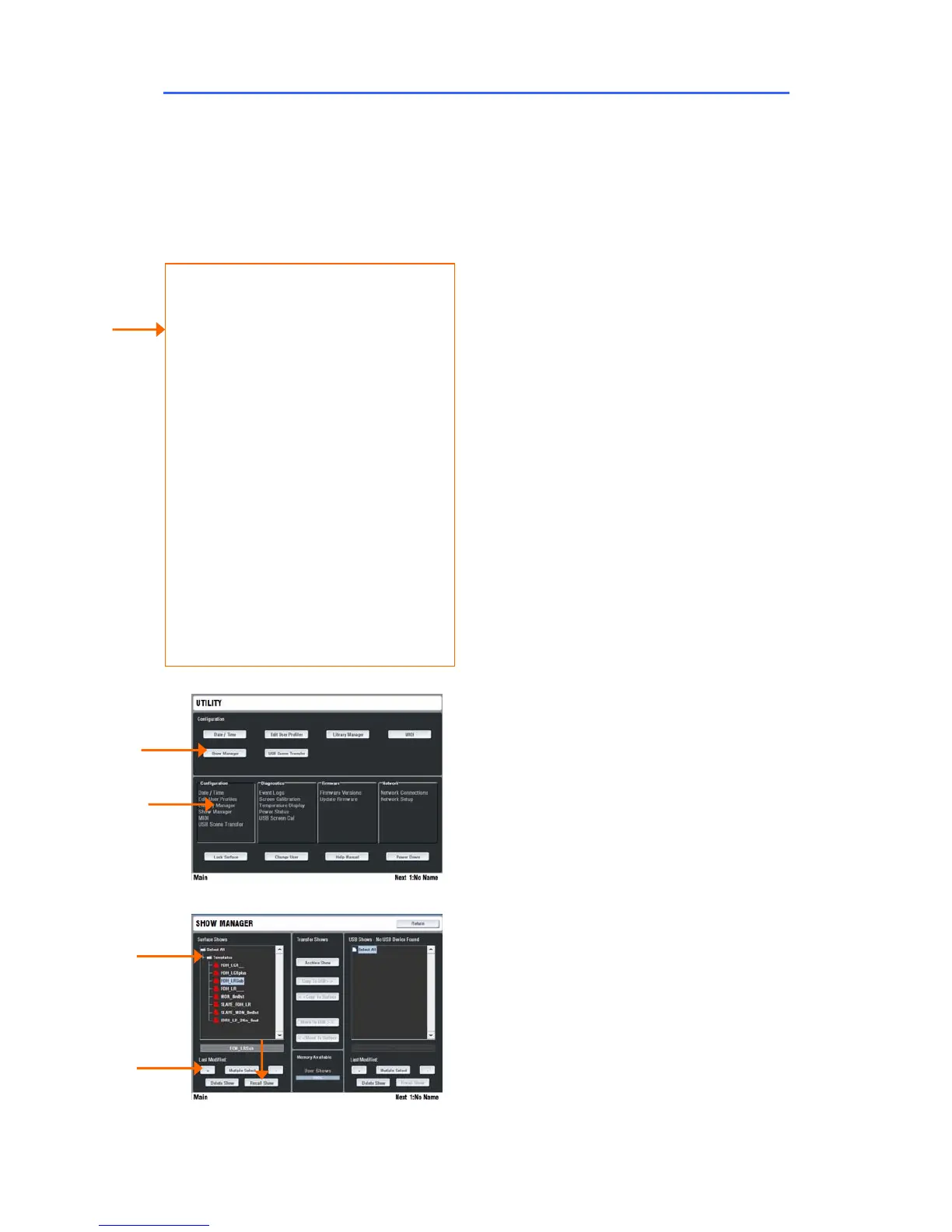

Load a Template Show
Press the UTILITY key below the TouchScreen -
UTILITY / Configuration / Show Manager.
Highlight the Templates item. Touch the + button
to expand the tree. Select a show from the list and
touch Recall. A show takes around 2 minutes to
load depending on the amount of data stored.
Recall the layout for the T80 or T112
When the recall has finished, a 'Hello' message is
displayed on the strips. This is to remind you to
load a Scene to match your iLive model. The Scene
recalls the strip layout for your Surface size and
configures the output patching for either the
standard iLive or the T Series. Press the SCENES
key below the TouchScreen - SCENES / (Surface
name) / Recall Scene
Customise and save your settings
You may wish to make changes to the configuration
and save the new settings as a User Show. Before
you do this we suggest you Delete Scene 1 - 14 to
clear them ready for your own application.
FOH_LR Standard stereo main mix with LR
master faders and channel Pan.
FOH_LRSub Stereo with separate Sub mix
quickly accessible on each channel using a
shifted rotary function.
FOH_LCR Conventional LCR panning - left
through centre to right.
FOH_LCRplus LCR image control with Pan
and Blend (LR to C) controls. Similar to the
Allen & Heath ML Series consoles.
MON_12m2st 12 mono + 2 stereo mixes
plus Wedge/IEM monitor.
MON_8m6st 8 mono + 6 stereo mixes plus
Wedge/IEM monitor.
SLAVE_FOH_LRSub FOH mixer receiving its
inputs from the monitor console via a digital
audio network.
SLAVE_MON_8m8st Monitor mixer receiving
its inputs from the FOH console via a digital
audio network.
