ALLEN&HEATH Xone:22 service manual AP7528_3 Page - 7 - of 12
ACCESS
Tools required: T10 and a T8 Torx screwdriver.
1. Ensure that the power supply has been turned off and disconnected from the unit.
2. Using the T8 driver remove the three screws that are located in the centre of the channel
input and FX loop connectors (see illustration).
3. Using the T10 remove the 8 screws that hold the front panel to the chassis.
4. Now carefully lift the front edge of the panel up until the PCBs clear the chassis and pull the
whole assembly forward slightly until the connectors at the rear are free from the chassis.
You can now lift the front panel up to gain sufficient access to replace the faders or change
the jumper link settings. Reassembly is a reverse of this procedure.
5. Take great care to ensure that no harnesses become trapped and that all connectors are fully
pushed home. Replace the screws and test the mixer for correct operation.

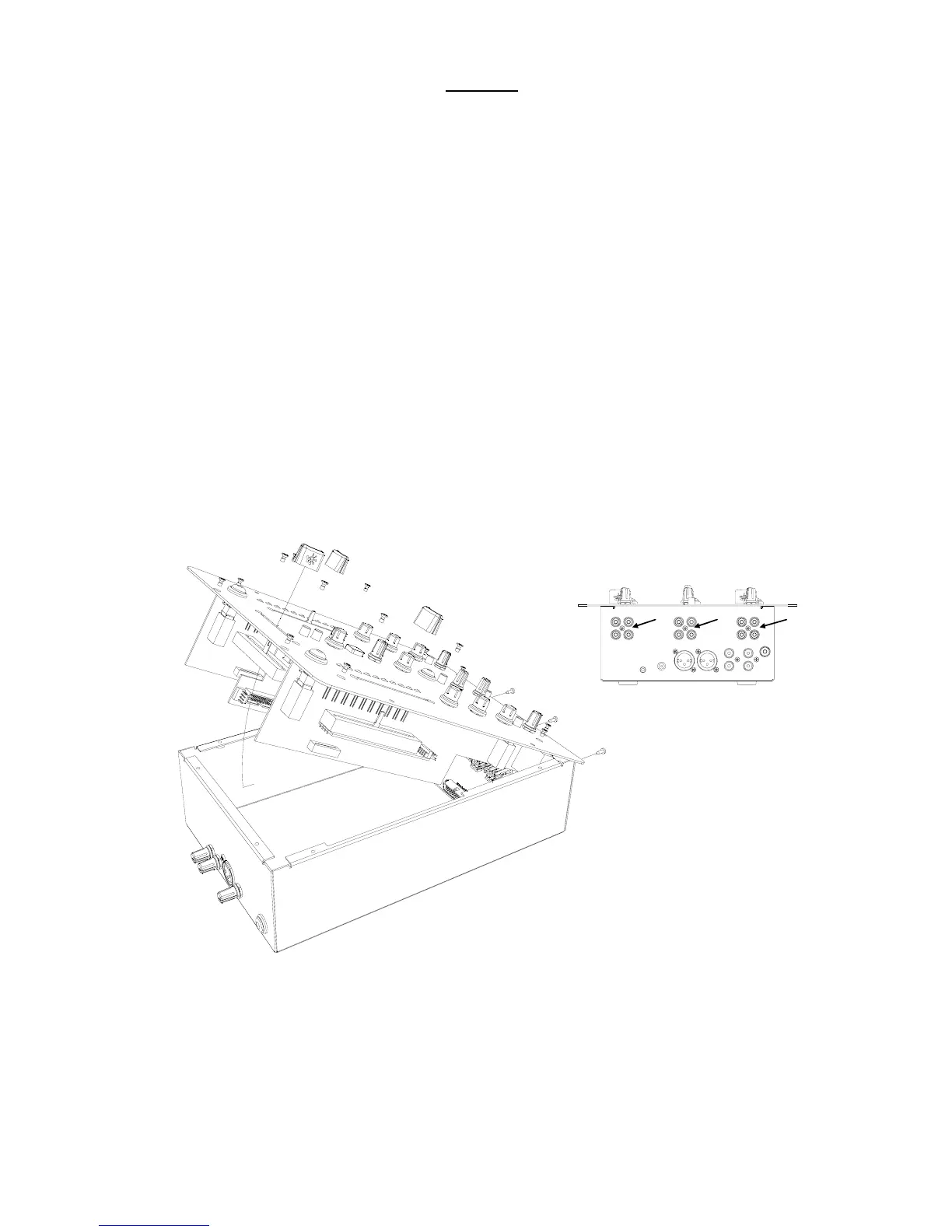

REMOVE THE SCREWS ARROWED

Other manuals for ALLEN & HEATH Xone:22

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ALLEN & HEATH Xone:22 and is the answer not in the manual?

ALLEN & HEATH Xone:22 Specifications

Connections - Inputs IconConnections - Inputs
phono RCA connection impedance47K/330pF
line RCA connection impedance20K ohm
FX RTN RCA connection impedance10K ohm
mic XLR connection impedance<2K ohm
Connections - Outputs IconConnections - Outputs
main mix balanced XLR output impedance68 ohms
monitor RCA output impedance68 ohms
record RCA output impedance600 ohms
FX SND RCA output impedance47 ohms
Performance IconPerformance
distortion0.002% THD+N
noise-84dBu un-weighted
frequency response10Hz to 30kHz +0/-3dB
Weight and Dimensions IconWeight and Dimensions
weight2.2 kg
packed weight3.5 kg
