ALLEN & HEATH Xone:22 Service Manual

ALLEN&HEATH Xone:22 service manual AP7528_3 Page - 9 - of 12
How to order parts
Parts must be ordered from our distributor in your territory. A list of international distributors can be viewed
at http://www.allen-heath.com/UK/distributors.asp
UK parts must be ordered through an appointed A&H dealer or service centre. A list of UK service centres
can be viewed at http://www.allen-heath.com/UK/service_centres.asp

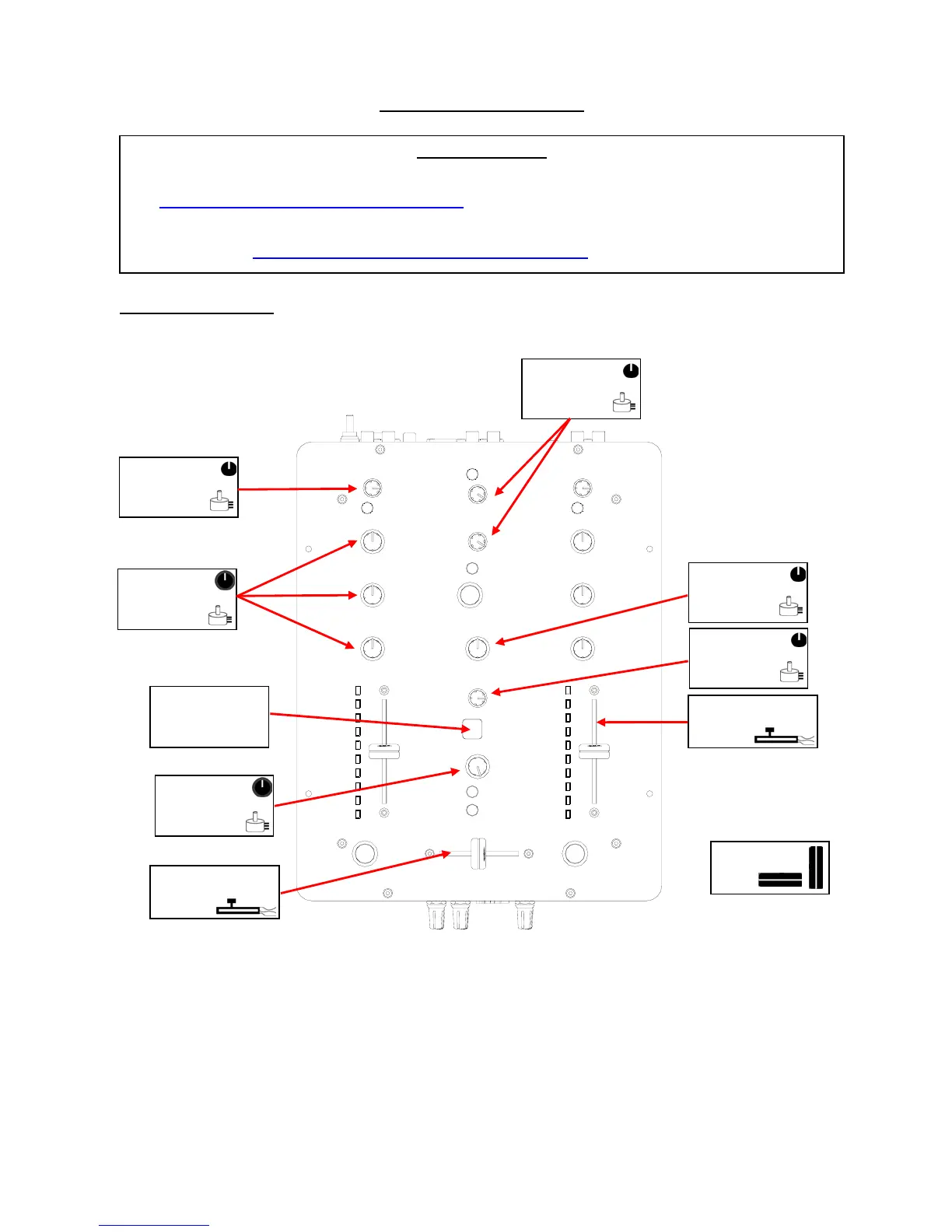

PARTS IDENTIFICATION
EXTERIOR PARTS
AJ7305
A
I8006
AJ7304
A
I8007
AJ5320
Channel fader
003-897
Crossl fader
003-876
AJ7304
A
I8007
AJ7304
A
I8007
AJ7305
A
I8006
AJ7305
A
I8006
AJ7464
S
q
uare red

ALLEN & HEATH Xone:22 Specifications

Connections - Inputs

phono RCA connection impedance	47K/330pF
line RCA connection impedance	20K ohm
FX RTN RCA connection impedance	10K ohm
mic XLR connection impedance	<2K ohm

Connections - Outputs

main mix balanced XLR output impedance	68 ohms
monitor RCA output impedance	68 ohms
record RCA output impedance	600 ohms
FX SND RCA output impedance	47 ohms

Performance

distortion	0.002% THD+N
noise	-84dBu un-weighted
frequency response	10Hz to 30kHz +0/-3dB

Weight and Dimensions

weight	2.2 kg
packed weight	3.5 kg
