ALLEN & HEATH Xone:22 User Manual

16
REPLACEMENT PARTS
USER-REPLACEABLE PARTS
AB8172 POT NUT BK (16 places -
under knobs)
AJ7464 PUSH BUTTON
SQUARE RED 5MM
AJ5325 FILTER / FX
BTN (3 places)
AJ5320 XONE FADER KNOB (3 places - faders)
AJ4251 PUSH BUTTON
ROUND BK 8MM (14 places)
AJ5324 LIGHT PIPE (3 places)
AJ7304 XONE EQ KNOB
(SML) (7 places)
AJ7305 XONE GAIN
KNOB (LGE) (5 places)
AB2810 4x5/16 PAN
BK (2 places - XLR)

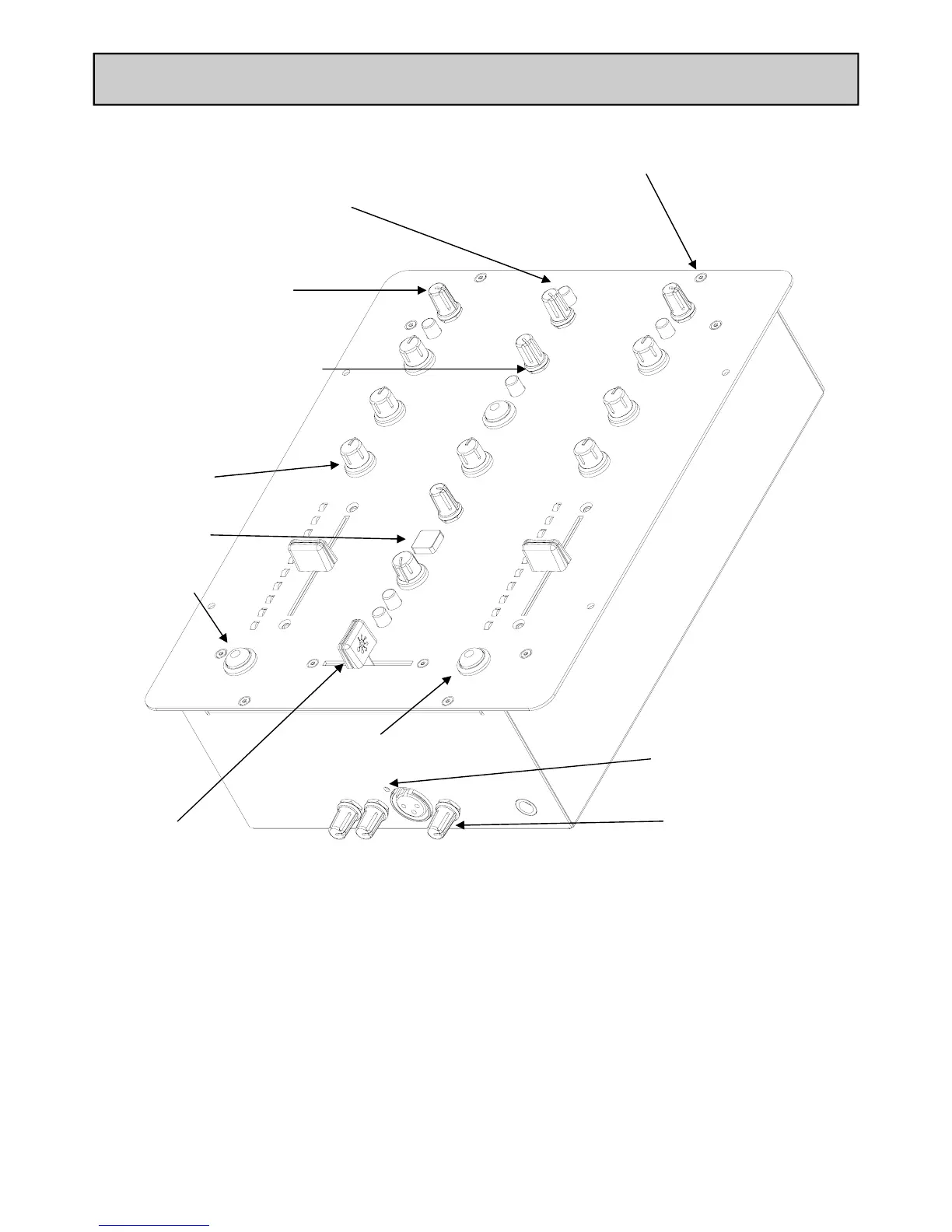

The diagram above shows all of the replacement parts that can be ordered from your local
technical support, or direct from Allen & Heath, for the Xone:22. When ordering please
quote the part number(s) of the required parts - this makes life easier for us!
See the previous page for information on replacing the crossfader, and for replacement cross-
fader assembly numbers.
AB0074 M3 x 8 CSK (16 places)
AJ7345 XONE KNOB
MIC PCB (3 places)

ALLEN & HEATH Xone:22 Specifications

Connections - Inputs

phono RCA connection impedance	47K/330pF
line RCA connection impedance	20K ohm
FX RTN RCA connection impedance	10K ohm
mic XLR connection impedance	<2K ohm

Connections - Outputs

main mix balanced XLR output impedance	68 ohms
monitor RCA output impedance	68 ohms
record RCA output impedance	600 ohms
FX SND RCA output impedance	47 ohms

Performance

distortion	0.002% THD+N
noise	-84dBu un-weighted
frequency response	10Hz to 30kHz +0/-3dB

Weight and Dimensions

weight	2.2 kg
packed weight	3.5 kg
