ALLEN & HEATH Xone:22 User Manual

7

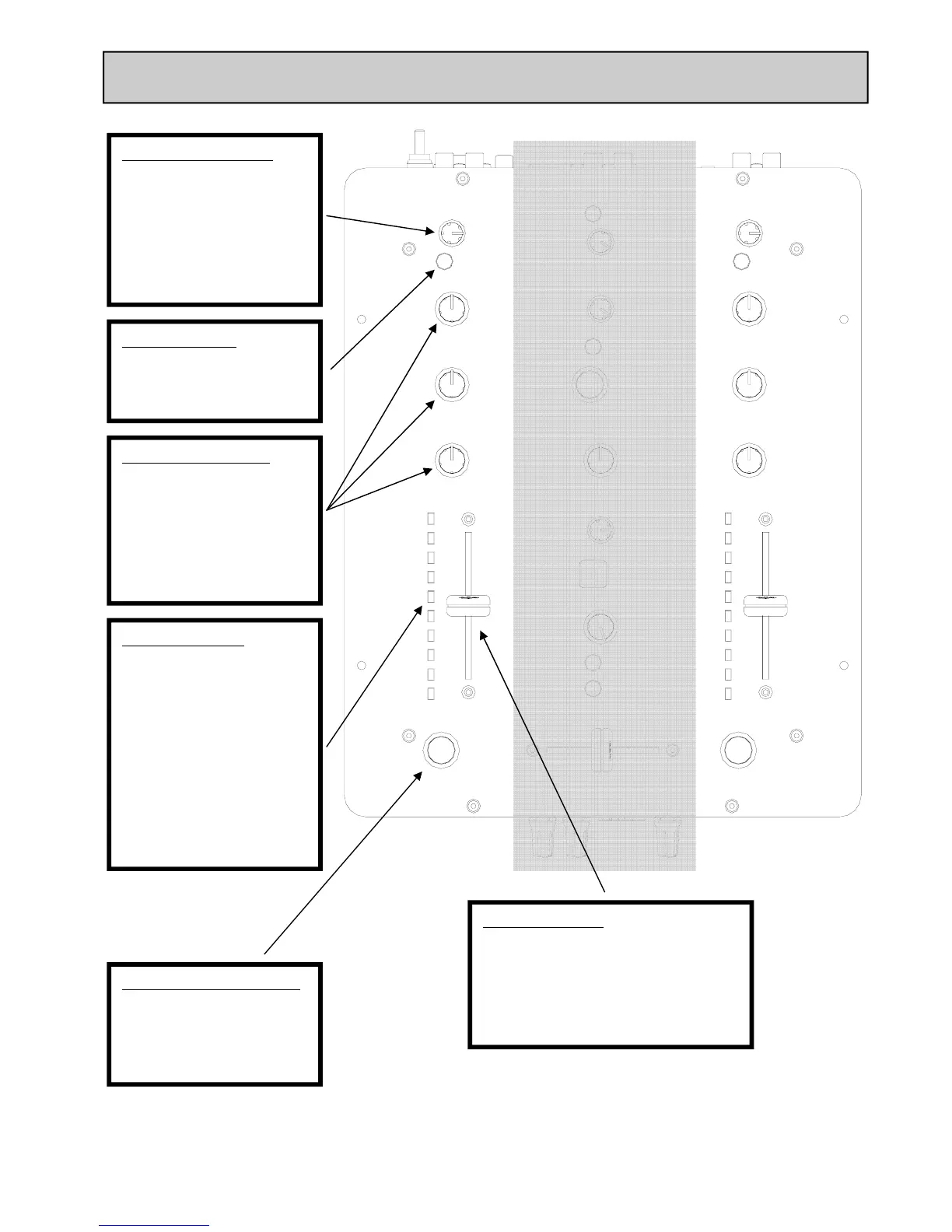

INPUT CHANNEL CONTROLS
Input level control
Adjust so that the aver-
age music level lights the
0 LED on the meter, with
the beats lighting the +3
to +6 LED. Turn down if
the +9 Red LED is illumi-
nated
Input selector
Switches between Phono
(turntables) and Line
(CD)
3-Band full kill EQ
Turn anti-clockwise to
kill a frequency band or
clockwise to boost.
If all bands are fully clock-
wise the signal will be
muted
Channel Meter
Indicates the signal level
through the channel. Ad-
just the level control so
that the peak signal level
lights the +3 or +6 LEDs.
Reduce the signal level if
the red +9 LED lights.
These meters will display
the Left/Right channel
output signal if the Cue/
Master button is pressed
Channel Fader
High quality fader adjusts the music
level for each channel in the mix.
For best signal-to-noise ratio set
the fader at, or near, the top when
in the mix
Filter/FX Loop switch
Pressing this switch sends
the channel signal to the
external effects loop and
to the VCF filter section

ALLEN & HEATH Xone:22 Specifications

Connections - Inputs

phono RCA connection impedance	47K/330pF
line RCA connection impedance	20K ohm
FX RTN RCA connection impedance	10K ohm
mic XLR connection impedance	<2K ohm

Connections - Outputs

main mix balanced XLR output impedance	68 ohms
monitor RCA output impedance	68 ohms
record RCA output impedance	600 ohms
FX SND RCA output impedance	47 ohms

Performance

distortion	0.002% THD+N
noise	-84dBu un-weighted
frequency response	10Hz to 30kHz +0/-3dB

Weight and Dimensions

weight	2.2 kg
packed weight	3.5 kg
