REPLACEMENT PARTS
USER-REPLACEABLE PARTS
AB8172 POT NUT BK (19 places -
under knobs)
AJ5320 XONE FADER KNOB
(3 places - faders)
AJ7304 XONE KNOB
(SML) (11 places)
AJ7305 XONE KNOB
(LGE) (8 places)
AB9256 2.5x9 AB TORX (10 places) on
front panel and rear chassis panel

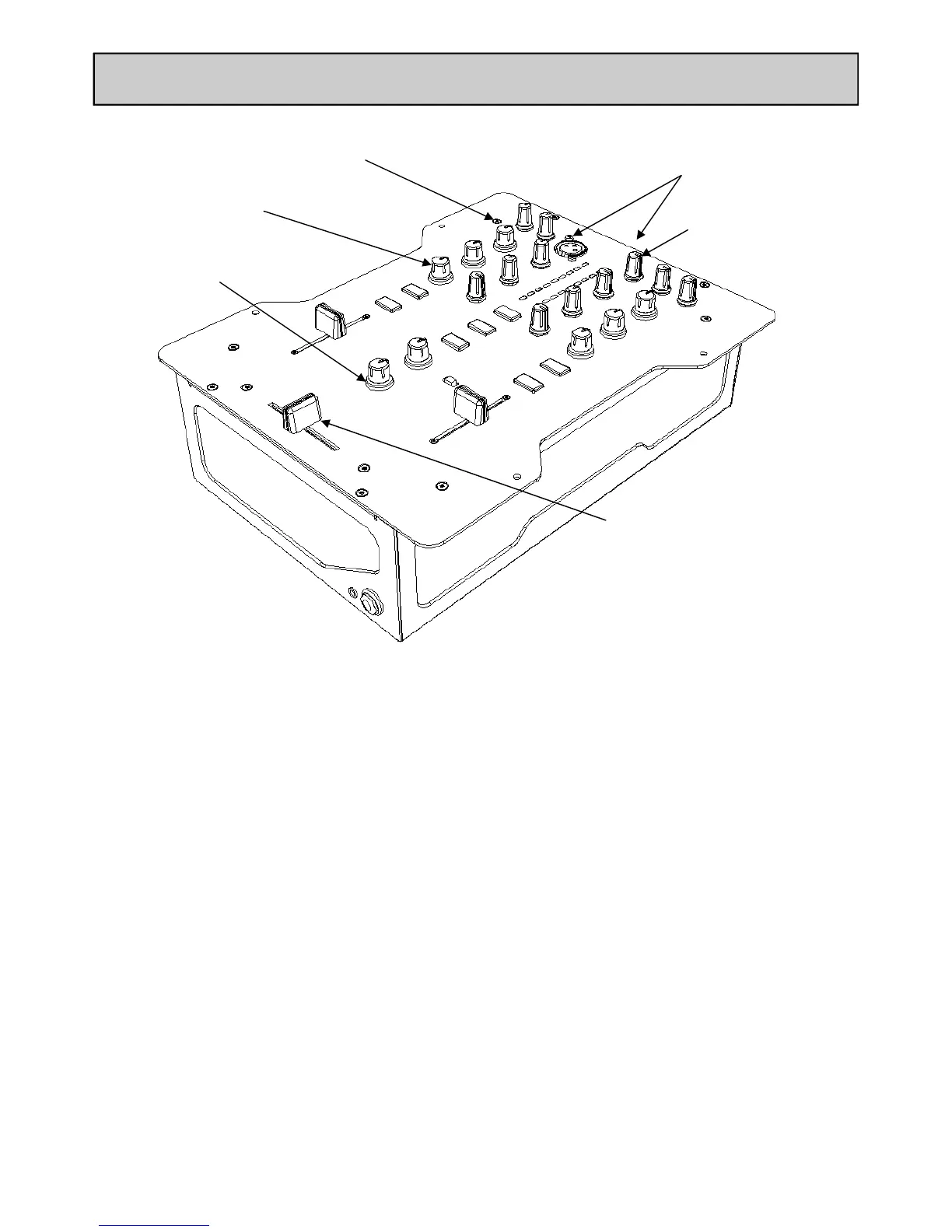

The diagram above shows all of the replacement parts that can be ordered from your local
technical support, or direct from Allen & Heath, for the Xone:23. When ordering please
quote the part number(s) of the required parts - this makes life easier for us!
See the previous page for information on replacing the crossfader, and for replacement cross-
fader assembly numbers.
AB9037 M3 x 85 CSK (12 places)

ALLEN & HEATH XONE:23 Specifications

General

Channels quantity	4 channels
Digital sound processing	- bit
Line Signal-to-Noise Ratio (SNR)	20 dB
Microphone in	Yes
Headphone connectivity	3.5 mm
Product color	Black
Video capability	No
Equalizer bands quantity	3
