ALLEN & HEATH XONE:3D User Manual

Allen & Heath 12 XONE:3D User Guide
DAC
1
2
DAC
3
4
DAC
5
6
ADC
COAXOP TIC AL
IN
OP T I C AL
MIX
FX1
CH2 PHONO
COAX
COAXOP T I CAL
OU T
SPDIF
ADC
MIX
FX1
CH3 PHONO
SC 1-2
SOUNDCARD OUT
SOUNDCARD IN
DI GI TAL OUT
SOUNDCARD
USB
COM PUTER
DAC
1
2
DAC
3
4
5
6
ADC
COAXOP TIC AL
IN
OP T I C AL
MIX
FX1
CH2 PHONO
COAX
COAXOP T I CAL
OU T
SPDIF
ADC
MIX
FX1
CH3 PHONO
SC OUT 1-2
SOUNDCARD OUT
SOUNDCARD IN 3-4
SOUNDCARD IN 1-2
SOUNDCARD
USB
DIGITAL OUT
SC IN 1-2
CONF I GUR ATION
CONF I GUR ATION
TO CH1 and 4
TO CH2
TO CH3
FROM CH3 PHONO
FROM CH2 PHONO
FROM MIX
FROM FX1
FROM MIDI CONTROLLERS
FROM CH3 PHONO
FROM CH2 PHONO
TO CH1 and 4
TO CH2
TO CH3
FROM MIX
FROM FX1
FROM MIDI CONTROLLERS
ASIO DRI VERS
XONE:3D CONFIGURATION UTILITY
DJ PERFORMANCE SOFTWARE
AUDIO SAMPLES AND MEDIA FILES

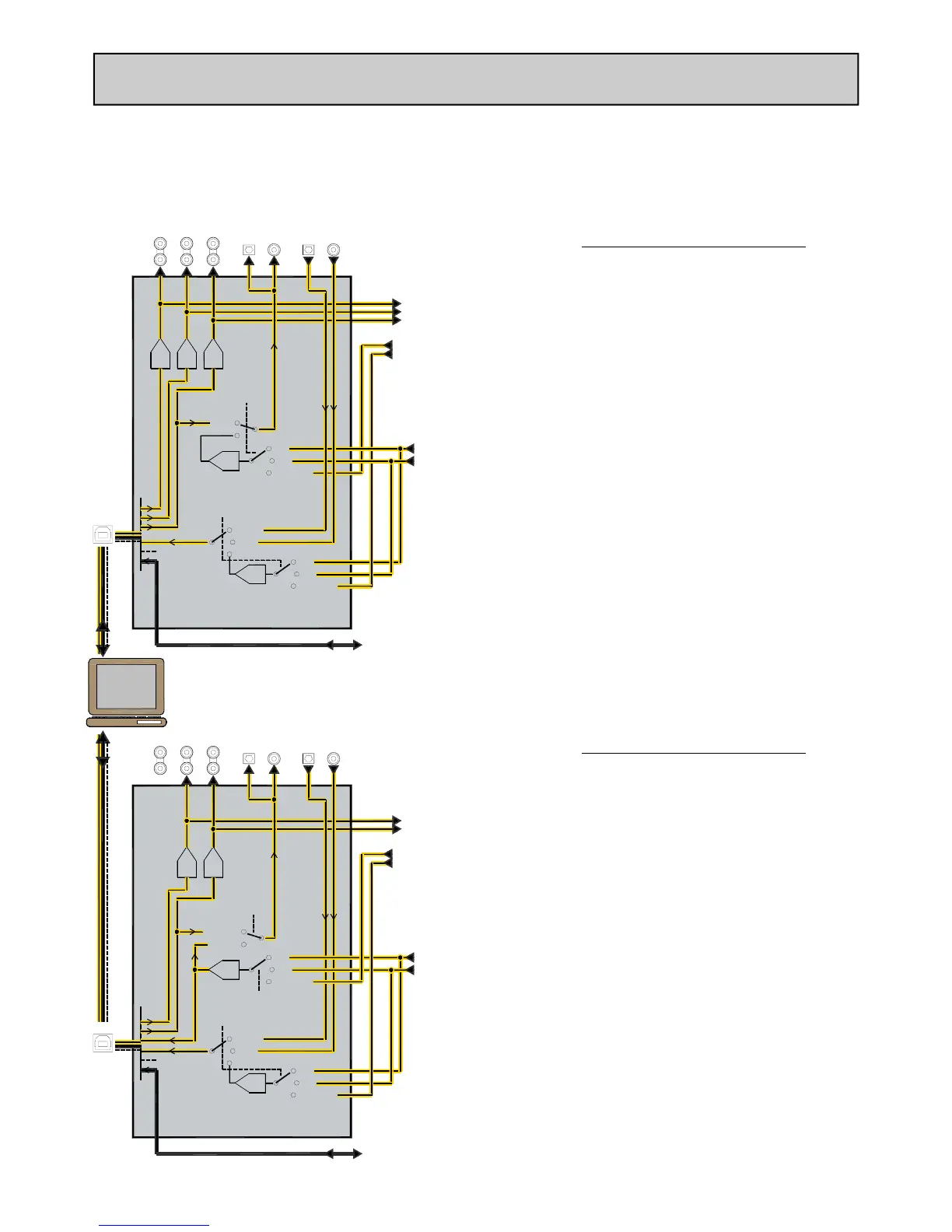

SOUNDCARD OPERATING MODES
MODE 1— 1 STEREO IN, 3 STEREO OUT
This is the default mode.
The soundcard sends one stereo signal to the
computer. Select a soundcard input from:
SPDIF coax input
SPDIF optical input
Main MIX
FX1 send from the channels
CH2 phono input preamp
The soundcard returns three stereo signals
from the computer. These route to rear panel
soundcard output sockets and to the
Xone:3D channel input selectors:
1-2 to CH1 and CH4 inputs
3-4 to CH2 input
5-6 to CH3 input
In this mode the SPDIF coax (RCA) and
optical (Toslink) digital output may be
selected from one of:
Soundcard output 1-2
Main MIX
FX1 send from the channels
CH3 phono input preamp
The Xone:3D soundcard can be configured to operate in one of two modes.
Choose the mode that best suits the audio requirement of the computer
application you are running. Before starting make sure you have installed the
ASIO drivers for your selected USB port as described at the start of this guide.
MODE 2— 2 STEREO IN, 2 STEREO OUT
The soundcard sends two stereo signals to the
computer. Select soundcard input for:
1-2 3-4 from:
Main MIX SPDIF coax input
FX1 send SPDIF optical input
CH3 phono Main MIX
FX1 send
CH2 phono
The soundcard returns two stereo signals
from the computer. These route to rear panel
soundcard output sockets and to the
Xone:3D channel input selectors:
1-2 to CH1 and CH4 inputs
3-4 to CH2 input
5-6 not used, no signal to CH3
In this mode the SPDIF coax (RCA) and
optical (Toslink) digital output may be
selected from one of:
Soundcard output 1-2
Soundcard input 1-2
