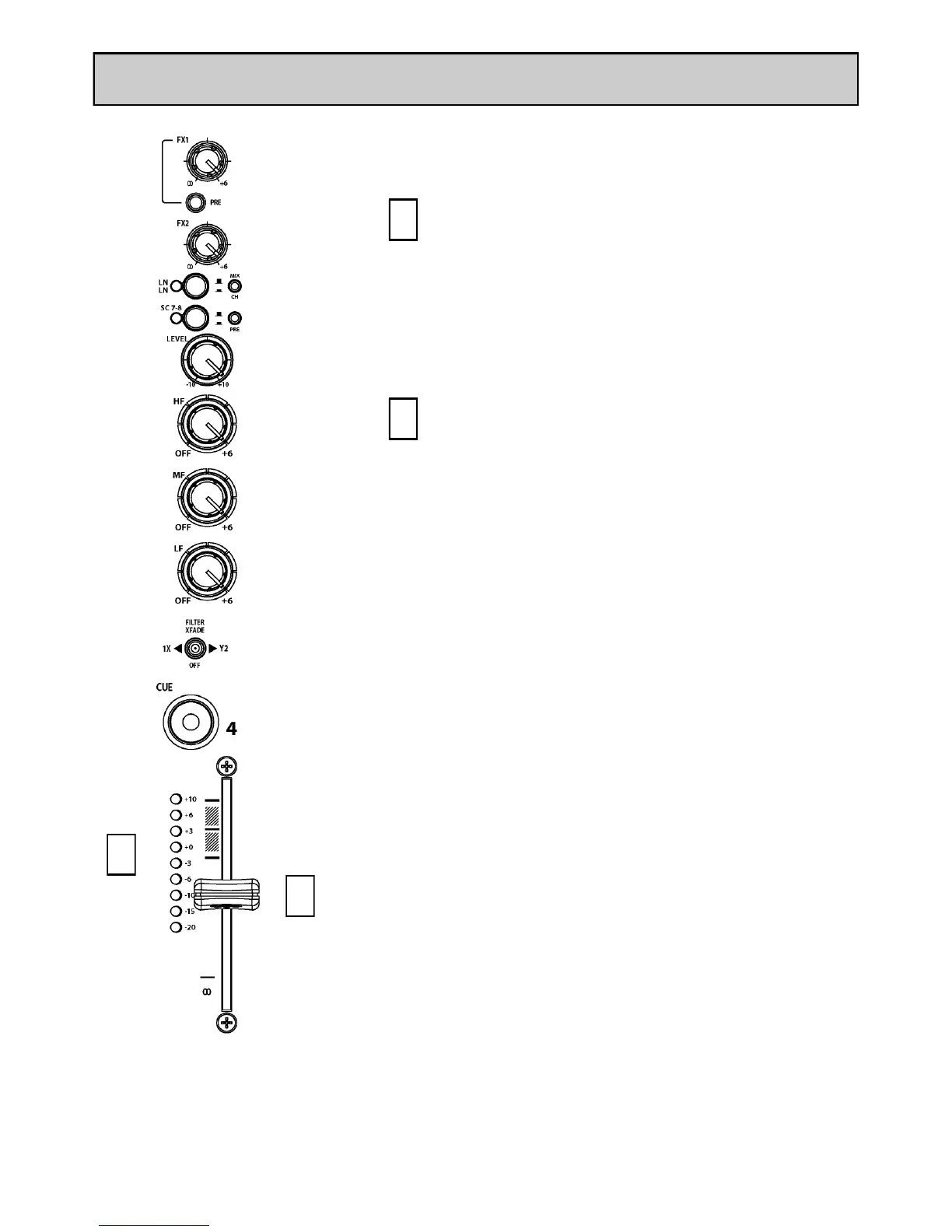

Channel Meter
Displays the channel signal level. It is post-
EQ and pre-fader. This means it is not
affected by the EQ or fader position.
The channel level control should be set so
that the meter averages around ‘0’ with
loudest peaks no higher than ‘+6’. Turn
down the level control if the +10 peak
indicator lights.
7
Channel Fader
A high quality, smooth travel dual-rail fader
adjusts the channel signal level from fully off
to fully on.
8
MIXER SECTION — CHANNEL INPUT

ALLEN & HEATH Xone 4D Specifications

General

Sample rate	96 kHz
Frequency range	22 - 22000 Hz
Channels quantity	20 channels
Digital sound processing	24 bit
Microphone in	Yes
Product color	Black
Video capability	No
Equalizer bands quantity	3

Weight and Dimensions

Depth	358 mm
Width	432 mm
Height	88 mm
Weight	5000 g
Package depth	490 mm
Package width	575 mm
Package height	195 mm
Package weight	6000 g
