Specifications
0dBu = 0.775 Volts rms, +4dBu = 1.23V rms 0dBV = 1 Volt rms, -10dBV = 316mV rms
Max output level XLR +26dBu into >2k ohm
TRS +21dBu into >2k ohm
RCA +15dBu into >10k ohm
Headroom Channels +21dB
Mix to output +23dB
Freq response +0/-1dB 20Hz to 40kHz
Distortion < 0.006% THD+noise @1kHz
Crosstalk < 90dB Channel shutoff @1kHz
MIC EIN 22-22kHz -128dB 150 ohm source
Residual noise XLR -90dBu (-94dB S/N)
TRS -84dBu (-84dB S/N)
RCA -92dBu (-84dB S/N)
Mix noise XLR -86dBu (-90dB S/N)
TRS -83dBu (-83dB S/N)
RCA -91dBu (-83dB S/N)
Power Supply
Internal switch mode power unit with auto sensing mains input.
MAINS IN socket IEC 3 pin
Power lead Country dependent with moulded mains plug supplied
AC mains 100 to 240V AC @ 50/60Hz
Consumption 30W max
Mains fuse rating 100-240V AC T500mA 20mm

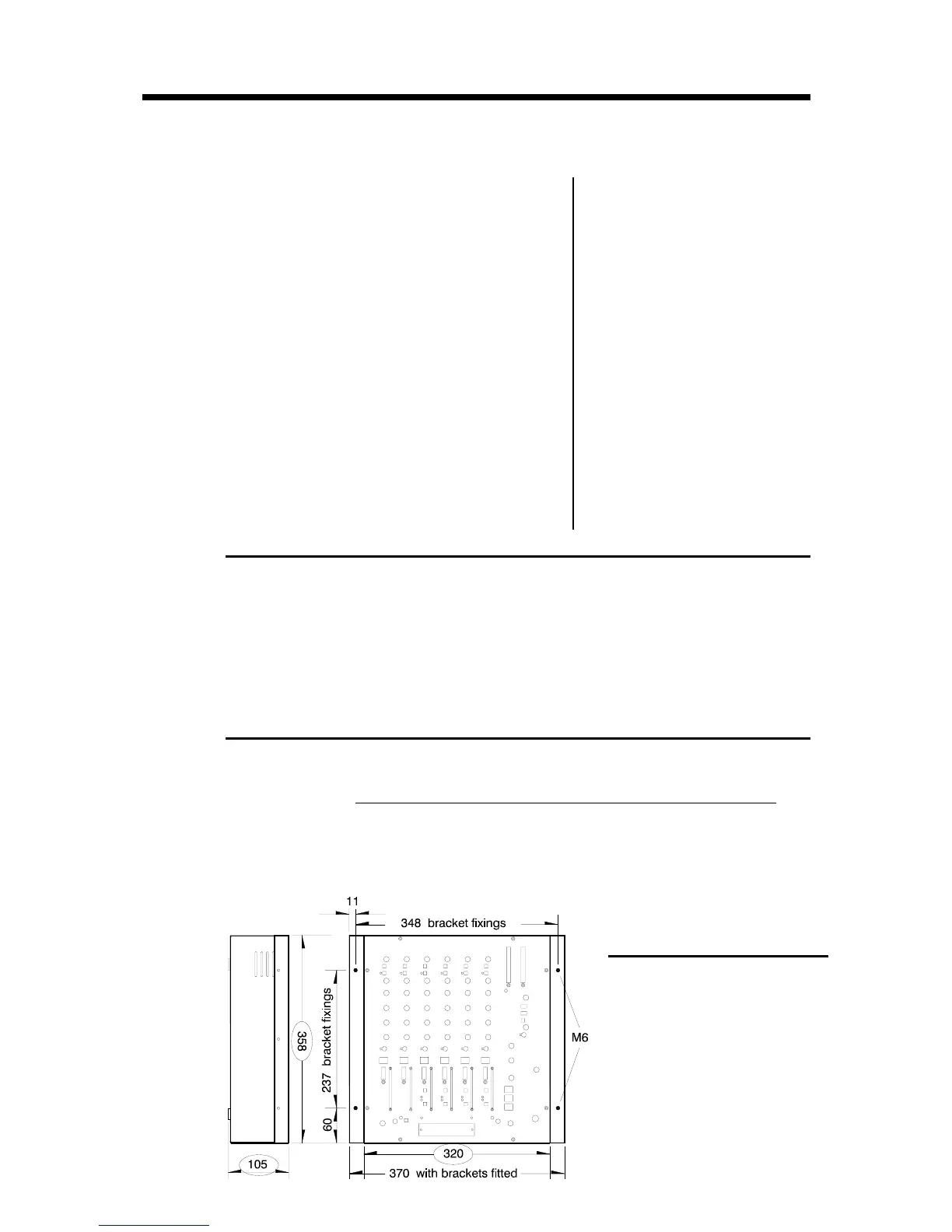

Dimensions and Weights
The console is fitted with rubber feet for desktop operation. An optional screw on rack ear kit is
available for rack or plinth mounting.
Width Height Depth Weight
Desktop 320 mm (12.6”) 105 mm (4.1”) 358 mm (14.1”) 5 kg (11 lbs)
Rack ears fitted 370 mm (14.6”) 105 mm (4.1”) 358 mm (14.1”)
Packed 475 mm (18.7”) 210 mm (8.3”) 395 mm (15.6”) 5.5 kg (12 lbs)
Ch meters Peak reading 4 led
-16, 0, +6, +12 (PK)
Main meters Peak reading 12 led
-20 to +8
Mic EQ 4-Band +/-15dB
100, 250, 2.5k, 10kHz
Music EQ 4-Band +6 / -26dB
100, 250, 2.5k, 10kHz
Ch fader 60mm stereo
Mix fader 100mm stereo
Crossfader 45mm stereo VCA
Replaceable
Filters Dual stereo VCF
Analogue
Panel Stainless steel
Optional Rack Ears
Allows permanent fixing in a plinth or
rack system. Ears bolt on to the
sides of console. Fix in place using
M6 screws or bolts. Contact your
Allen & Heath agent for further
information.
Order code:
XONE2:62-RK
or XONE2:62-RK19
