ALLEN & HEATH XONE DX Service Manual

ALLEN&HEATH XONE:DX service manual AP7894_5 Page - 7 - of 12
How to order parts
Parts must be ordered from our distributor in your territory. A list of international
distributors can be viewed at http://www.allen-heath.com/UK/distributors.asp
UK parts must be ordered through an appointed A&H dealer or service centre. A list of UK
service centres can be viewed at http://www.allen-heath.com/UK/service_centres.asp
PARTS IDENTIFICATION

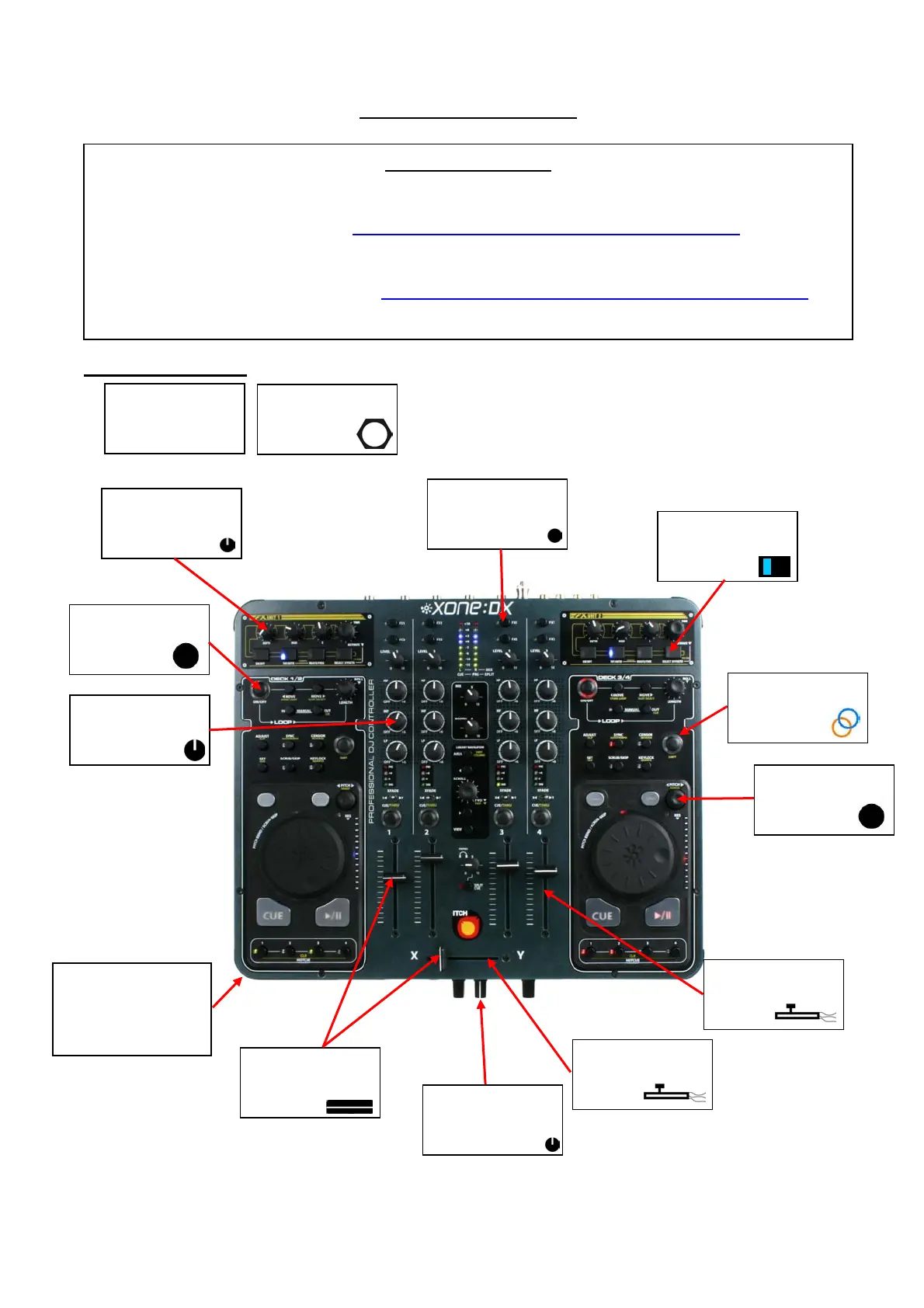

EXTERIOR PARTS
Knob large
black white line
AJ7305
Knob small
black white line
AJ7304
Knob small
black white line
AJ7304
Knob black
AJ6379
Push button
small
AJ4251
Fader knob
Xfader knob
AJ5320
Push button
black
AJ7609
Xfader
003-579
Channel fader
003-860
Front panel
AA7428
Light pipe
AJ5324
Pot nut black
AB8172
Button black
AJ7345
Corner plastic
moulding
Outside AA7717-
Inside AA7717-1
