Allen & Heath 15 ZED-12FX, 16FX & 22FX User Guide

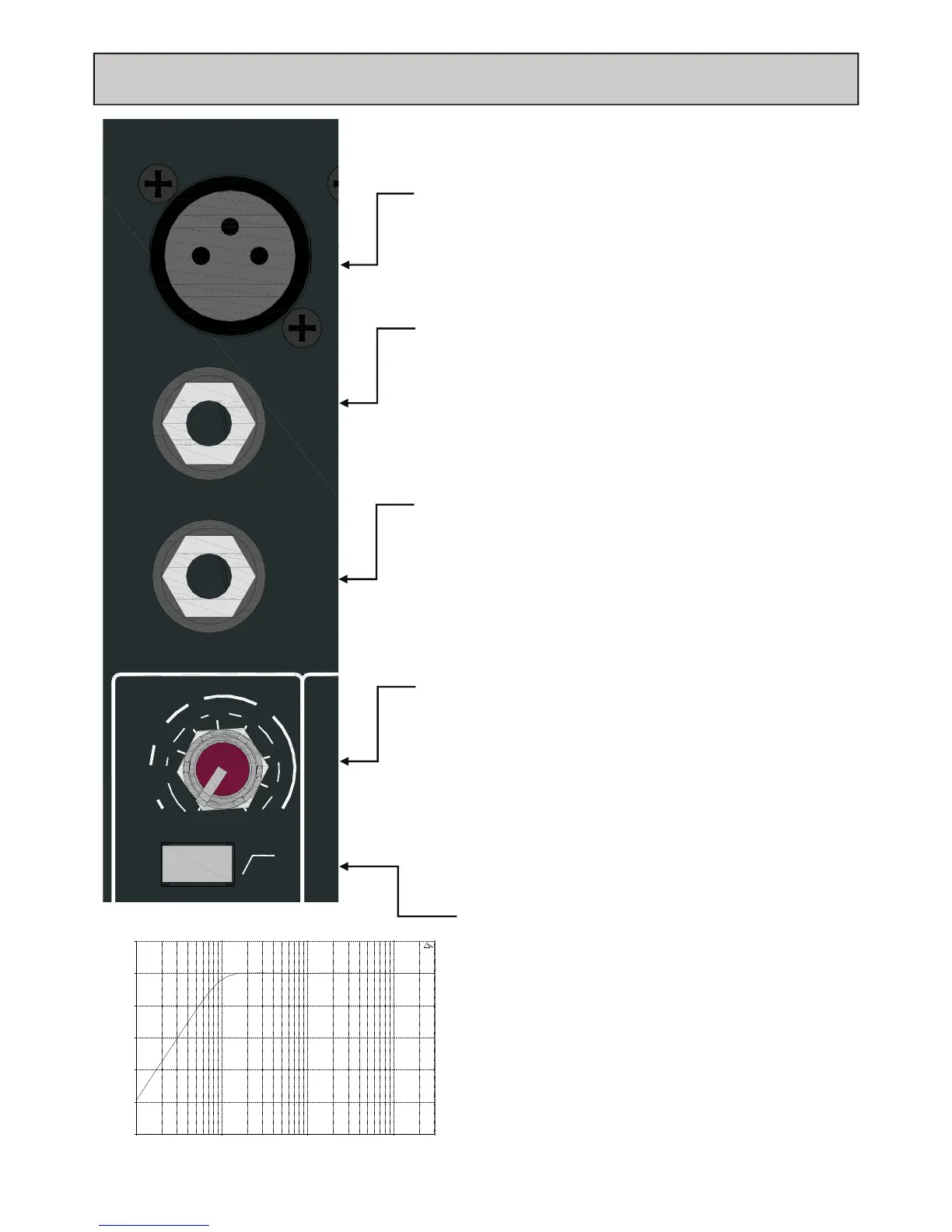

MONO INPUT CHANNEL
Mic Input Socket
Standard 3-Pin XLR socket wired as Pin 1=Chassis, Pin 2=hot
(+), Pin 3=Cold (-).
Line Input Jack Socket
Standard 1/4” (6.25mm) Jack socket for balanced or unbalanced line
level signals. Wired Tip=Hot(+), Ring=cold (-), Sleeve=Chassis.
The Line input overrides the Mic input, so if you want to hear
something plugged in to the xlr socket, make sure nothing is
plugged into the Line input.
Insert Jack Socket
Standard 1/4” (6.25mm) Jack socket for unbalanced insert send and
return signals. Wired Tip=send, Ring=return, Sleeve=Chassis.
Nominal level is 0dBu. The insert point is after the 100Hz filter and
before the EQ.
Gain Control
This adjusts the gain of the input amplifier to match the signal level
of the input. The gain is varied from –6dB (attenuation) to +63dB
for signals plugged in to the xlr socket (Mic Input) and –10dB to
+26dB for signals plugged into the Line input jack.
100Hz Hi-pass Filter
The Hi-pass filter is used for reducing pop noise and rum-
ble from microphone signals. It is a 2-pole (12dB per oc-
tave) filter with a corner frequency set at 100Hz.
The filter affects signals from both Mic XLR and Line jack
socket.
10.00 Hz 100.00 1000.00 10000.00 30000.00
-50.00
-40.00
-30.00
-20.00
-10.00
0.00
10.00
dBr
-6-10 63 26
GAIN
MIC
0
LINE
10
0
10
20
30
40
50
100Hz
INSERT
1
LINE
MIC
