ALLEN & HEATH ZED 12FX Service Manual

ALLEN&HEATH ZED 2 bus FX service manual AP7232_2 Page - 7 - of 11
How to order parts
Parts must be ordered from our distributor in your territory. A list of international
distributors can be viewed at http://www.allen-heath.com/UK/distributors.asp
UK parts must be ordered through an appointed A&H dealer or service centre. A list of UK
service centres can be viewed at http://www.allen-heath.com/UK/service_centres.asp
Switch cap
Round Grey
AJ3955
Switch cap
Rectangle
White
AJ2962
Switch cap
Rectangle
Grey
AJ2865
Switch cap
Squre Grey
AJ2864

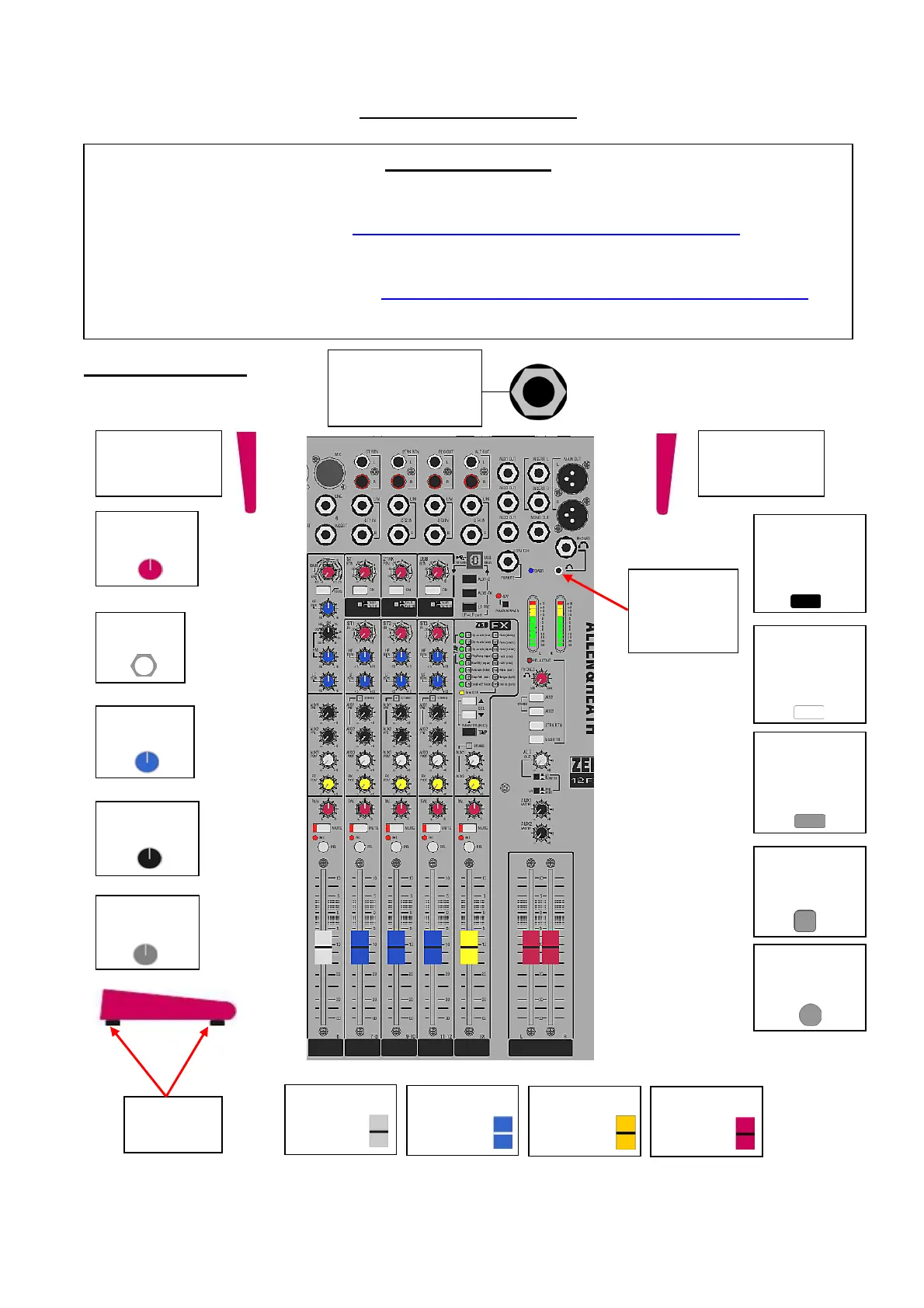

PARTS IDENTIFICATION
EXTERIOR PARTS
Knob Grey
AJ2078A
Knob Blue
AJ2075A
Knob Red
AJ6949
Knob Black
AJ6106A
Switch cap
Rectangle
Black
AJ3228
Fader knob
Grey
AJ6278
Fader knob
Blue
AJ6237
Fader knob
Black
AJ8080
Plastic side
moulding left
AA6741-LJIT
Plastic side
moulding right
AA6741-RJIT
Feet
AK0102
Nut pot
AB8050
Nut & socket
(supplied with complete
socket)
AL6893
Fader knob
Red
AJ6950
Small
headphone
socket
A
L5323

ALLEN & HEATH ZED 12FX Specifications

General

Frequency range	10 - 30000 Hz
Channels quantity	16 channels
Digital sound processing	- bit
Number of EQ bands per channel	3
DJ mixer	-
Product color	Grey, Red
Video capability	No
MIDI out	Yes
Headphone connectivity	3.5 mm/6.35 mm
Total Harmonic Distortion (THD)	0.004 %

Weight and Dimensions

Depth	465 mm
Width	385 mm
Height	98 mm
Weight	6500 g
Package weight	10500 g
