10 POINT I/O Dual Port EtherNet/IP Adapter
Publication 1734-IN040C-EN-P - December 2018
Network Address Thumbwheel
Refer to publication POINT I/O and ArmorPOINT® I/O Dual Port EtherNet/IP
Adapter User Manual, 1734-UM017
for more information.
If you set the switches to an invalid number (for example, 000 or a value greater than 254
excluding 888), the adapter checks to see if you enabled DHCP.
DHCP Enabled and Not Enabled
DHCP State Adapter Action
Enabled Asks for an address from a DHCP server. The DHCP server also assigns other
Transport Control Protocol (TCP) parameters.
Not enabled Uses the IP address (along with other TCP configurable parameters) stored in
nonvolatile memory.
WARNING: When you change switch settings while power is on, an electrical
arc can occur. This could cause an explosion in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.

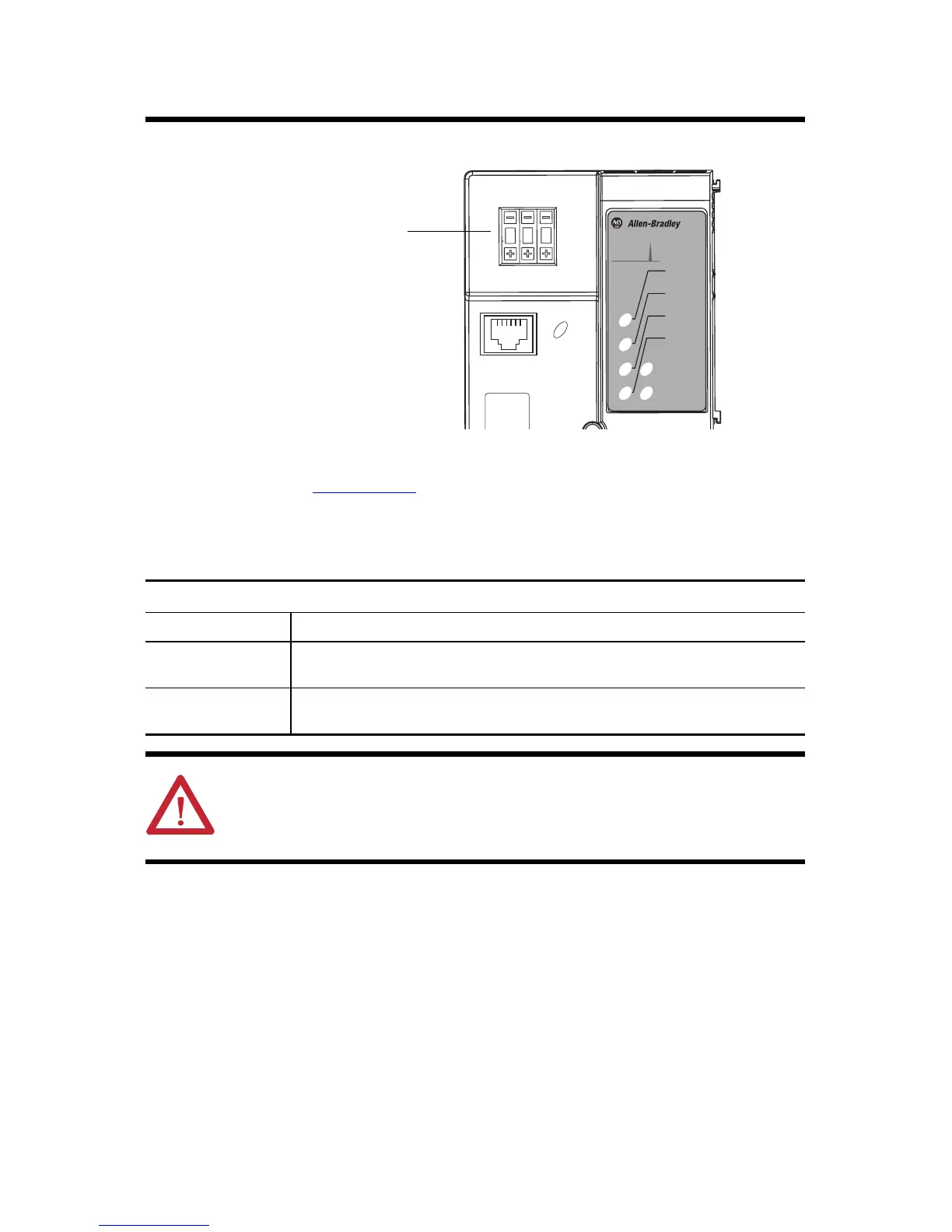

02
0
1734-AENTR
Module
Status
Network
Activity
Network
Status
Point Bus
Status
System
Power
Field
Power
POINT I O
Link 1
Activity/
Status
SS
44848
Network node address
pen push thumbwheel –
Press the center of either
the + or - buttons to change
the number
