Valid settings range from 001…254. When you use the thumbwheel to assign an address
and set it to 001, the adapter gateway address is set to 0.0.0.0. and the subnet mask is
255.255.255.0. When you use the thumbwheel to assign an address and set it between
002...254, the adapter gateway address is set to 192.168.1.1.
The adapter does not have a host name assigned, or use any Domain Name System when
using the thumbwheel settings.

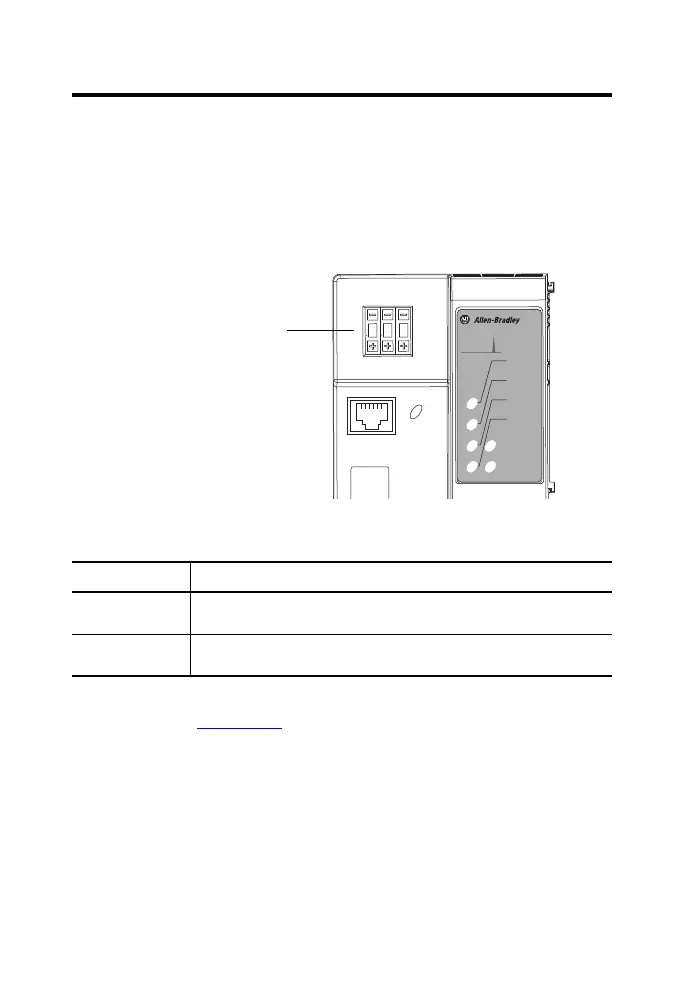

Network Address Thumbwheel
If you set the switches to an invalid number (for example, 000 or a value greater than 254
excluding 888), the adapter checks to see if you enabled DHCP.
Refer to POINT I/O and ArmorPOINT I/O Dual Port EtherNet/IP Adapter User
Manual, publication 1734-UM017
for more information on configuration settings.
DHCP State Adapter Action
Enabled Asks for an address from a DHCP server. The DHCP server also assigns other
Transport Control Protocol (TCP) parameters.
Not enabled Uses the IP address (along with other TCP configurable parameters) stored in
nonvolatile memory.
02
0
1734-AENTR
Module
Status
Network
Activity
Network
Status
Point Bus
Status
System
Power
Field
Power
POINT I O
Link 1
Activity/
Status
SS
44848
Network node address
pen push thumbwheel –
Press the center of either
the + or - buttons to change
the number
