24 Compact I/O High-speed Counter Module
Publication 1769-IN030B-EN-P - October 2010
Maximum Output Current per Point - 5V DC Operation
Maximum Output Current per Module - 5V DC Operation
Temperature Derated Current
0…40 °C (-32…104 °F) 1 A
60 °C (140 °F) 0.5 A
Temperature Derated Current
0…40 °C (-32…104 °F) 4 A
60 °C (140 °F) 2.0 A
(-32) (50)
(68)
(86) (104) (122) (140)
(158)

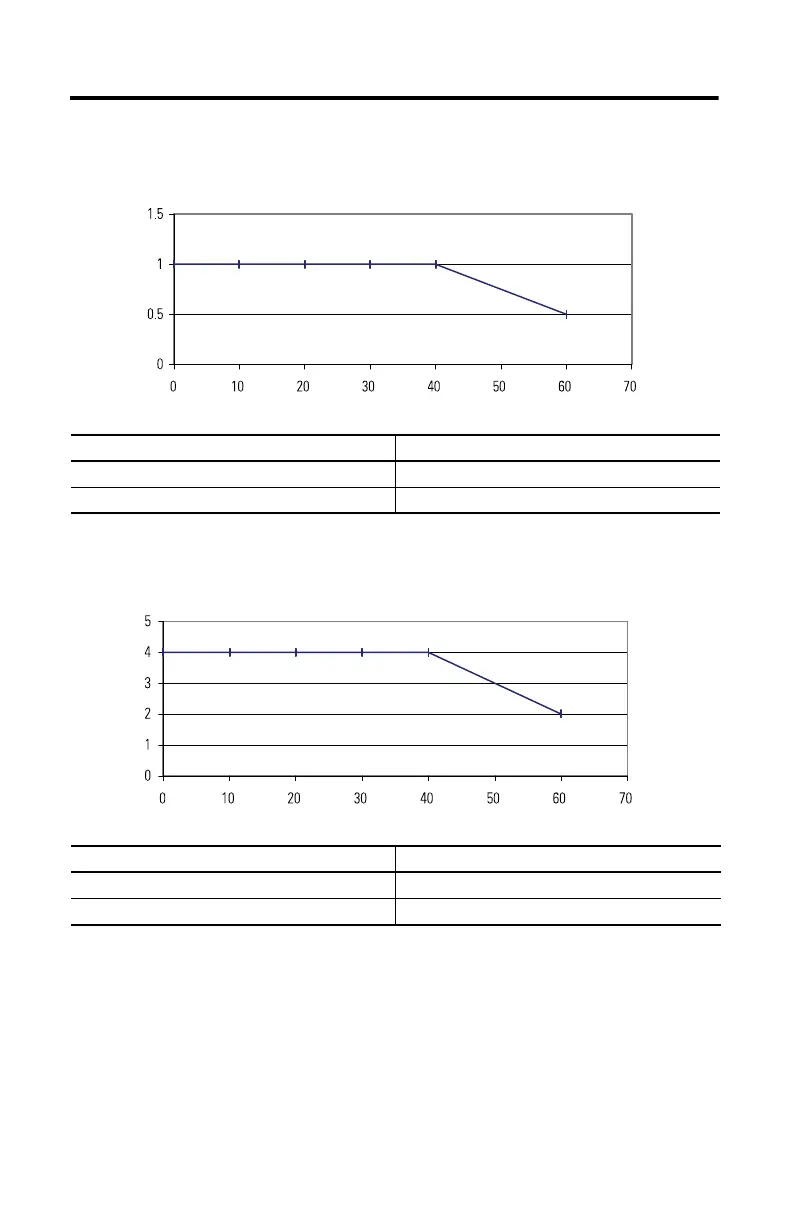

Current Derating Based on Temperature
Ambient Temperature, °C (°F)
0.5 A at 60 °C (140 °F)
45206
Current per Point (A)
(-32)
(50)
(68) (86)
(104) (122) (140)
(158)
Current Derating Based on Temperature
Ambient Temperature, °C (°F)
2 A at 60 °C (140 °F)
45207
Current per Module (A)
