Compact I/O High-speed Counter Module 25
Publication 1769-IN030B-EN-P - October 2010

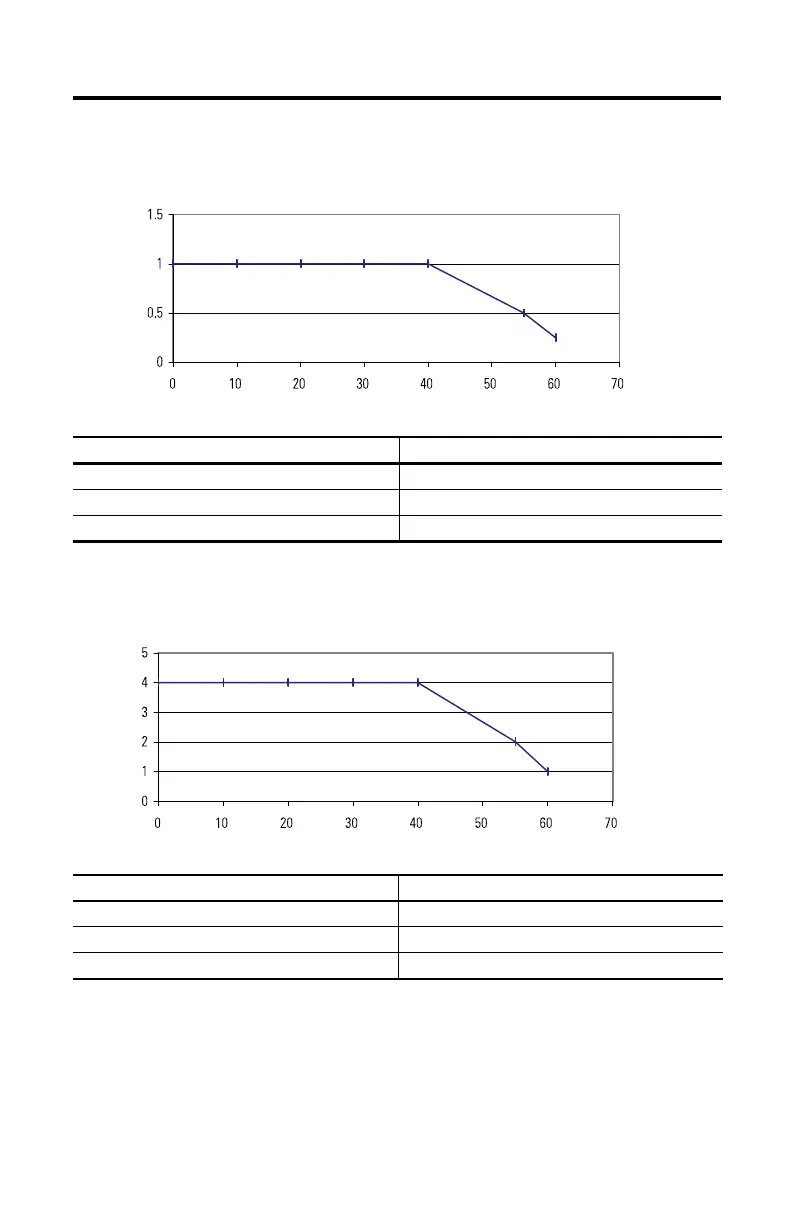

Maximum Output Current per Point - 24V DC Operation
Maximum Output Current per Module - 24V DC Operation
Temperature Derated Current
0…40 °C (-32…104 °F) 1 A
55 °C (131°F) 0.5 A
60 °C (140°F) 0.25 A
Temperature Derated Current
0…40 °C (-32…104 °F) 4 A
55 °C (131 °F) 2 A
60 °C (140 °F) 1 A
(-32) (50) (68) (86) (104) (122) (140)
(158)
Current Derating Based on Temperature
Ambient Temperature, °C (°F)
45208
0.25 A at 60 °C (140 °F)
Current per Point (A)
(-32)
(50) (68) (86)
(104)
(122)
(140) (158)
Current Derating Based on Temperature
Ambient Temperature, °C (°F)
45209
1 A at 60 °C (140 °F)
Current per Module (A)
