Appendix B Replacement Considerations

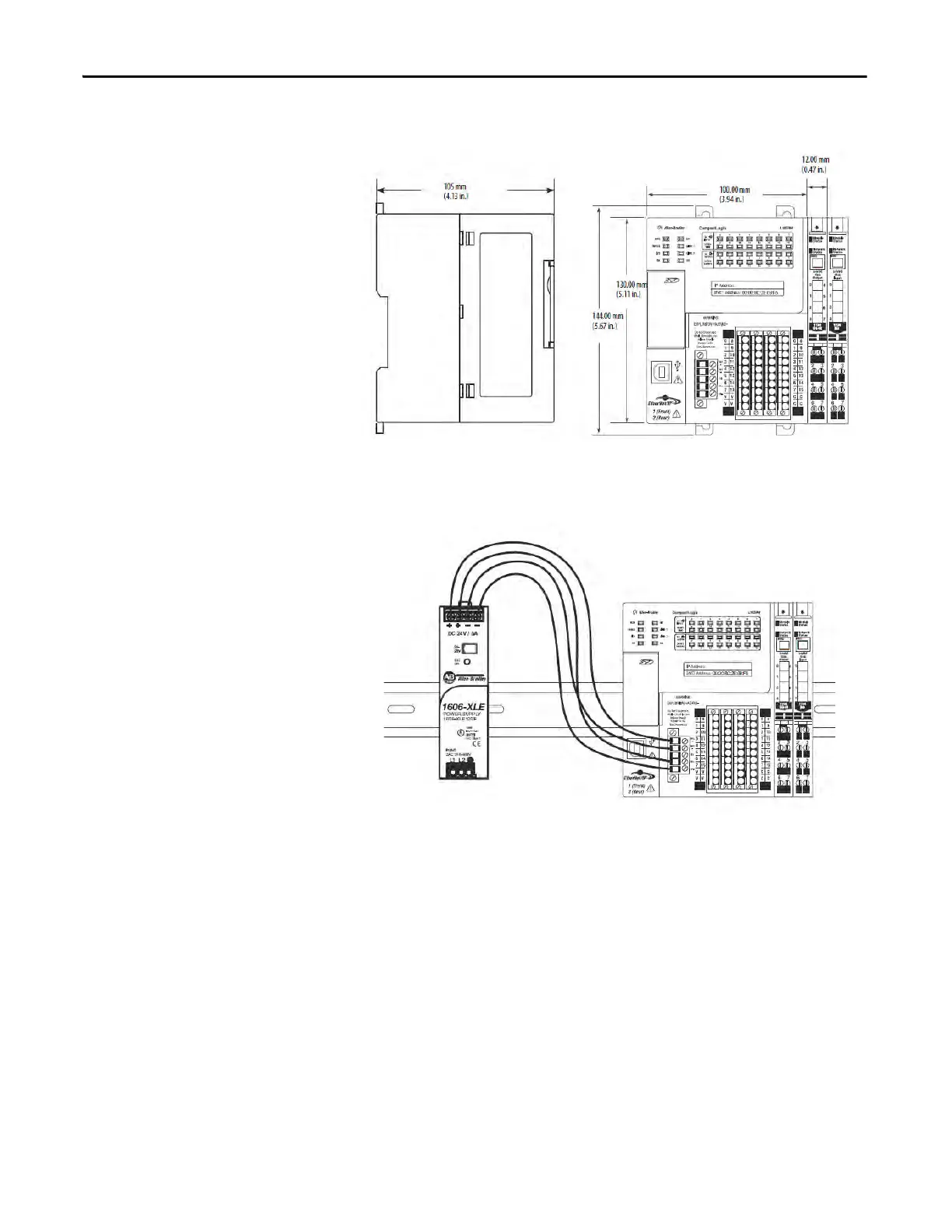

Dimensions
There are no dimension differences between the Series A controller and the
Series B controller.
Power Supply Wiring
Series B Wiring
