Rockwell Automation Publication IASIMP-QS023B-EN-P - December 2012 71
Create a Logix Designer Project Chapter 5

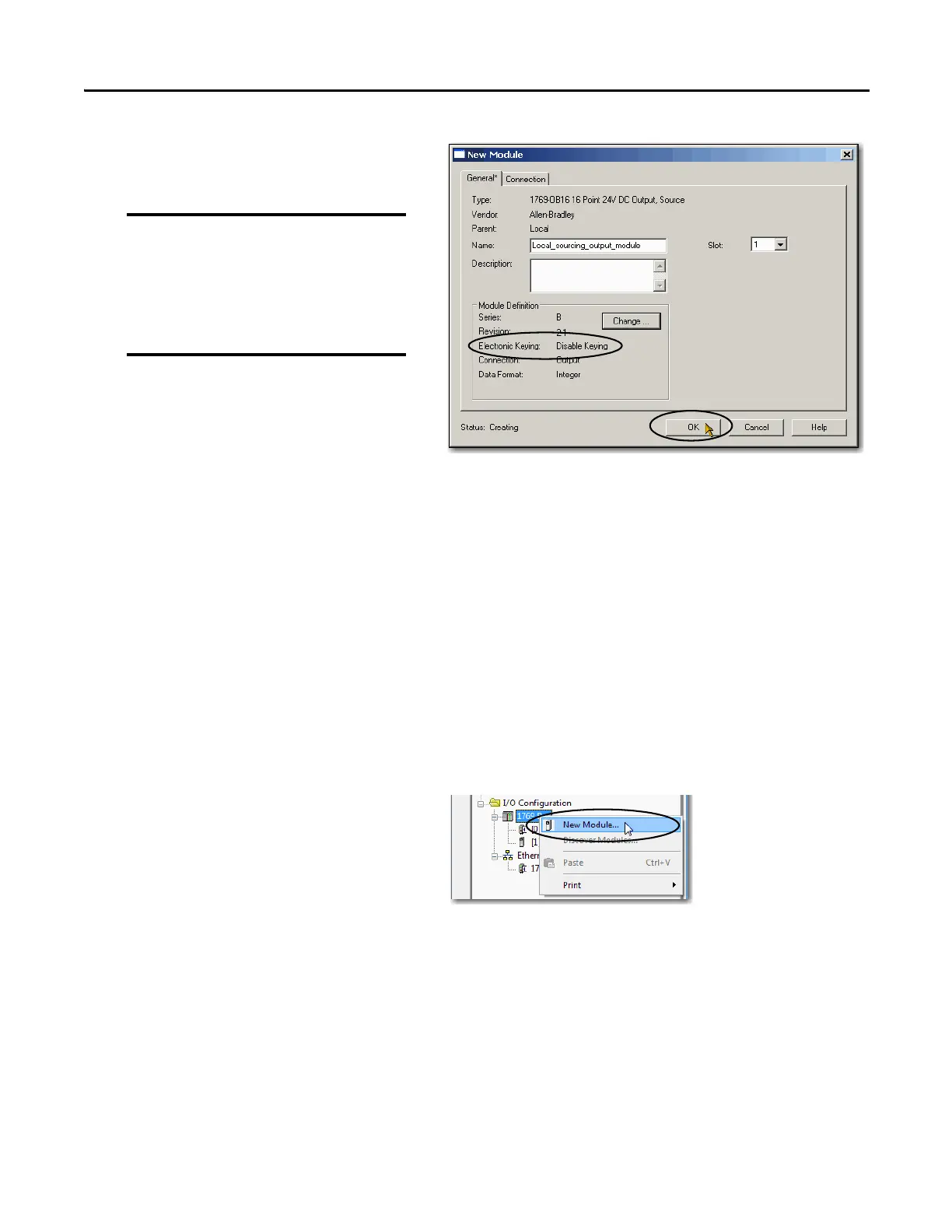

4. Use the tabs to create the
parameters for the I/O module.
5. When the module configuration is
complete, click OK.
The module is added to the I/O
Configuration.
Add the 1769-SDN to the Project
1. Make sure the 1769-SDN DeviceNet scanner module is installed in the
CompactLogix 5370 L3 controller system.
There can be a maximum of three modules between the 1769-SDN module and the
power supply.
2. Right-click 1769 Bus and choose
New Module.
For the purposes of this
exercise, make sure you
change the Module Definition
parameters so Electronic
Keying is set to Disable
Keying.
