Rockwell Automation Publication 1769-UM021G-EN-P - October 2015 187
Use I/O Modules with CompactLogix 5370 L2 Controllers Chapter 8
Embedded Analog I/O Points
The 1769-L24ER-QBFC1B and 1769-L27ERM-QBFC1B controllers support
four embedded universal analog inputs that can function as differential or single-
ended inputs and two embedded standard analog outputs that can function as
single-ended outputs. The inputs and outputs are considered channels. Each
channel configuration offers multiple configuration options.
Tab le 10
lists the available embedded analog input channel types and ranges for

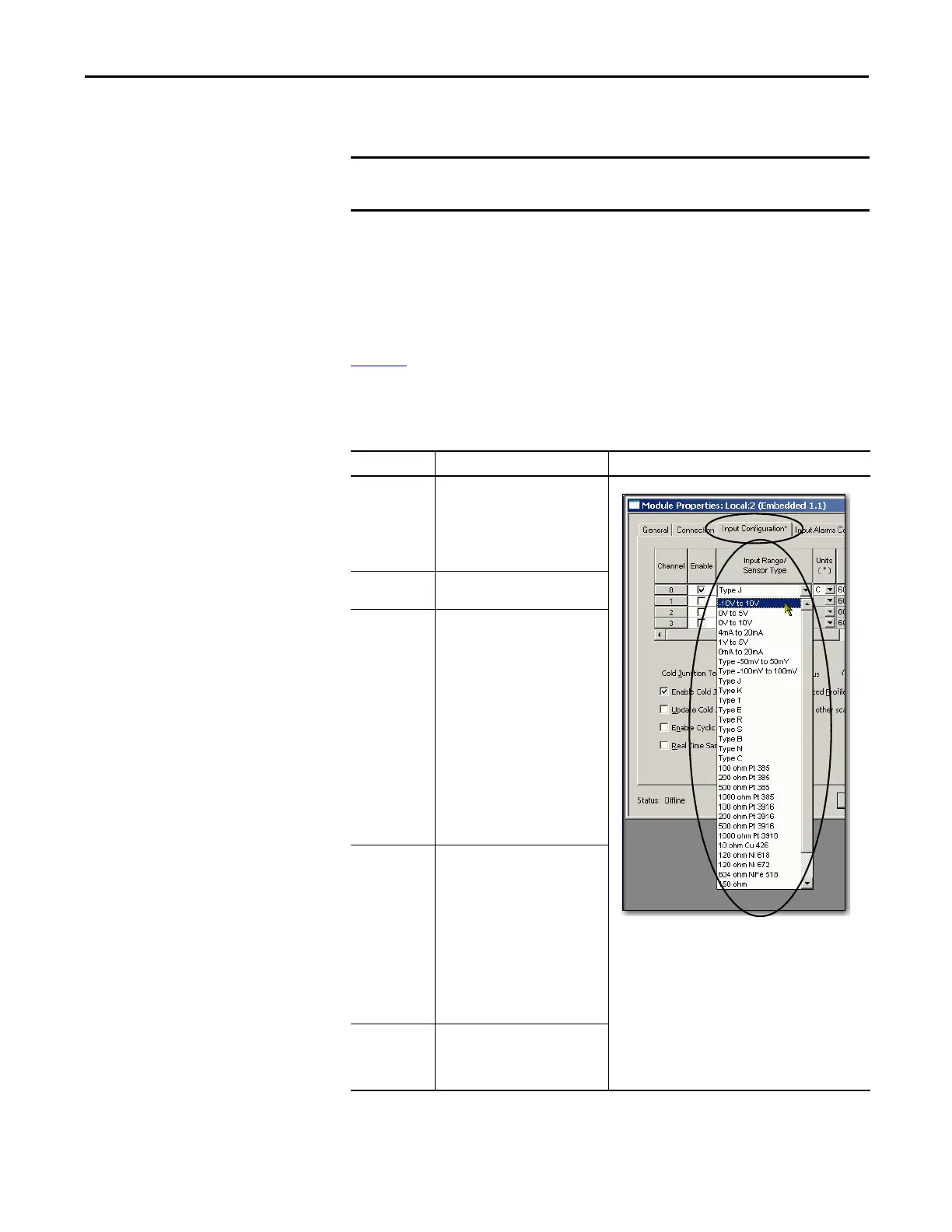

the channel type. The configuration choices are made on the Input
Configuration tab of the Module Properties dialog box, as shown in the table.
IMPORTANT
The embedded analog I/O points are available on only the 1769-L24ER-QBFC1B
and 1769-L27ERM-QBFC1B controllers.
Table 10 - Input Types
Input Type Input Ranges Project Configuration
Voltage • Type -50…50 mV
• Type -100…100 mV
• 0…5V
• 1…5V
• 0…10V
• -10V…10V
Current • 0…20 mA
• 4…20 mA
Thermocouple • J
• K at 1370…1372 °C
(2498…2501.6 °F)
• K at -200…1370 °C
(-328…2498 °F)
• T
• E
• S and R at 0…1768 °C
(32…3214.4 °F)
• S and R at -50…0 °C
(-58…32 °F)
• B at 300…1820 °C
(572…3308 °F)
• B at 250…300 °C (482…572 °F)
• N
• C
RTD • 100 Ω Platinum 385
• 200 Ω Platinum 385
• 500 Ω Platinum 385
• 1000 Ω Platinum 385
• 100 Ω Platinum 3916
• 200 Ω Platinum 3916
• 500 Ω Platinum 3916
• 1000 Ω Platinum 3916
• 10 Ω Copper 426
• 120 Ω Nickel 618
• 120 Ω Nickel 672
• 604 Ω Nickel-Iron 518
Resistance • 0…150 Ω
• 0…500 Ω
• 0…1000 Ω
• 0…30
00 Ω
