188 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 8 Use I/O Modules with CompactLogix 5370 L2 Controllers

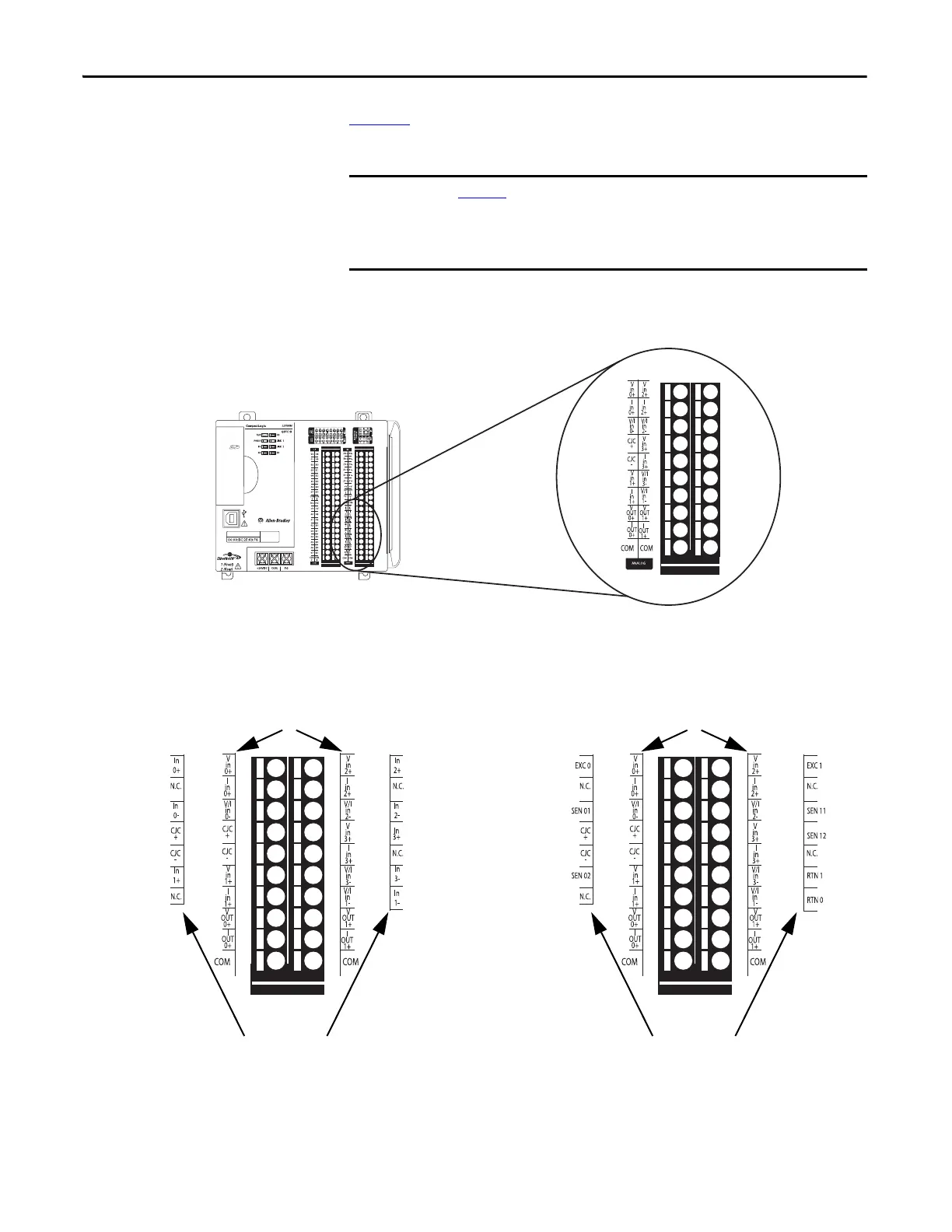

Figure 28 shows the embedded analog I/O points and how each termination
point is used with different analog input types.
Figure 28 - 1769-L27ERM-QBFC1B Controller Embedded Analog I/O Wiring Termination Points
Figure 28 shows the embedded analog I/O points on the
1769-L27ERM-QBFC1B controller. The embedded analog I/O points on the
1769-L24ER-QBFC1B and 1769-L27ERM-QBFC1B controllers are organized and
wired the same.
Terminal Point Labels Terminal Point Labels
Thermocouple Input Type Connections
RTD and Resistance Input Type Connections
To Next Page
