Rockwell Automation Publication 1769-UM021G-EN-P - October 2015 233
Use I/O Modules with CompactLogix 5370 L2 Controllers Chapter 8
Monitor I/O Modules
With CompactLogix 5370 L2 controllers, you can use the following options to
monitor I/O modules:
• QuickView™ Pane below the Controller Organizer
• Connection tab in the Module Properties dialog box
• Programming logic to monitor fault data so you can act.

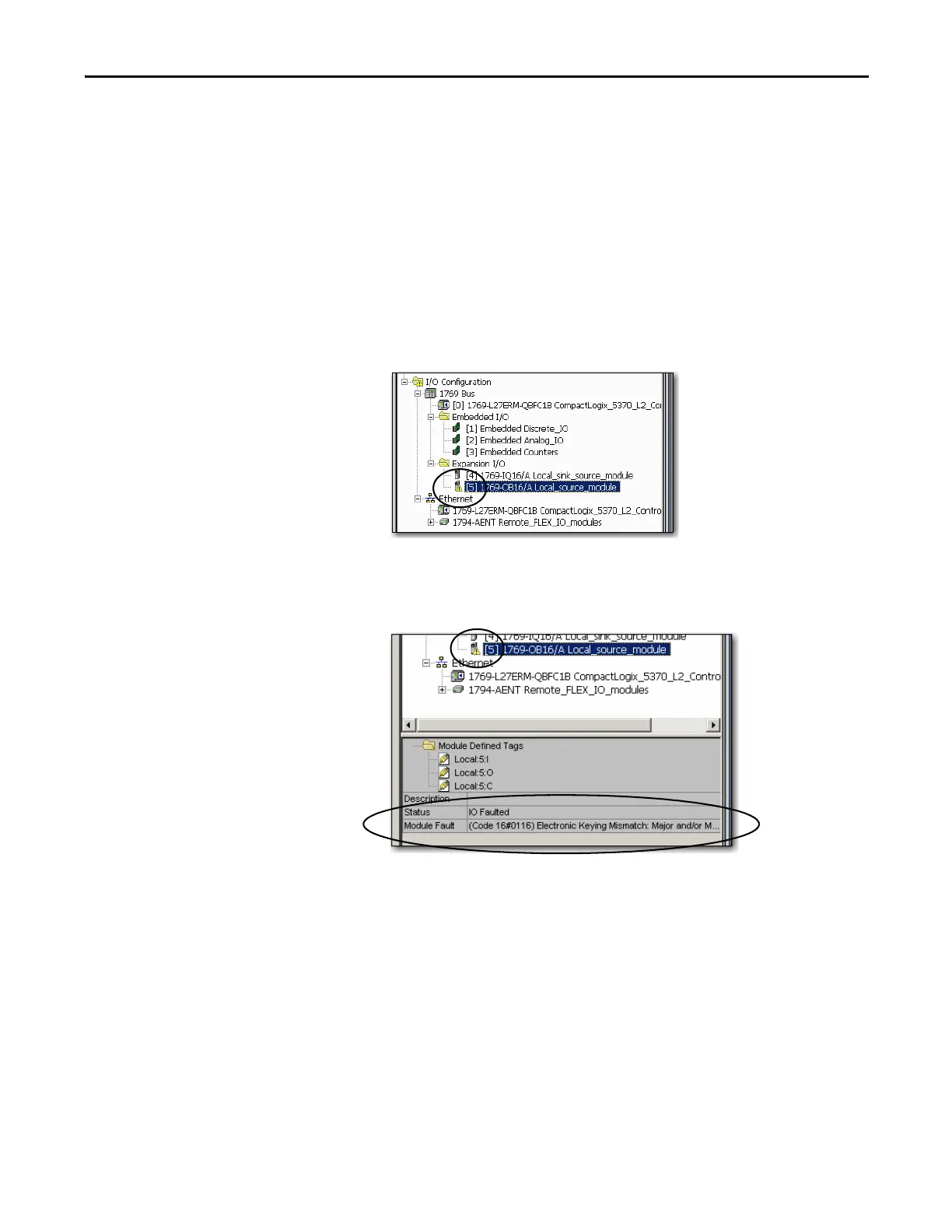

When a fault occurs on an I/O module, a yellow triangle on the module listing in
the Controller Organizer alerts you to the fault, as shown in the following
graphic.
The following graphic shows the Quick View Pane, which indicates the type of
fault.
