Appendix C Connect Power to the Series A L1 CompactLogix 5370 Controllers

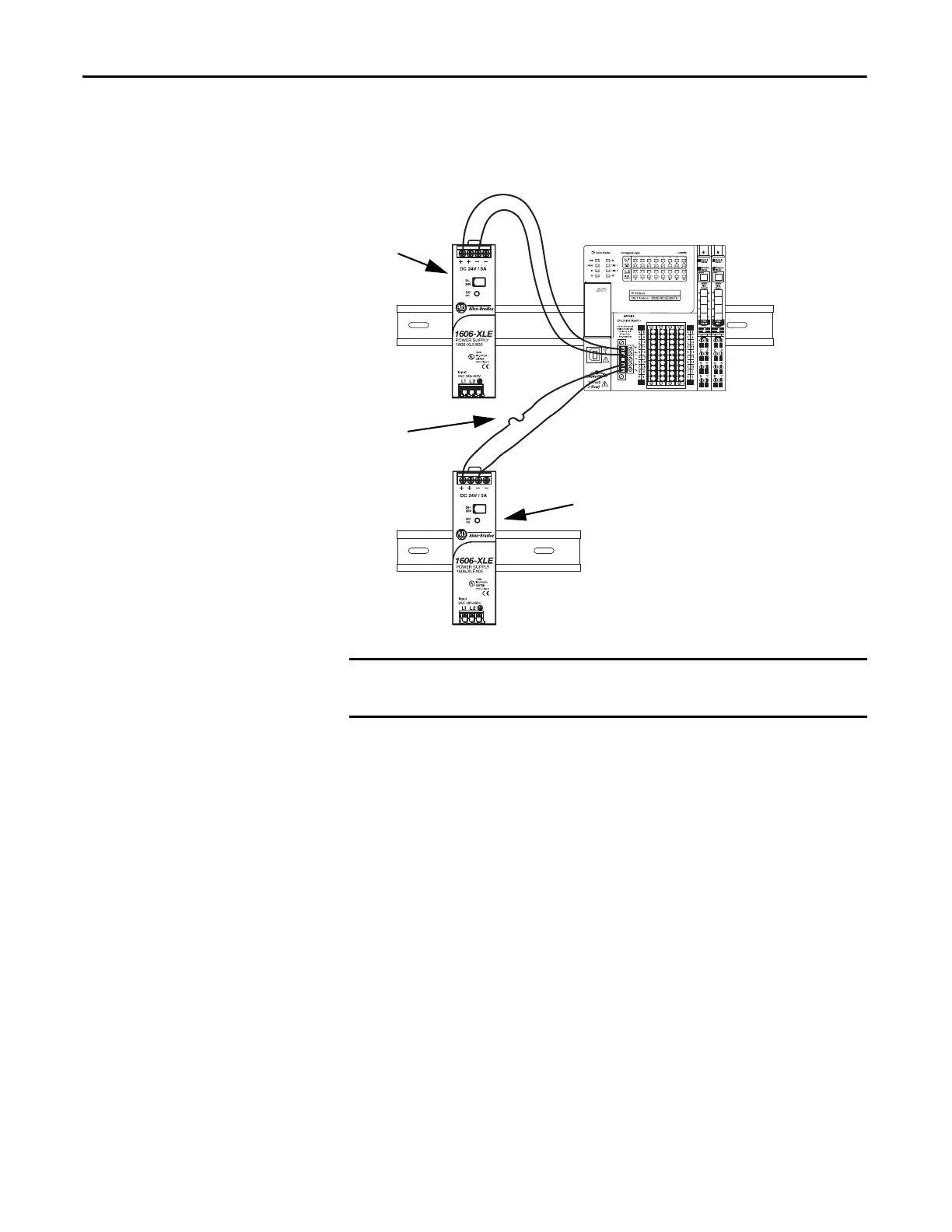

The following graphic shows separate external 24V DC power supplies
connected to the VDC+/VDC- and FP+/FP- terminals on the removable
connector, respectively.
Install a user-replaceable fuse with overcurrent protection of 4…6 A @
52.5…68.25 A
2
t in line between the incoming power and the FP+ terminal.
IMPORTANT: No wires are
connected to the NC terminal.Fuse
FP Power Supply
VDC Power Supply
