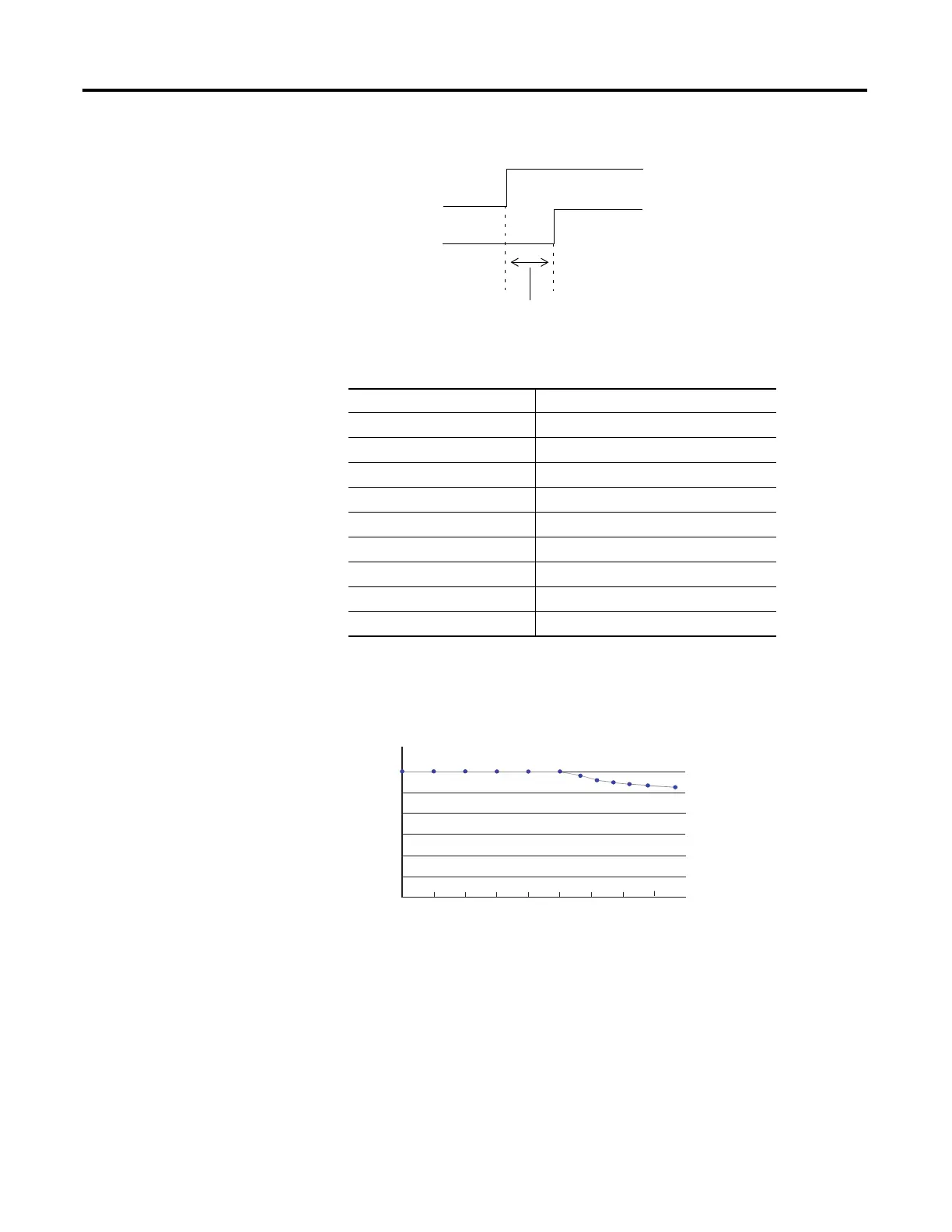

70 Rockwell Automation Publication 2080-UM004C-EN-E - March 2015
Appendix A Specifications
Temperature Derating
Maximum input voltage – 24V DC operation
(1) Phase separation is the recognition of phase time of A input and B input.
Output Specifications – 2080-MOT-HSC
Attribute Value
Number of outputs 16 (1 physical output; 15 virtual)
Output voltage range 5…30V DC
Output on-state current, max 0.5 A
Output on-state current, min 1 mA
On-state voltage drop, max 0.5V DC
Off-state leakage current, max 0.5 mA
Turn ON time, max 2 ms
Turn OFF time, max 2 ms
Reverse polarity protection None
Input A
Input B
Phase separation
-20
-10 0
10
20
30 40 50 60
70
0
5
10
15
20
25
30
35
Volts (DC)
Ambient Temperature (°C)
Voltage Derating Based on Temperature
26.4V DC @ 65 °C
