4 Bulletin 2097 AC Line Filters
Publication 2097-IN003D-EN-P - November 2011

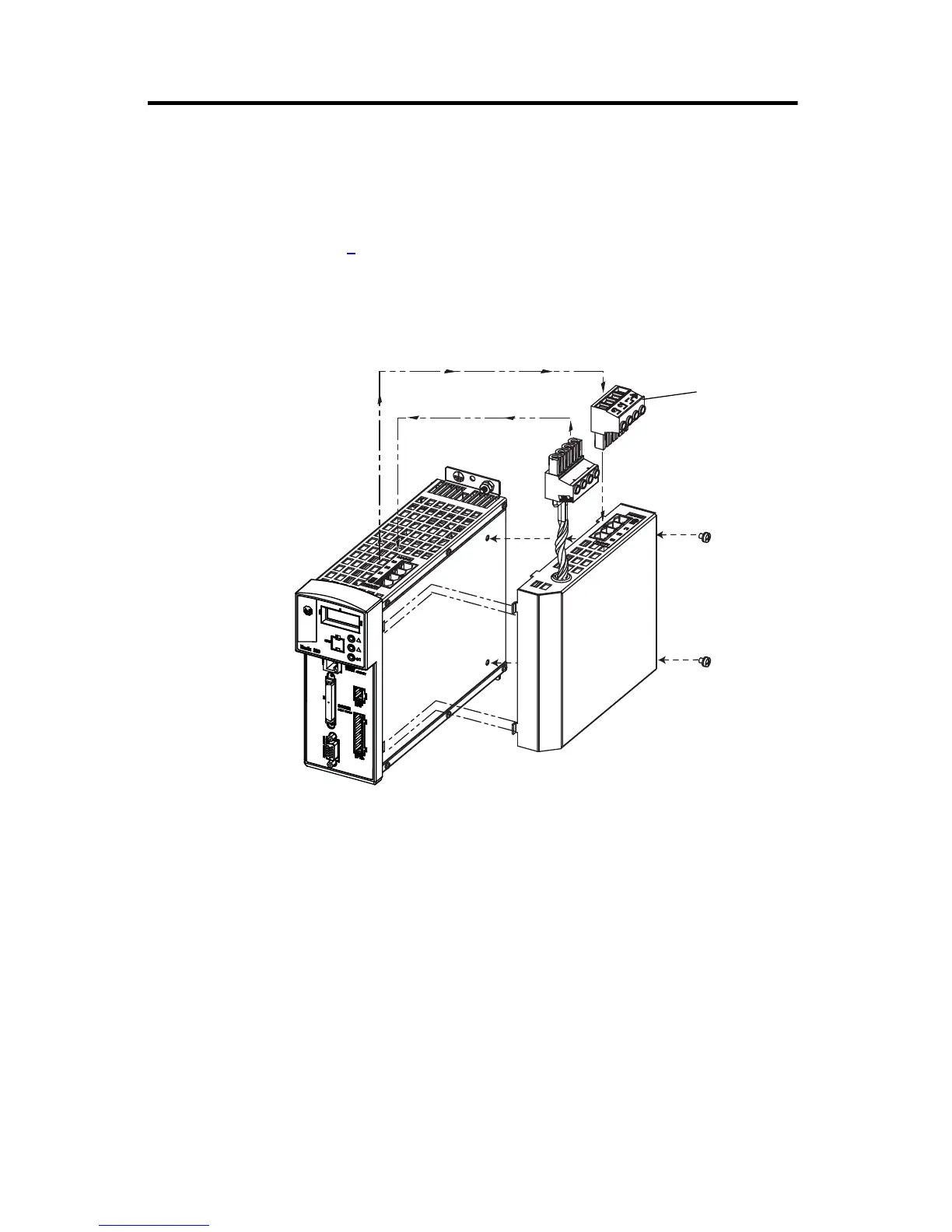

Install the AC Line Filter (side-mount)
The following steps apply to the installation of AC line filter, catalog numbers 2097-F1 and
2097-F2.
1. Use Figure 2 on page 7
to determine the space required on the right side of your drive to
install your side-mount AC line filter.
Adjust drive location as necessary.
2. Mount the AC line filter to the drive with two M4 x 0.7 steel machine screws and torque
to 1.1 N•m (9.8 lb•in).
3. Mount drive and filter assembly to the cabinet panel by using three M4 x 0.7 steel
machine screws and torque to 1.1 N•m (9.8 lb•in).
