Bulletin 2097 AC Line Filters 5
Publication 2097-IN003D-EN-P - November 2011

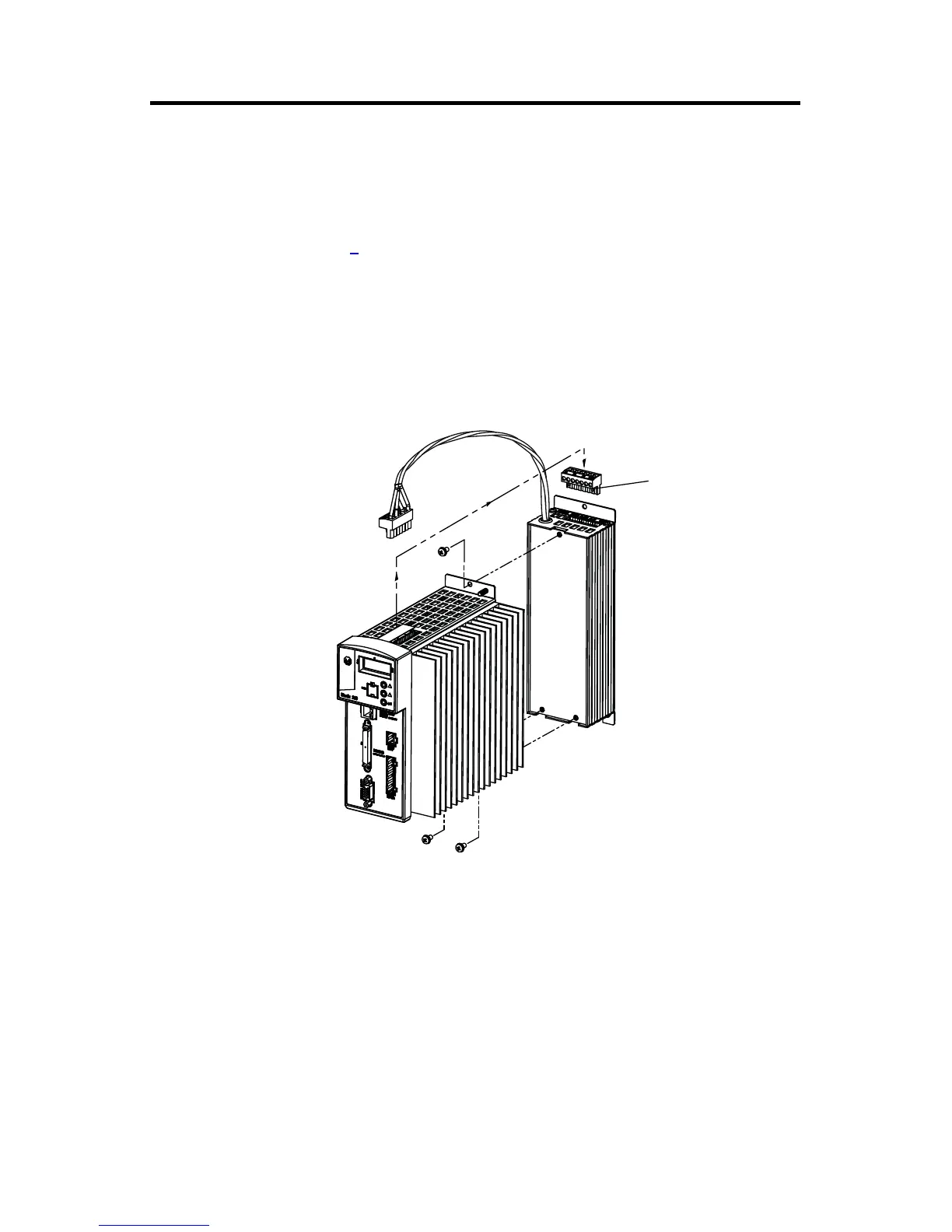

Install the AC Line Filter (rear-mount)
The following steps apply to the installation of your AC line filter, catalog numbers 2097-F4,
2097-F5, and 2097-F6.
1. Use Figure 3 on page 7
to determine the cabinet space required to install your
rear-mount AC line filter.
Rear-mount AC line filters require additional cabinet depth; adjust cabinet as necessary.
2. Mount the AC line filter to the panel with three M4 x 0.7 steel machine screws and
torque to 1.1 N•m (9.8 lb•in).
3. Mount the drive to the AC line filter with three M4 x 0.7 steel machine screws and
torque to 1.1 N•m (9.8 lb•in).
4. Mount the drive and AC line filter assembly on the panel.
Input Power
Allen-Bradley 2097-F1
