6 Bulletin 2097 AC Line Filters
Publication 2097-IN003D-EN-P - November 2011
Wire the AC Line Filter
Connect the AC line filter as shown in these examples. Refer to the System Design for Control
of Electrical Noise Reference Manual, publication GMC-RM001, for proper high-frequency
(HF) bonding techniques to improve overall system performance.

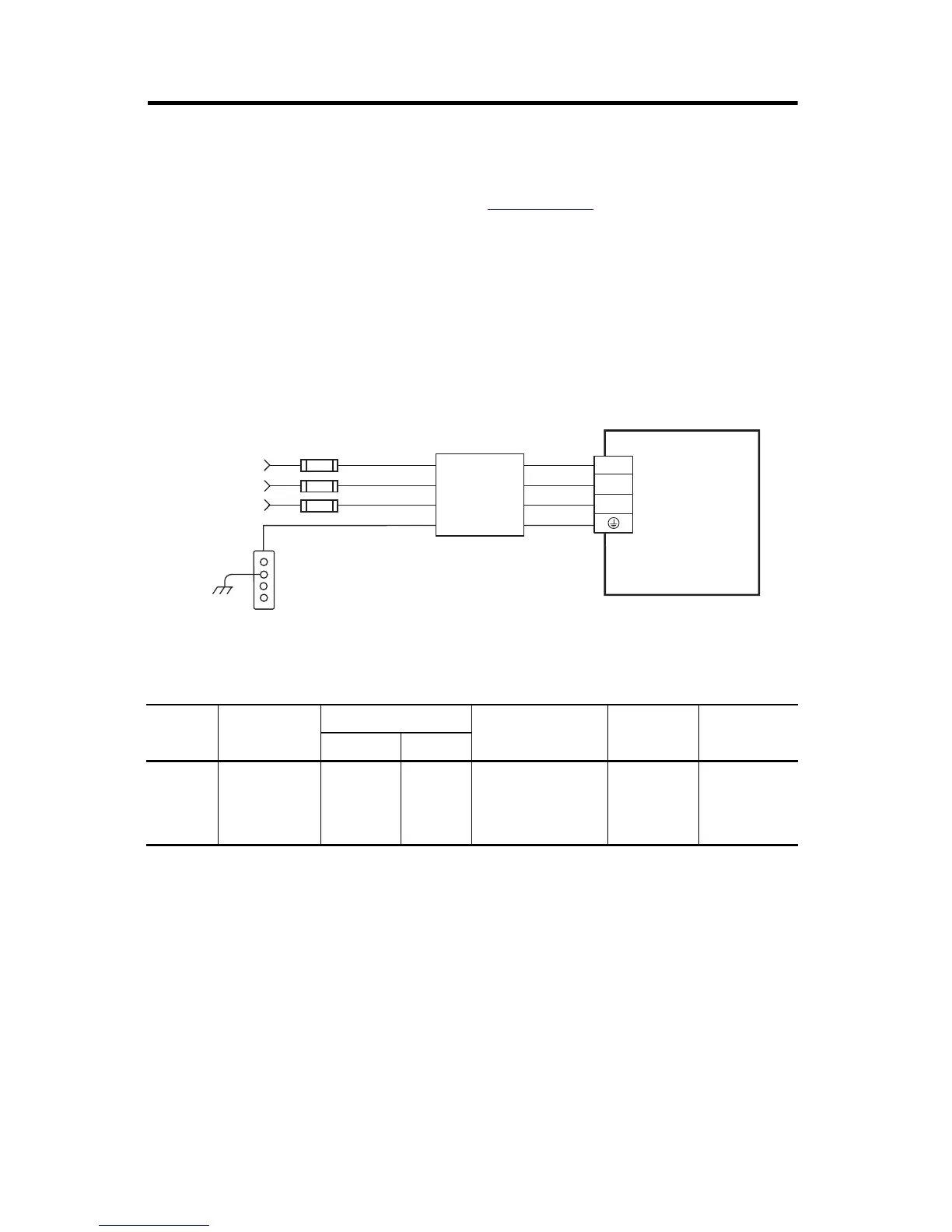

Figure 1 Wiring Example for the AC Line Filter
Replacement connector sets (catalog number 2097-CONN1) are available. Sets include
general purpose power input (IPD) header, back-up power (BP) header, shunt resistor and DC
bus (BC) header, motor power (MP) header, and safe torque off (STO) header.
IPD Connector Wiring Specifications
Cat. No. Input Power
Connects to Terminals
Recommended
Wire Size mm
2
(AWG)
Strip Length
mm (in.)
Torque Value
N•m (lb•in)
Pin Signal
2097-F1
2097-F2
2097-F4
2097-F5
2097-F6
240/480V AC
IPD-1
IPD-2
IPD-3
IPD-4
PE
L1
L2
L3
14 AWG (2.5mm
2
) 7 (0.28) 0.5 (4.5)
L3
L2
L1
IPD-4 (L3)
IPD-3 (L2)
IPD-2 (L1)
IPD-1 (PE)
L3’
L2’
L1’
PE
240/480V
Bonded Cabinet
Ground Bar
AC Line Filters
Input Fusing
Line, AC Mains
Kinetix 300 Drive
Input Power (IPD)
Connections
Line Load
Ground Terminals
