Motion Configuration Instructions
316 Rockwell Automation Publication MOTION-RM002H-EN-P-February 2018

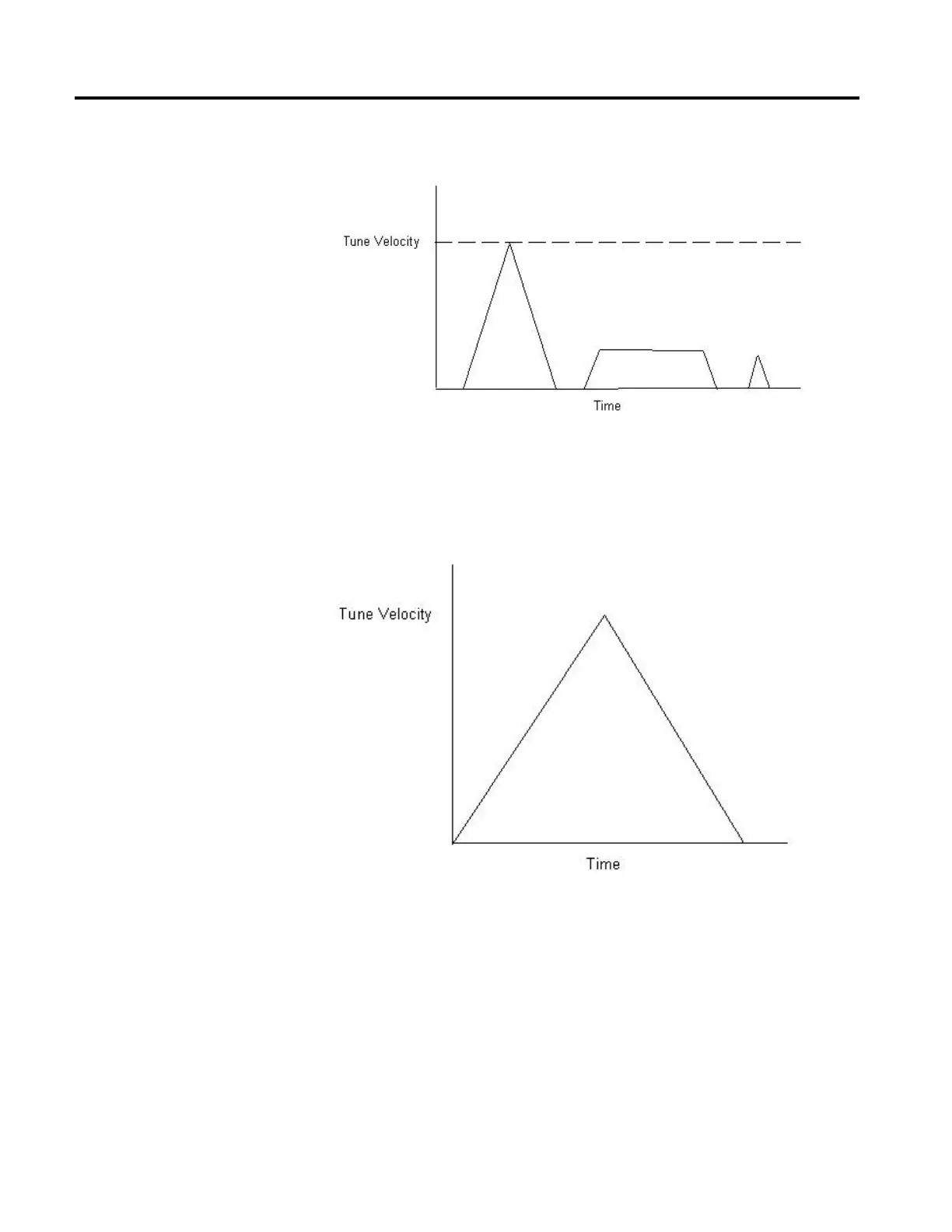

Tuning Velocity Profile when True
If the External Vel Servo Drive configuration bit parameter is FALSE, indicating
interface to an external torque servo drive, only one pulse is applied to the axis.
The tuning velocity profile is shown below.
Tuning Velocity Profile when False
