Allen-Bradley B Series User Manual

12 Rockwell Automation Publication 1794-IN082D-EN-P - January 2019
FLEX I/O EtherNet/IP Adapters
Connect Wiring

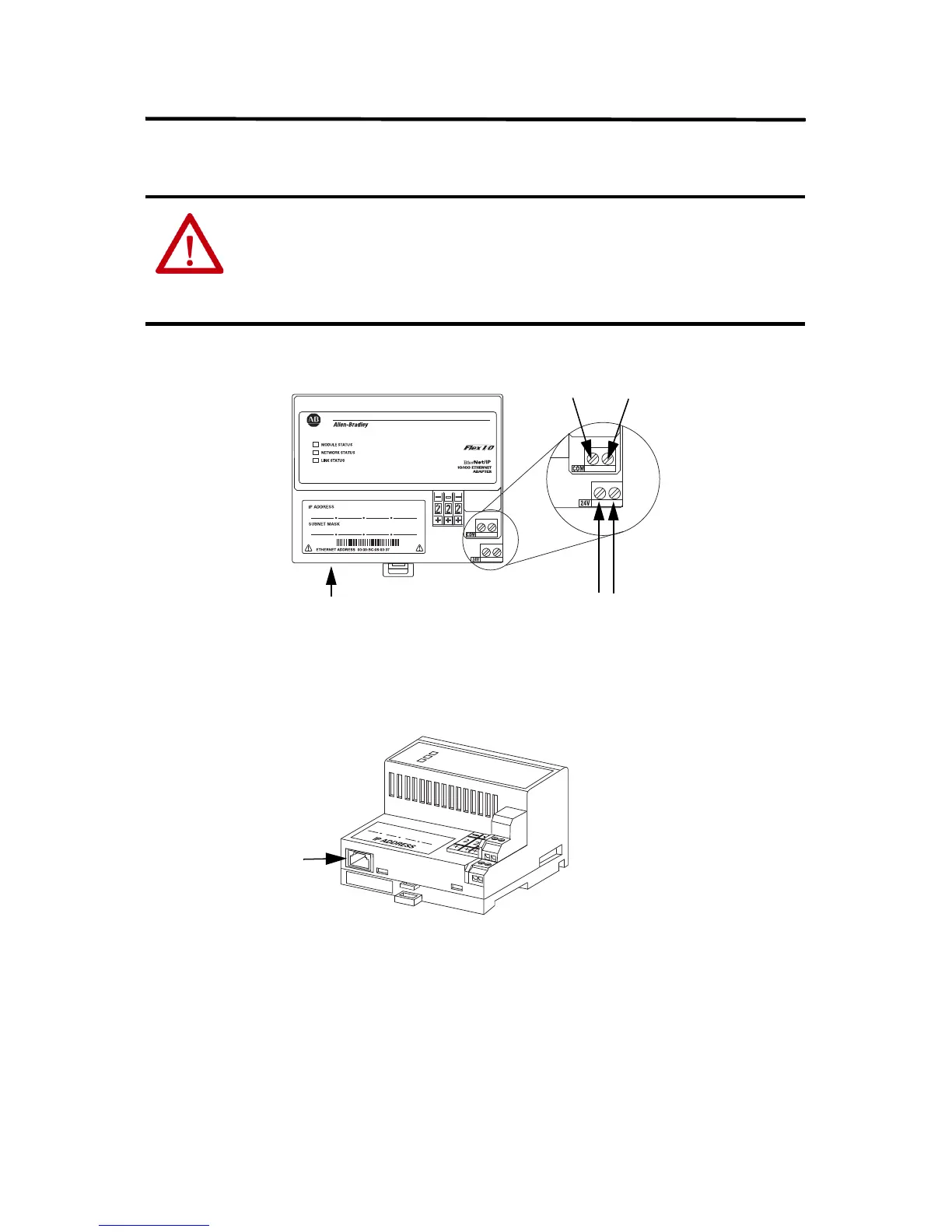

1. Connect the Ethernet network cable to the RJ45 connector (A) on the
underside of the adapter.
WARNING: If you connect or disconnect the communication cable with power
applied to the adapter or any device on the network, an electrical arc can occur.
This could cause an explosion in hazardous location installations. Be sure that
power is removed or the area is nonhazardous before proceeding.
1794-AENT/B
A
BD
C
E
31246-M
A
31247-M
