y Single-Loop, High Value, ON/OFF, or Analog Output Controllers
y 1/8 DIN (Bulletin 900-TC8), 1/16 DIN (Bulletin 900-TC16), and 1/32 DIN (Bulletin 900-TC32)
Sizes
y Various Sensor Inputs
– Thermocouple
– Platinum RTD
– Non-Contact Temperature Sensor
– Analog Input 4...20 mA, 0...20 mA, 1...5, 0...5 or 0...10V DC and 0…50 mV (TC8 and TC16)
y Auto-Tuning and Self-tuning Available to Simplify Startup
y Heating, Cooling, or Heating/Cooling Control Available
y Manual Output Control (TC8 and TC16)
y High Visibility 4-digit, 11-segment LED Displays, Easy to See in High Levels of Ambient Light
y Integral Keypad with Tactile Feedback for Setup and Modification of Parameters
y Security Modes/Levels
y Event Input (TC8 and TC16) for Multiple SP Selection, Controller RUN/STOP and Auto/Manual
Mode Change
y Water-Resistant Construction UL Type 4X or IP66 for Indoor Use
y On-Board Wiring Diagrams to Simplify Startup
y cULus, CE
Visit our website: www.ab.com/catalogs
Bulletin 900-TC
Single-Loop Temperature/Process Controller
4
Product Overview/Quick Selection
Bulletin
900-TC32
Bulletin
900-TC16
Bulletin
900-TC8
Bulletin 900 — Temperature/Process Controllers
Product Selection...... 5
Accessories..................
General Functions .....
7
8
Inputs Ranges............. 10
Specifications.............. 12
Approximate
Dimensions................... 15
Wiring Terminals......... 17
Option Units................. 19
Installation .................... 20
Controller Config.
from Keypad................ 22

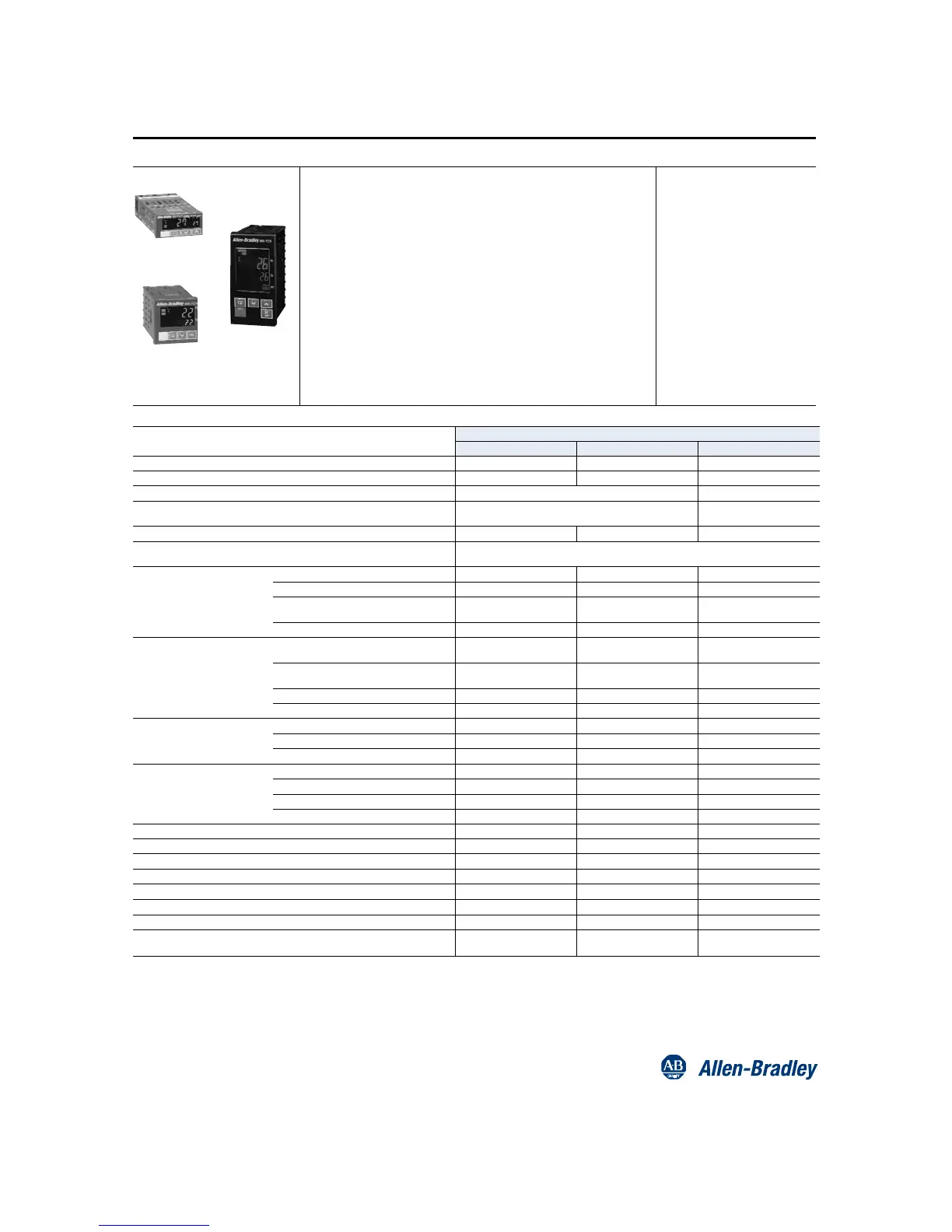

Bulletin 900-TCx Quick Selection
Bulletin 900 — Temperature/Process Controllers
Item
Bulletin No.
900-TC8
900-TC16
900-TC32
Dimensions 48 x 96 x 78 mm 48 x 48 x 78 mm 48 x 24 x 100 mm
Alphanumeric Display Types PV, SV, MV PV, SV PV, SV
Sample Rate 250 ms 500 ms
Indication Accuracy
Thermocouple: ±0.3% of PV; RTD: ±0.2% of PV;
Analog: ±0.2% of F.S.
±0.5% PV +1 digit max.
Heating/Cooling Control Mode Yes Yes Yes
Control Method
ON/OFF or 2-PID (auto-tune and self-tune) with time proportioning ON/OFF outputs
or Analog Output (900-TC8 & 900-TC16)
Inputs
Thermocouple Input and 0...50 mV Yes Yes Yes
Platinum Resistance Temperature Sensor Yes Yes Yes
Analog Input 0...20 mA, 4...20 mA,
1...5V DC, 0...5V DC, 0...10V DC
Yes Yes No
Non-Contact Temperature Sensor Yes Yes Yes
Control
Output
1 Type
ON/OFF Relay Output (Electro-
Mechanical)
Yes Yes Yes
ON/OFF Voltage Output for Solid-State
Relay
Yes Yes Yes
ON/OFF Triac (AC Only) No Yes No
4…20 and 0...20 mA (DC) Analog Yes Yes No
Control
Output
2 Types
ON/OFF Relay
No a No a No a
ON/OFF Triac
Yes
³
No No
ON/OFF Voltage SSR
Yes
³
Yes ‡ No
Maximum Number of Auxiliary/
Alarm Outputs
None No No
Yes7
1 Output No No Yes
2 Outputs No Yes No
3 Outputs Yes Yes No
RS-232C Communications Function Yes § No No
RS-485 Communications Function Yes § Yes §
Yes
³
Event Input Yes § Yes§ No
Run/Stop via Keypad or Interrupts Yes Yes Keypad
Multiple SP Selection via Keypad or Interrupts
Yes ♣ Yes ♣
Keypad
Manual Output Control via Keypad or Interrupts
Yes ♣ Yes ♣
No
Transfer Output Function (Requires Analog Output) Yes Yes No
Heater Burnout, Heater Overcurrent or Heater Short Alarm (Single or 3-
Phase)
Yes Yes
No
7 When RS-485 communication is required.
§ Requires an option unit. Refer to Option Unit table on page 6
♣ Interrupts require an event input option unit. Refer to Option Unit table on page 6.
³ Determined by controller catalog number.
a One of the controller alarm relays can be used as a second control output (i.e., a heating and cooling application).
‡ Requires an option unit with an SSR output.
Requires addition of hardware. One current transformer (900-CT1 or 900-CT2) for single-phase and two current transformers for 3-phase detection. For the
900-TC16, the appropriate option unit must be purchased. Refer to Option Units in Product Selection on page 6.
